| Brand | inShareplus |
| Included Components | 5 * female Connector |
| Mounting Type | Wall Mount |
| Wattage | 24 watts |
| Number of Items | 5 |
| Material | Plastic(ABS + PS) |
| Power Source | Ac Mains |
| Current Rating | 1 Amps |
| Manufacturer | inShareplus |
About this item
- Input &Output: 24v 1A dc power supply input is: AC100-240V 50/60HZ; output: DC 24 volt 1A 24 Watt. With 5.5x2.1mm DC female connector. Please pay attention to the positive (+) negative (-) pole of the power supply when connecting the light
- Safety protection design: DC 24v power supply shell is made of insulating material, and the led driver is built with overvoltage, overcurrent, overload, short circuit protection, etc., to ensure your power safety
- Wide Application: Convert AC 110V to DC 24V, 24V 1A 24W DC power supply is suitable for most 24V DC (0 to 1Amp) products. Widely use for LED strip lights, LED display, wireless routers, switch, security camera, Audio/Video

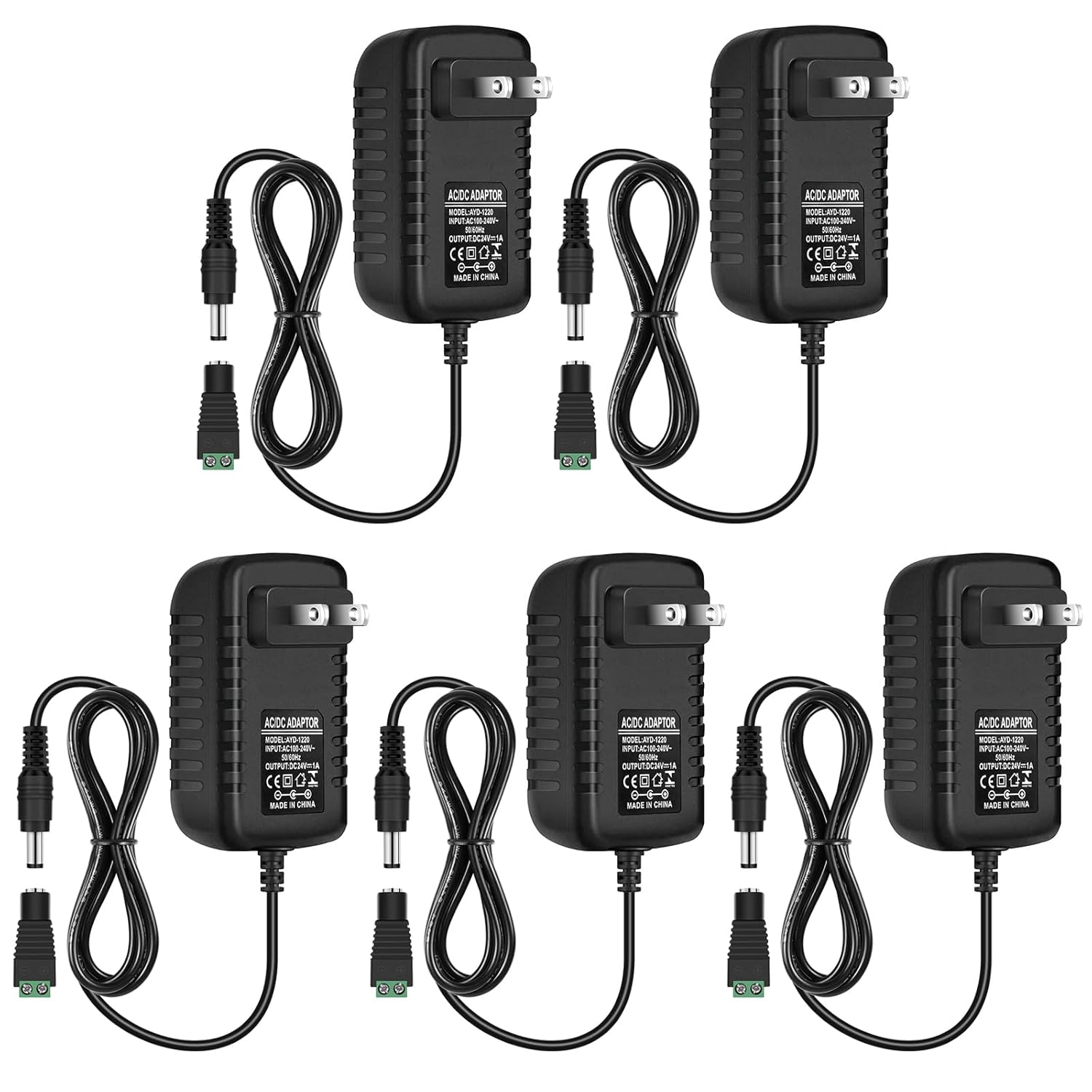

- Package Include: 5 x 24V 1A 24W ac to dc led power supply transformer with 3.3ft power cord, 5 x 5.5/2.1 DC female barrel connector to screw adapter. You can contact us anytime if you have any questions
- Kindly Note: Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage（24W) of this ac to dc adapter; Suggestion:Used should not exceed 80% of the 24v power supply
| Brand | inShareplus |
|---|---|
| Built-In Media | 5 * female Connector |
| Model Number | 5 Pack 24V 1A 24W |
| Manufacturer | inShareplus |
| Mount Type | Wall Mount |
|---|---|
| Wattage | 24 watts |
| Power Source | Ac Mains |
| Current Rating | 1 Amps |
| Number of Items | 5 |
|---|
| Enclosure Material | Plastic(ABS + PS) |
|---|
Product details
- Package Dimensions : 8.31 x 5.63 x 2.2 inches; 1.08 Pounds
- Item model number : 5 Pack 24V 1A 24W
- Date First Available : August 26, 2024
- Manufacturer : inShareplus
- ASIN : B0D8HXT9G4
- Country of Origin : China
Product Description
inShareplus 24v 1A LED Power Supply, 24W DC Power Adapter, 100-240V AC to 24V DC Transformer for LED Strip Lights
- inShareplus 24V 1A 24W DC LED power supply is suitable for most 24V DC (0 to 1Amp) products.
For example: led light strip; Router; led table lamp; led neon sign; 24V CCTV security camera; Monitors and many more 24V DC products
- The 24V 1A driver power supply keeps you and your family safe when you use it. Because it has four protective functions:
- Overpower Protection
- Overvoltage Protection
- Overcurrent Protection
- Short-cuircuit Protection
- Over Temperature Protection

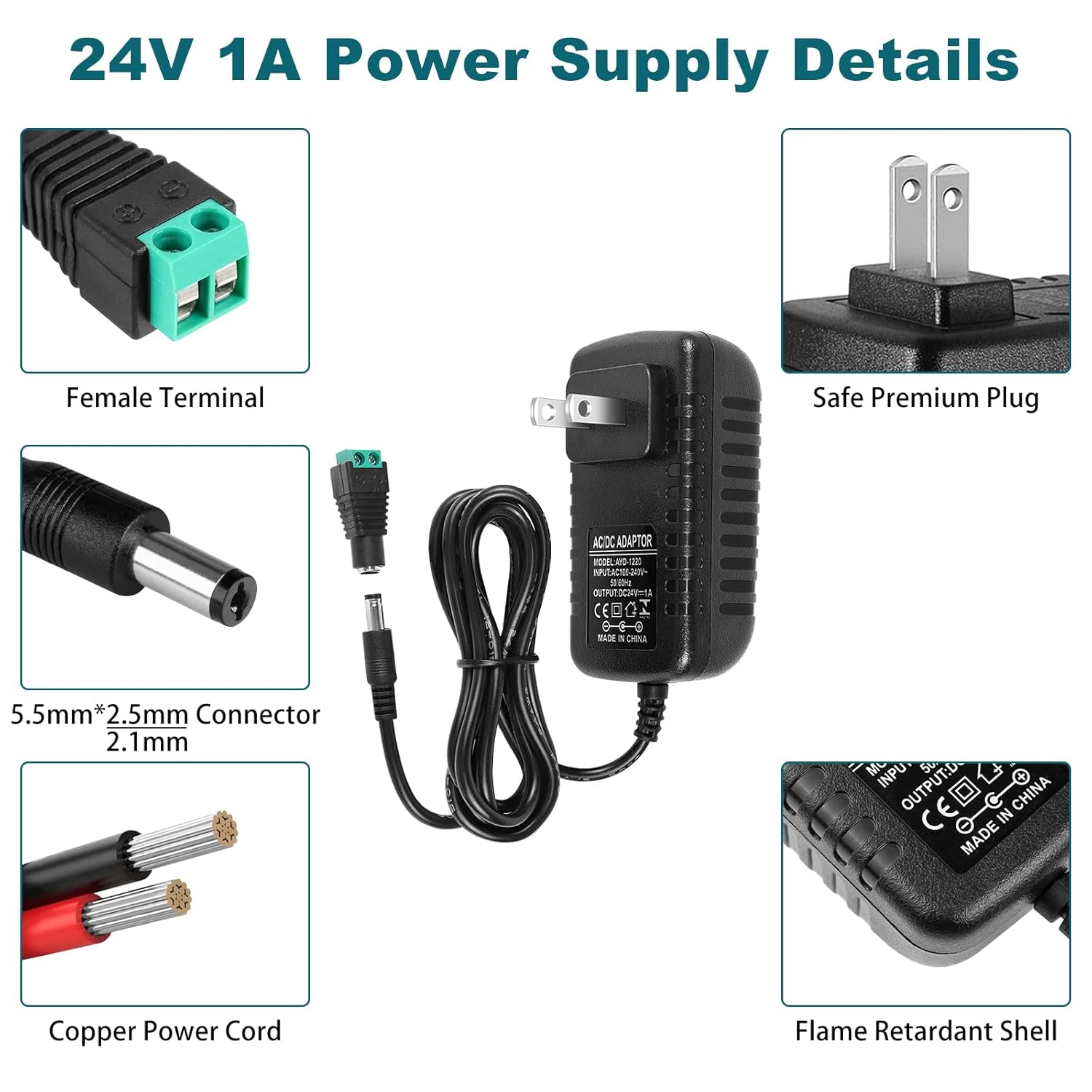

24V dc power supply with 5.5/2.1mm DC Female Barrel Connector, can be very good contact with your product
How to connect 24 volt DC power supply to your product
- Please make sure your product is 24 volt 24W. The power of your product is too high, so that our power supply can not make your product work.
- Connect with the positive and negative terminals of the DC female connector, and the power can be your product work.(there will be obvious positive and negative electrode marks on the above)
- 24V 1A power supply is suitable for indoor use only. Avoid touching water if using outdoors and be aware of rainy days.
100% full load burn-in test
- 24 volt 1Amp 24W LED power supply adapters takes 100% full load burn-in test.
- Safe and stable output current
Product Specifications:

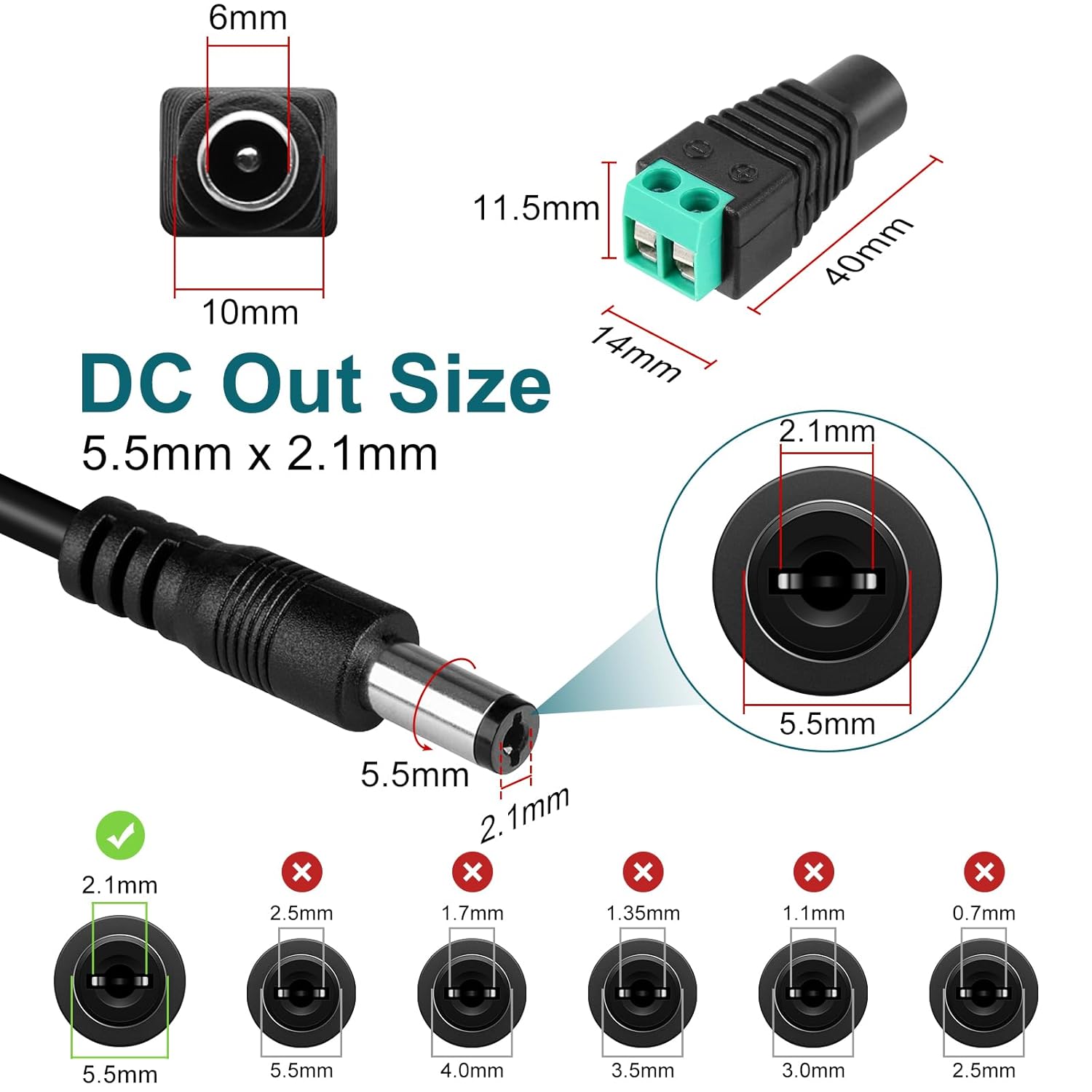

- DC Jack Type: 5.5 * 2.1mm male
- Plug Type: US two prong
- Input Voltage:AC 100-240V
- Input Frequency Range: 50/60Hz
- Output Voltage: DC 24V
- Output Current: 1Amp
- Output Voltage: 24 Watt

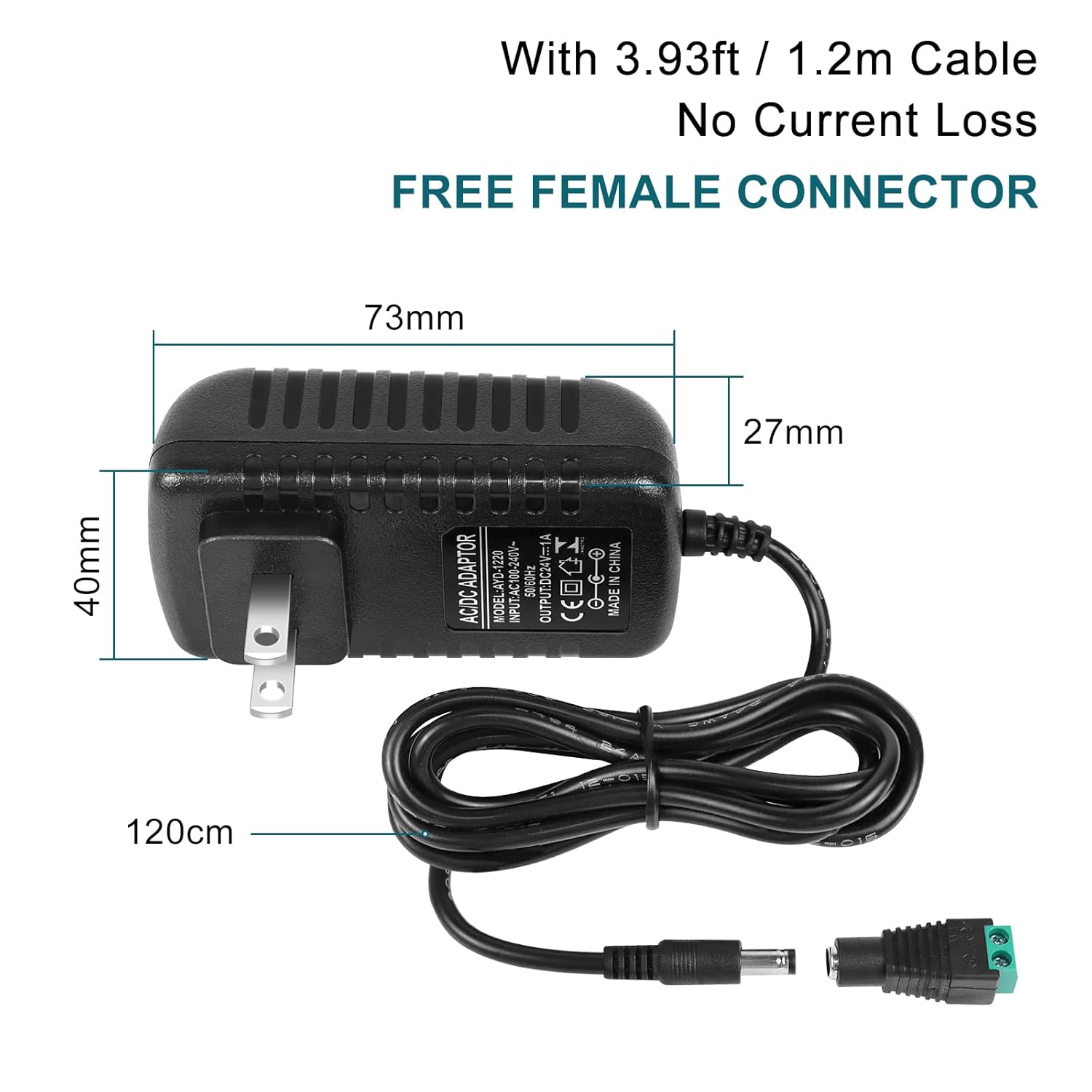

- Wire Length: 20 Awg, 100cm long at outlet end.
Suitable for most 24V DC products
- This item is power adapter (transformer) of DC 24 volt Low Voltage, use for LED Strip Light, CCTV Camera and so on.
- Please be kindly informed that the total wattage of LED strip lights or other items should not exceed the max wattage (24W) of this adapter.
- And we suggest it to be de-rated 10%-20% when using to prevent overheating.
24V 1A ac to dc power supply with 5.5/2.1mm DC Female Barrel Connector, can be very good contact with your product
- Don't open or modify the led power supply
- Please leave children, kids far away from high voltage power source
- Please use it under professional electrician's guides
What's in the box
5 * female Connector
