| Manufacturer | inShareplus |
|---|---|
| Part number | 22AWG-2C-10M |
| Item Weight | 180 g |
| Package Dimensions | 17.5 x 15.5 x 2.8 cm; 180 g |
| Manufacturer reference | 22AWG-2C-10M |
| Size | 10M/32.8FT |
| Colour | Red, black, yellow |
| Style | 2 x 0.3 mm² (22AWG-2C) |
| Material | Copper |
| Voltage | 3E+2 Volts |
| Included Components | Electric Wire |
| Batteries Required? | No |
1
/
of
8
inShareplus AMZ DE

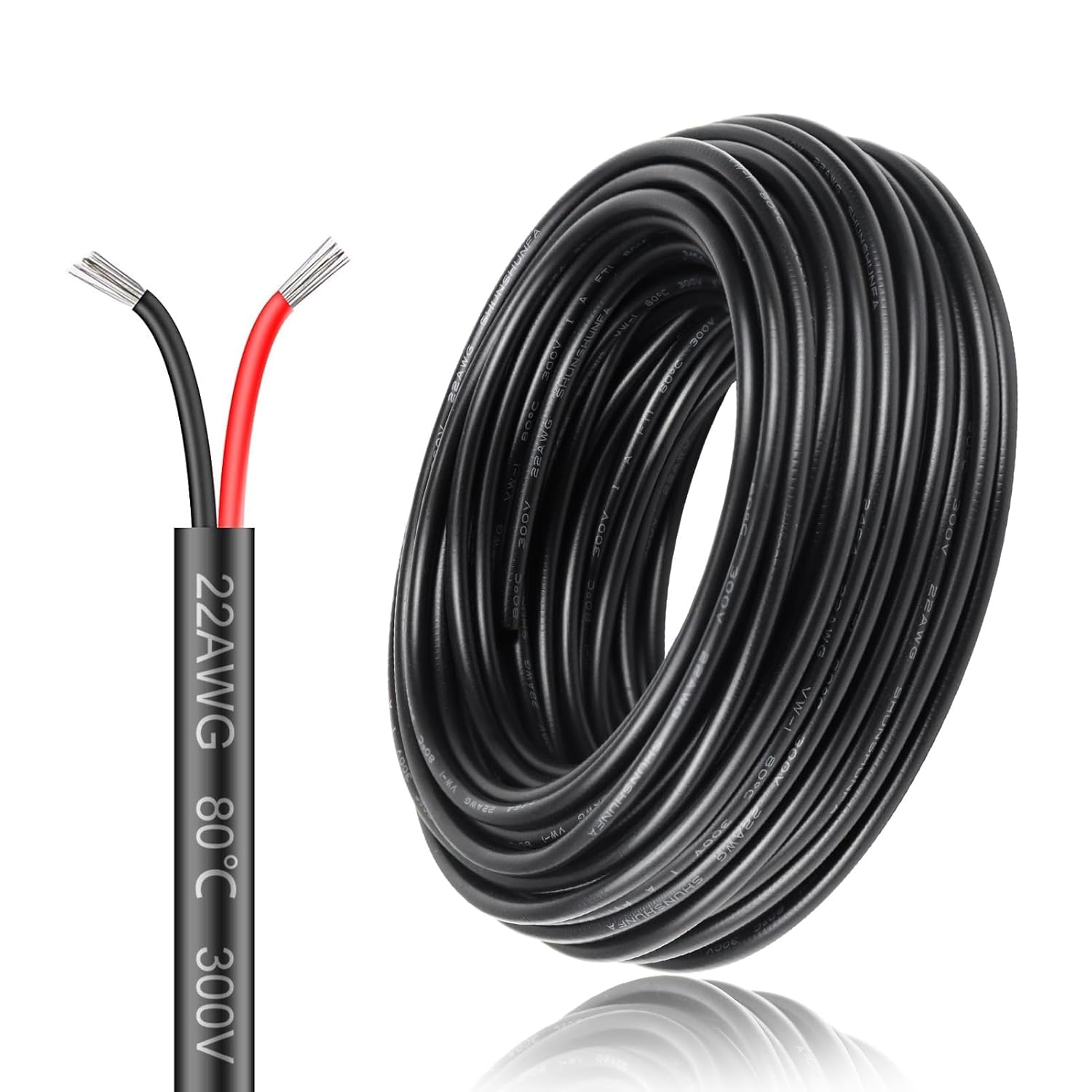

inShareplus 22AWG 2 x 0.3 mm² 10 m Electric Cable 2-Core Cable, 5V/12V/24V Underground Cable Tinned Copper Cable, 300V Flexible and Soft Power Cable High Temperature Resistance Extension Cable 10 m
inShareplus 22AWG 2 x 0.3 mm² 10 m Electric Cable 2-Core Cable, 5V/12V/24V Underground Cable Tinned Copper Cable, 300V Flexible and Soft Power Cable High Temperature Resistance Extension Cable 10 m
Regular price
$17.47 USD
Regular price
Sale price
$17.47 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| Colour | Red, black, yellow |
| Brand | inShareplus |
| Material | Copper |
| Number of cable strands | 17 EU |
| Voltage | 3E+2 Volts |
About this item

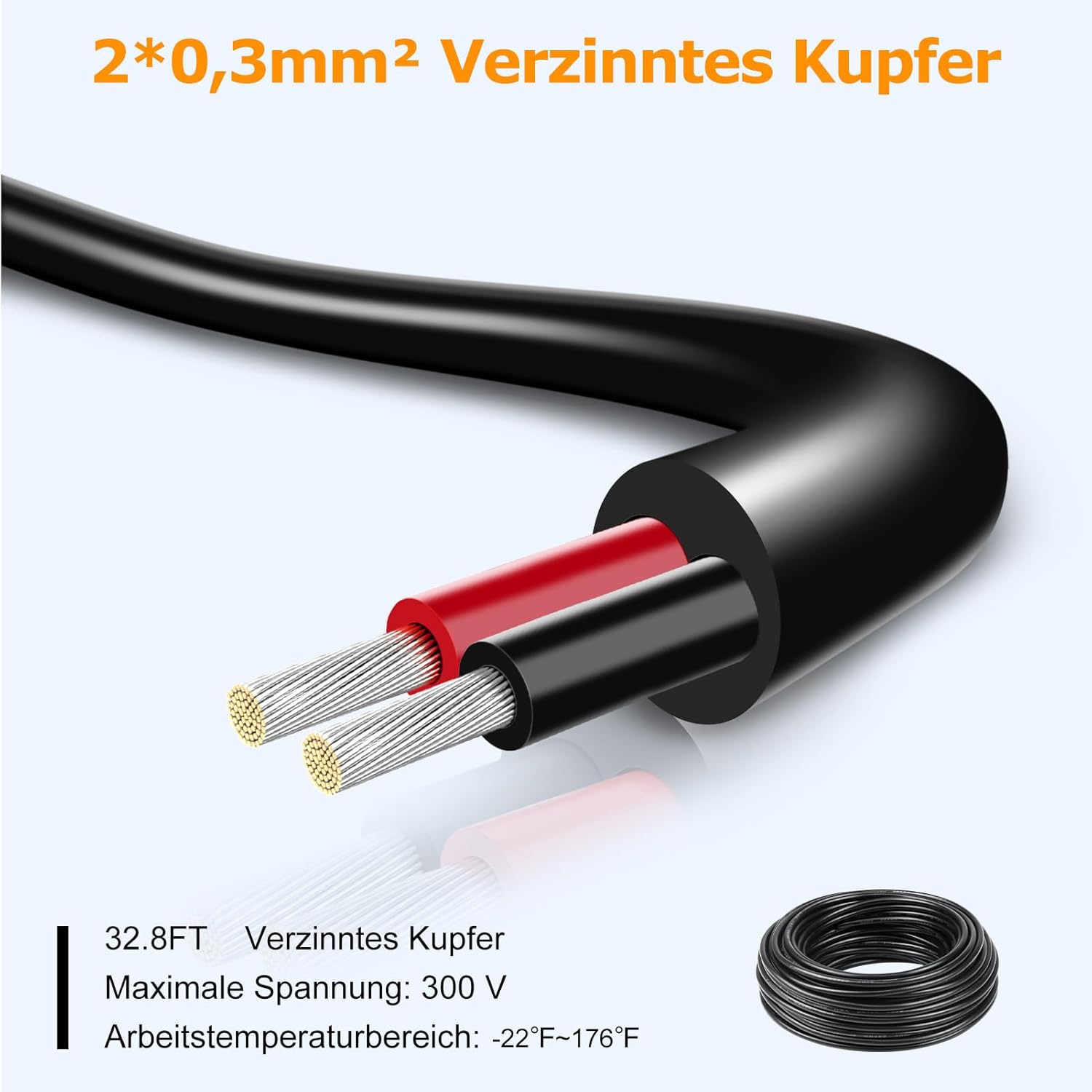

- Specification: 22AWG 2 core cable (red, black and yellow); each line is made of 17 tinned copper wires; for use in low voltage 5V/12V/24V devices; rated voltage: 300V; maximum current: 2.2A

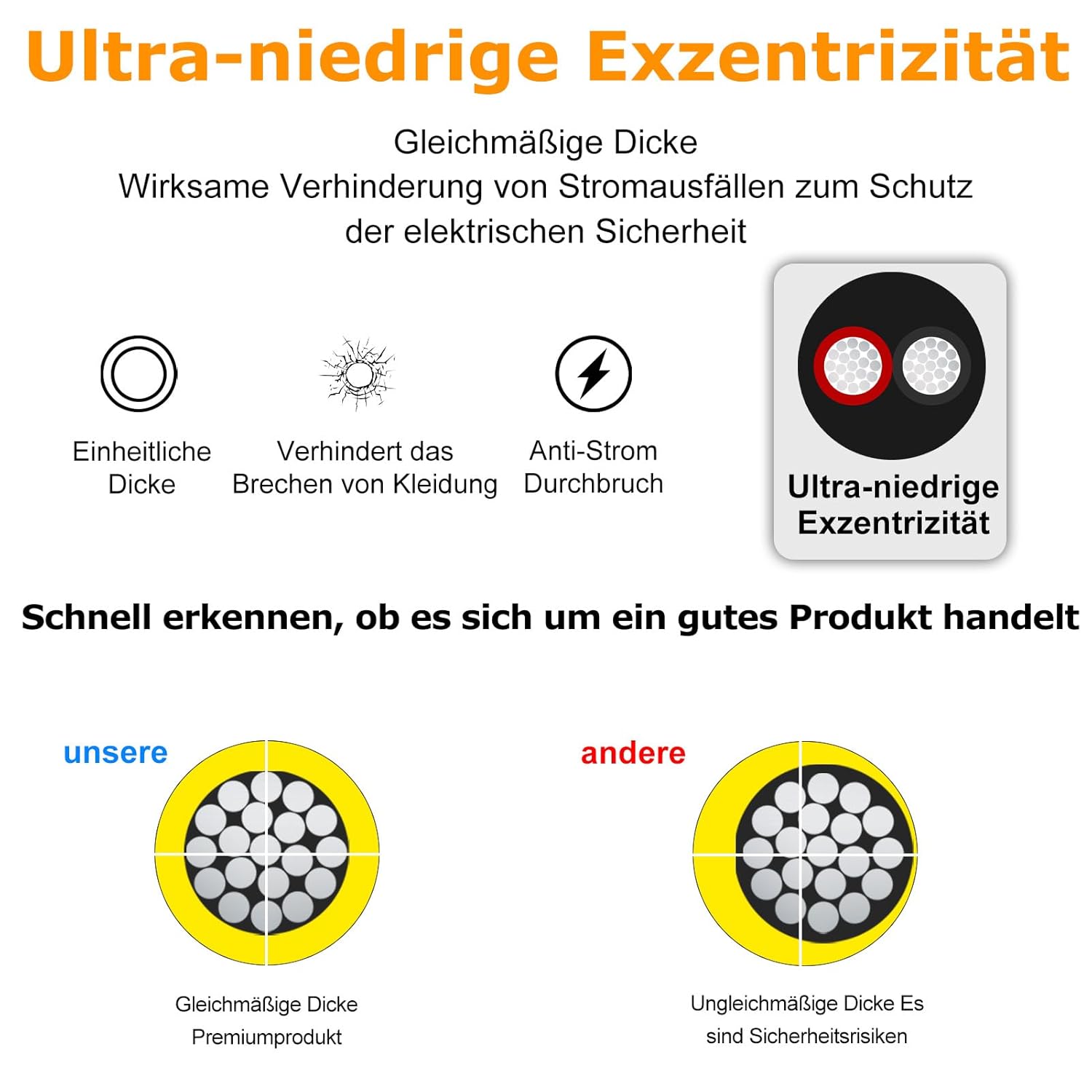

- High quality: 2-core cable with high-quality PVC insulation; water and moisture resistant as well as highly flexible; operating temperature up to 80°C / 176°F; low eccentricity and uniform wall thickness prevent power outages and sparks

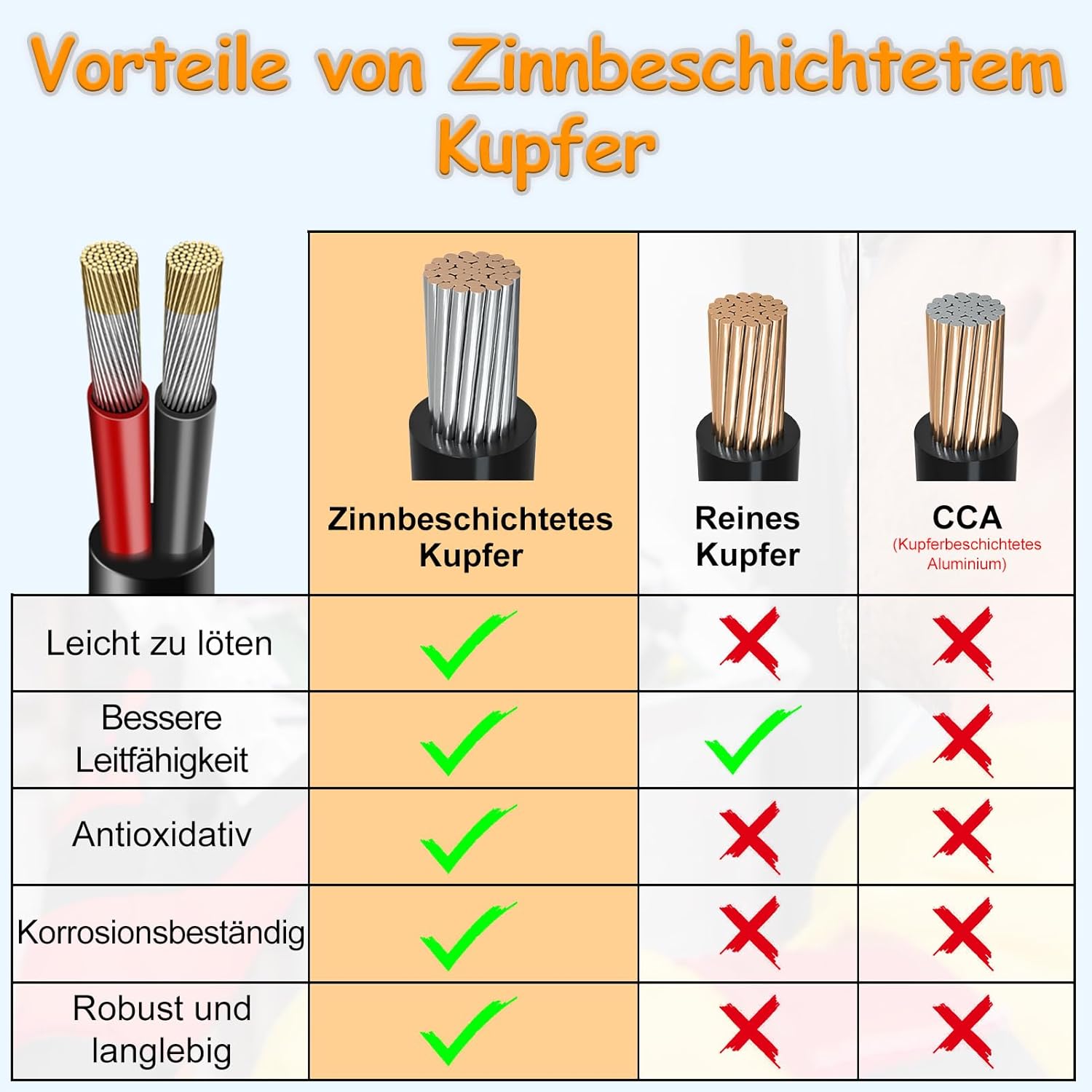

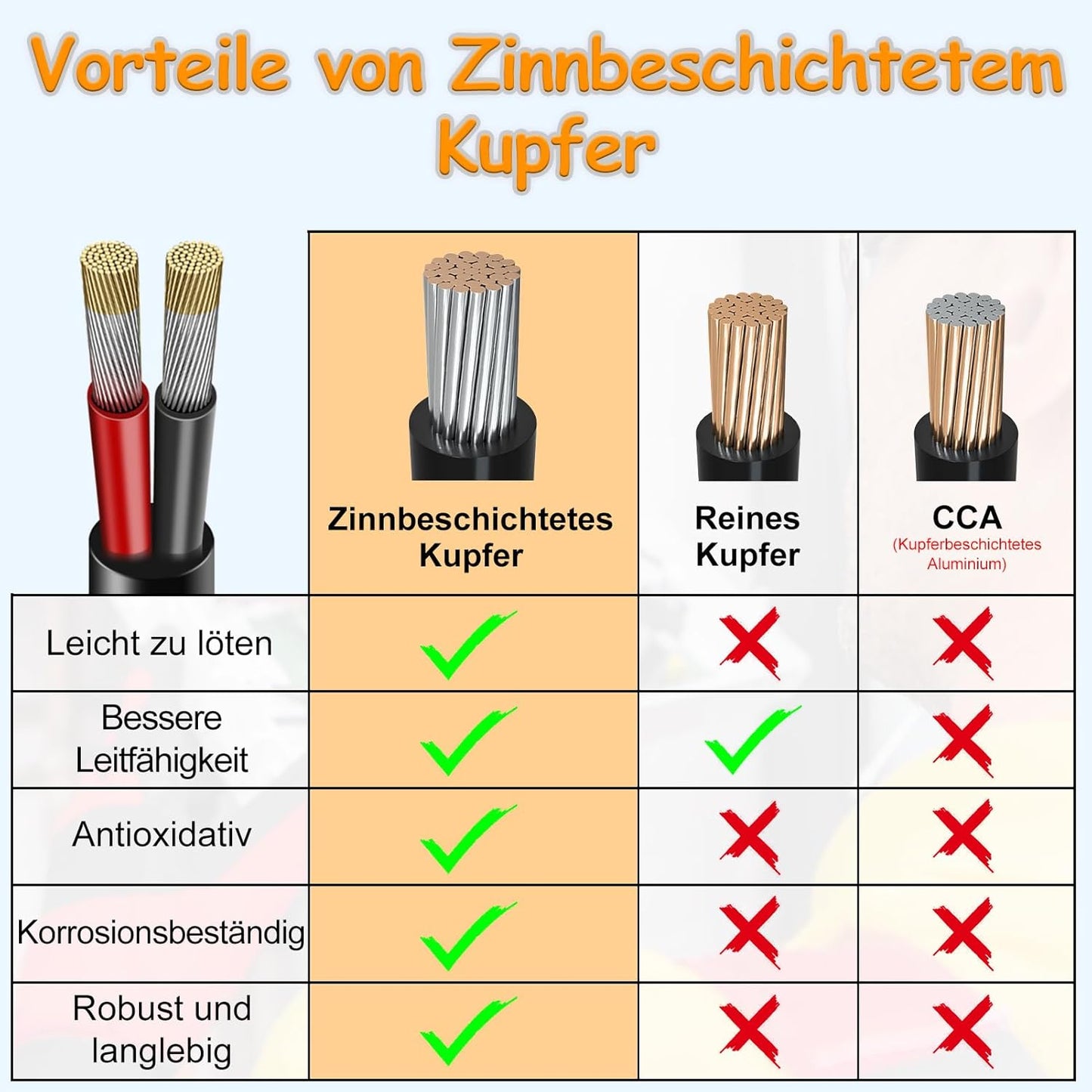

- Durable: extension cable 10 m made of high-purity, oxygen-free copper with tin plating; excellent conductivity, anti-aging, acid and alkaline resistant; stable in use and long service life
- Easy to use: cable 12v is flexible, easy to strip, solder and cut; stable connection by simply soldering the wires
- MULTI-PURPOSE Ideal for wiring low voltage electronics; Suitable for LED strip, lighting, household appliances, motor cables, digital ranges and gauges
Product information
Technical Details
Additional Information
| ASIN | B0DJQXD5VZ |
|---|
What's in the box?
Electric Wire
Product description

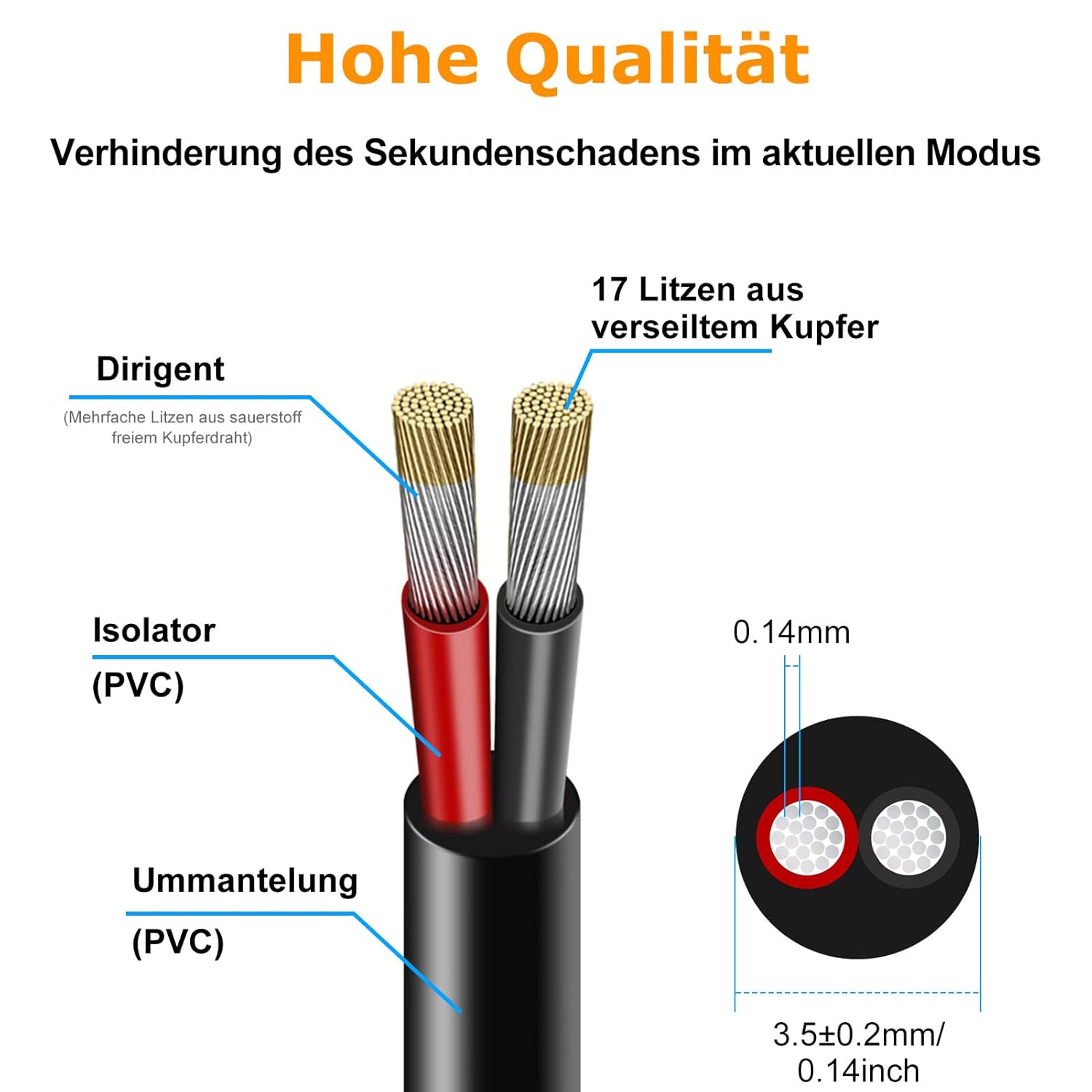

Wire thickness: 22AWG.
Number of wires: 2 conductors.
Outer diameter: 3.5 mm.
Nominal voltage: 300 V.
Maximum current: 2.2 A.
Temperature range: -30°C to +80°C.
Insulation/jacket material: PVC.
Conductor material: tinned stranded copper
Rated voltage: Please make sure the rated voltage of the electronic line meets the requirements of the device used.
Rated Current: Choose a suitable electronic line that ensures that its rated current does not fall below the power requirements of the device.
Line cross section: the larger the cross section, the higher the current carrying capacity. Choose the appropriate cross section based on the specific application scenario.
