| Manufacturer | inShareplus |
|---|---|
| Part number | 20AWG-3C-10M-DE |
| Item Weight | 450 g |
| Package Dimensions | 18.5 x 17.8 x 4.1 cm; 450 g |
| Manufacturer reference | 20AWG-3C-10M-DE |
| Size | 10 Meter |
| Colour | Red, black, yellow |
| Style | 3 x 0.5 mm² (20AWG-3C) |
| Material | Copper |
| Voltage | 3E+2 Volts |
| Included Components | Power supply |
| Batteries Required? | No |
1
/
of
8
inShareplus AMZ DE
inShareplus 20AWG 3 x 0.5 mm² 10 m Electric Cable 3-Core Cable, 5V/12V/24V Underground Cable Tinned Copper Cable, 300V Flexible and Soft Power Cable High Temperature Resistance Extension Cable 10 m
inShareplus 20AWG 3 x 0.5 mm² 10 m Electric Cable 3-Core Cable, 5V/12V/24V Underground Cable Tinned Copper Cable, 300V Flexible and Soft Power Cable High Temperature Resistance Extension Cable 10 m
Regular price
$23.30 USD
Regular price
Sale price
$23.30 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| Colour | Red, black, yellow |
| Brand | inShareplus |
| Material | Copper |
| Number of cable strands | 4.5 UK |
| Voltage | 3E+2 Volts |
About this item

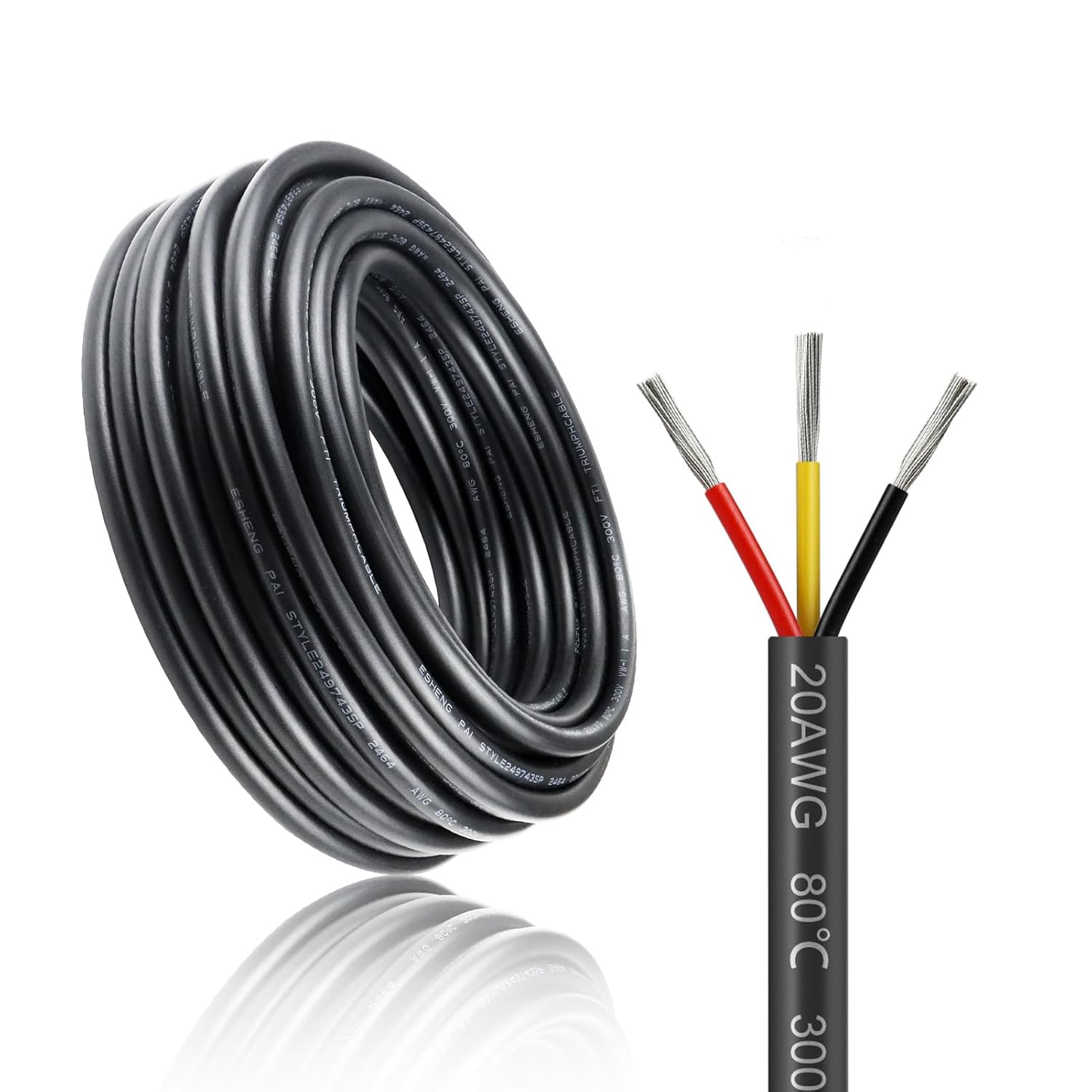

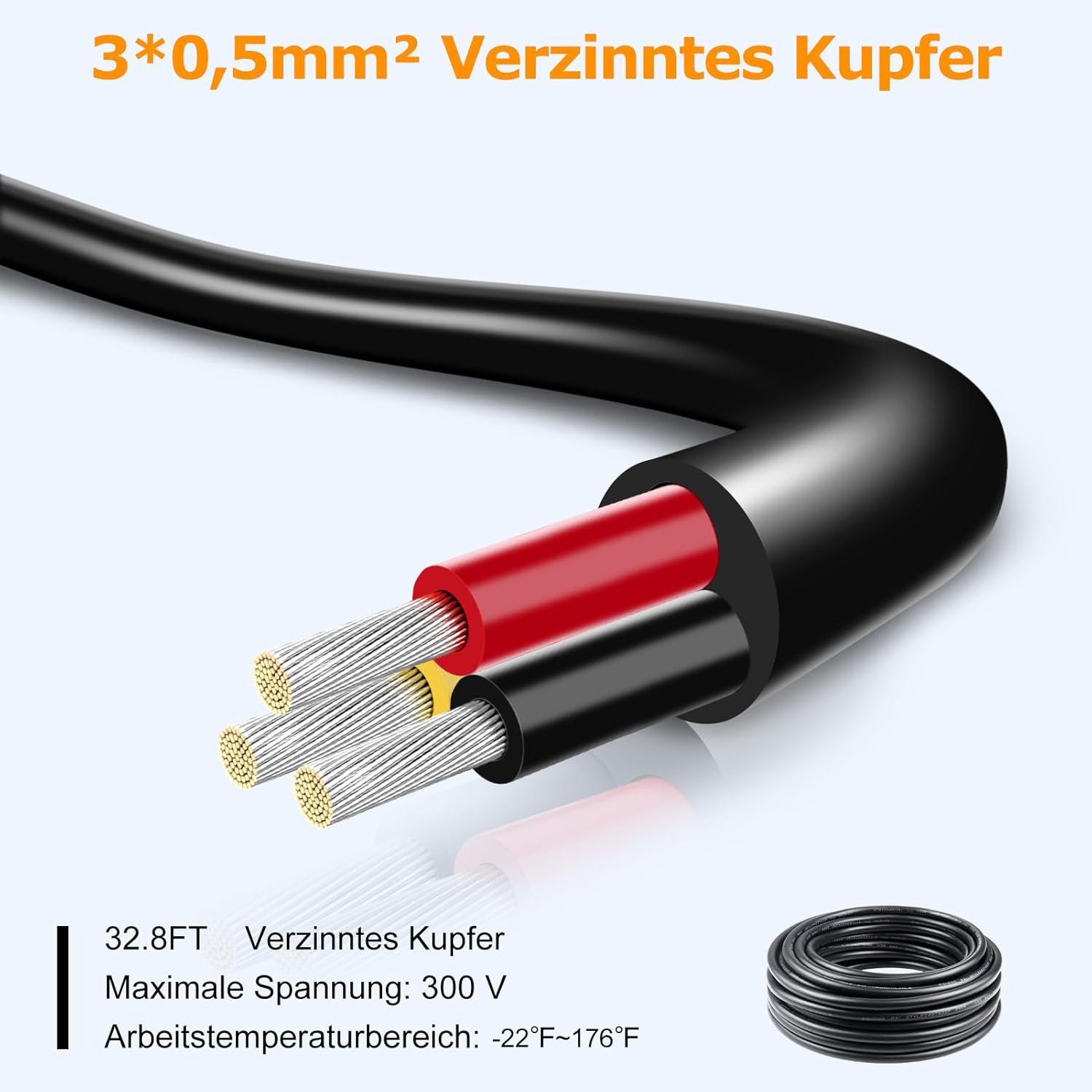

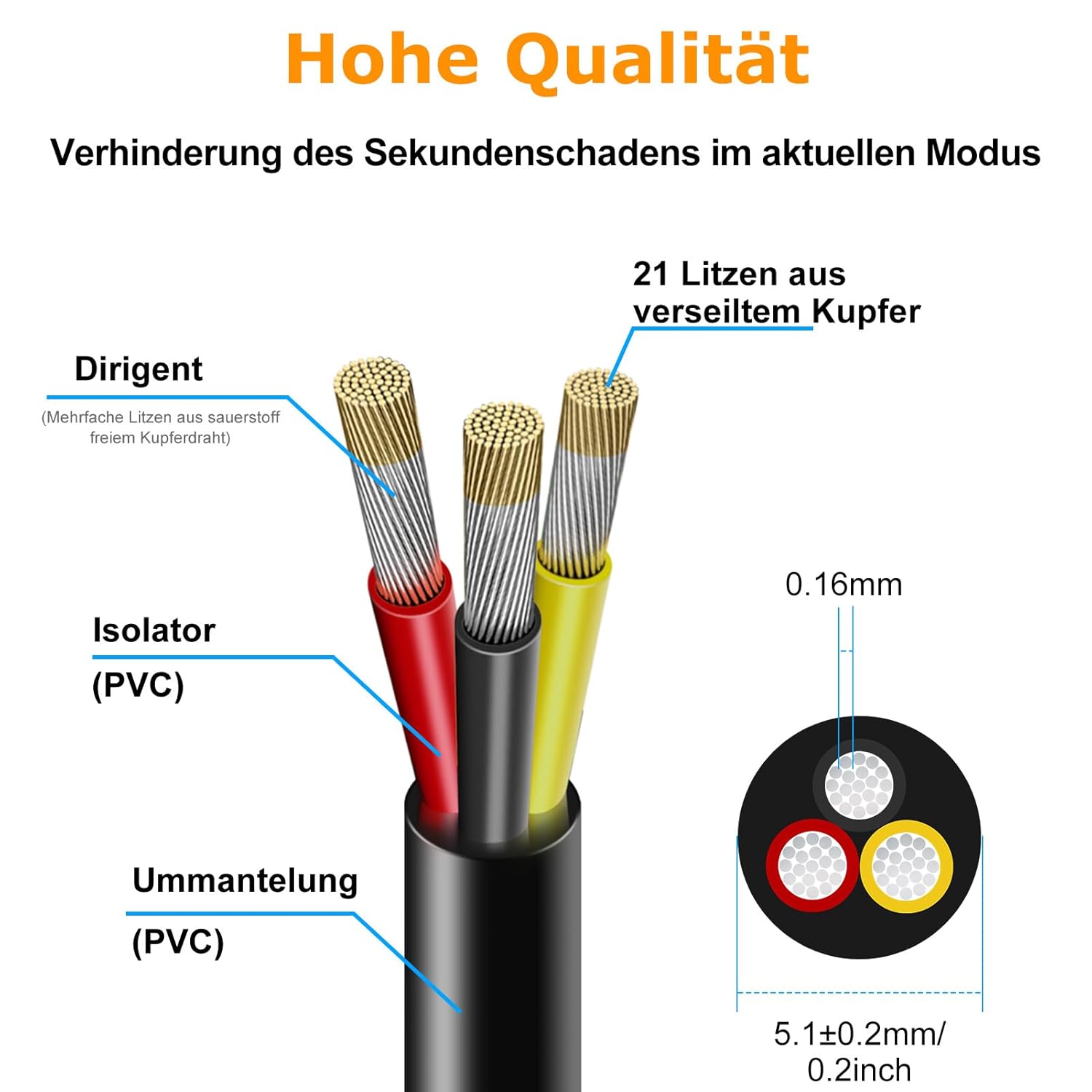

- Specification: 20AWG 3-core cable (red, black and yellow); each line is made of 21 tinned copper wires; for use in low voltage 5V/12V/24V devices; rated voltage: 300V; maximum current: 3.7A

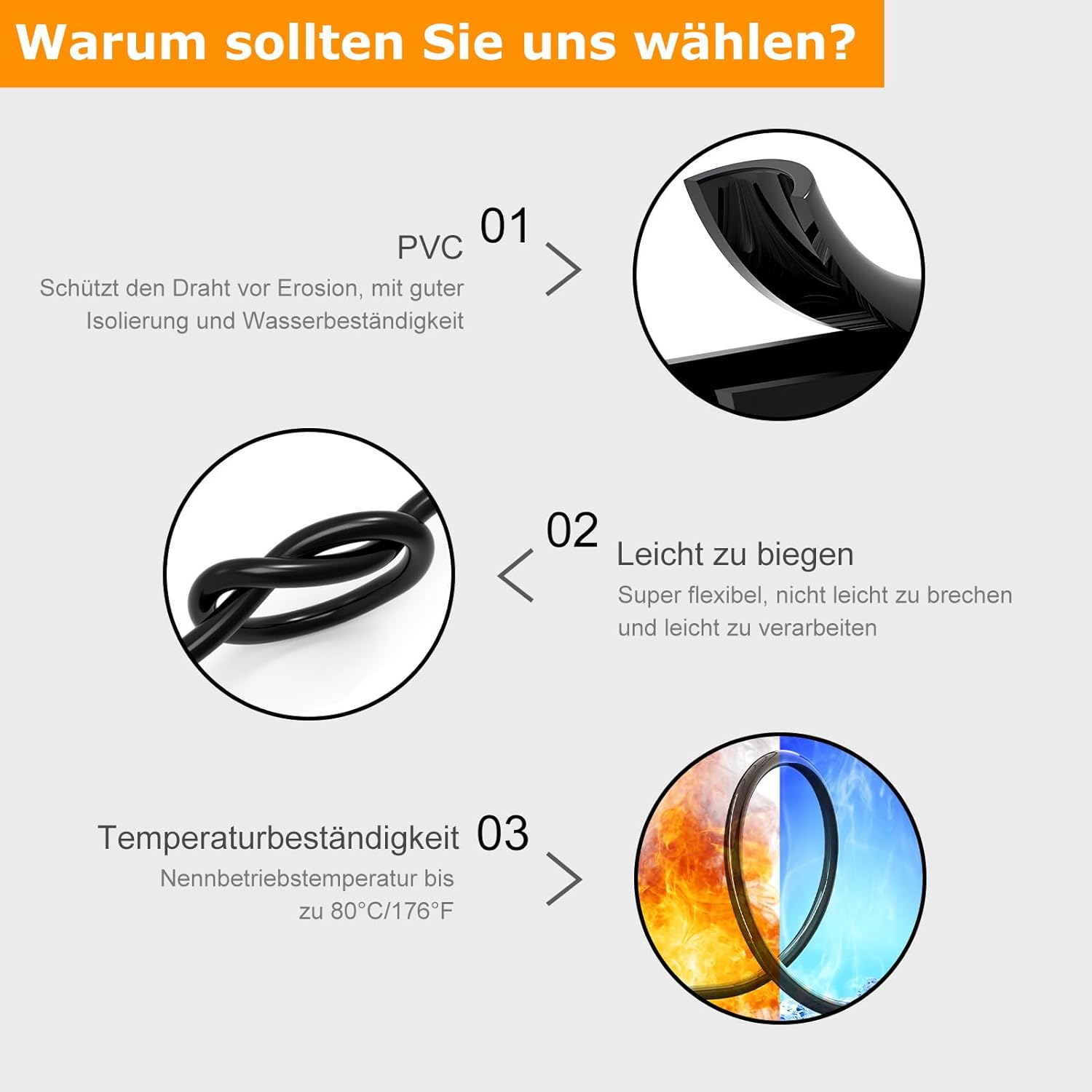

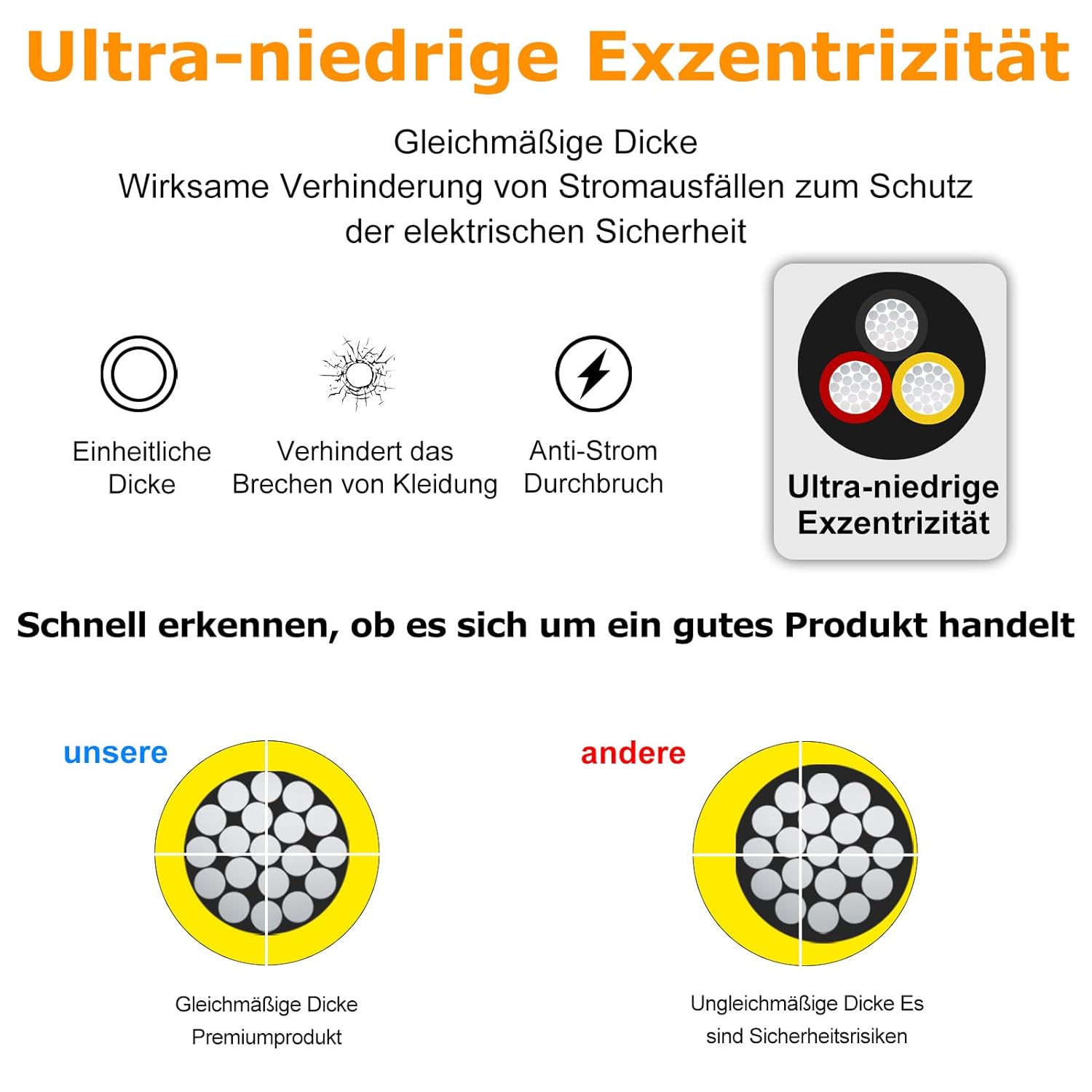

- High quality: 3-core cable with high-quality PVC insulation; water and moisture resistant as well as highly flexible; operating temperature up to 80°C / 176°F; low eccentricity and uniform wall thickness prevent power outages and sparks

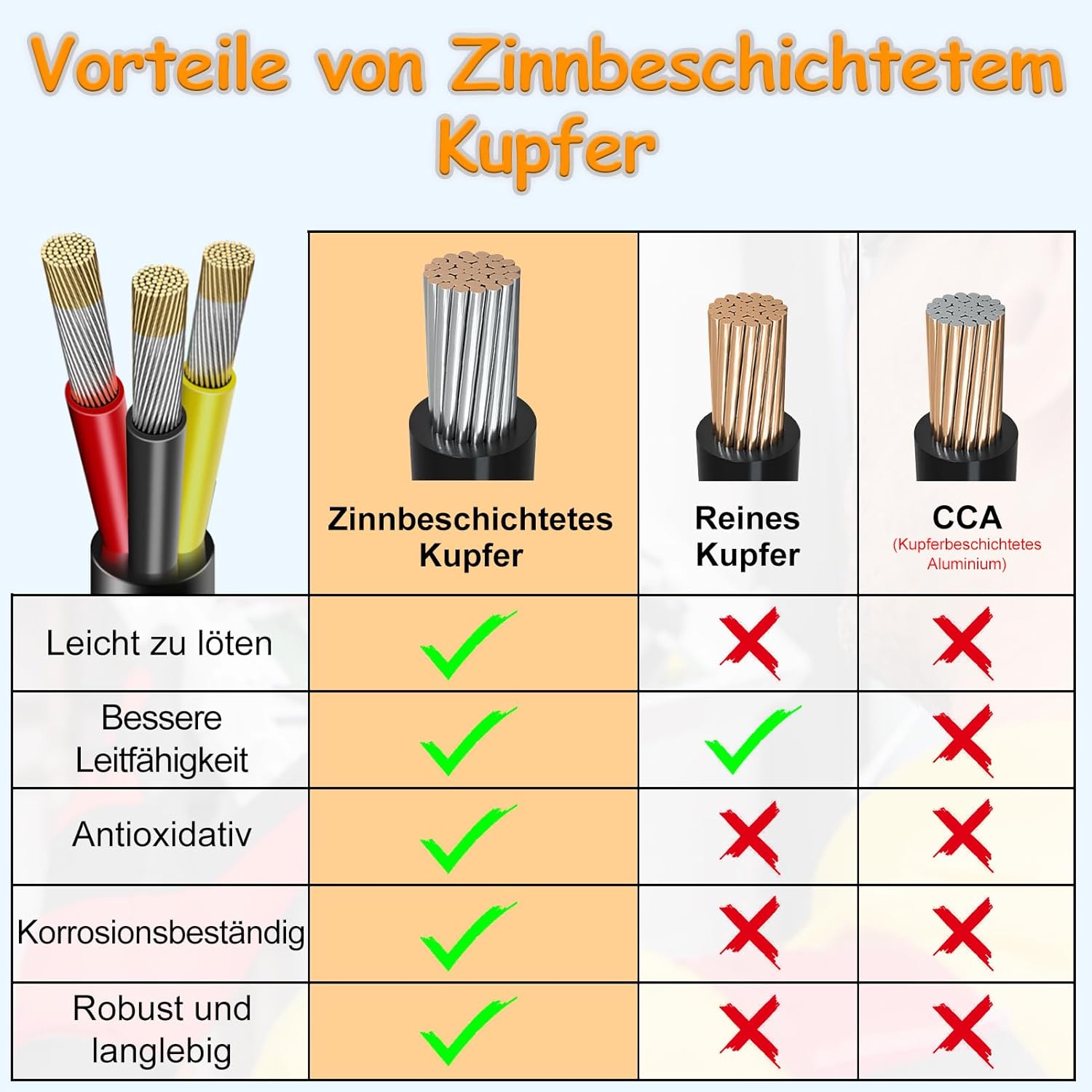

- Durable: extension cable 10 m made of high-purity, oxygen-free copper with tin plating; excellent conductivity, anti-aging, acid and alkaline resistant; stable in use and long service life
- Easy to use: cable 12v is flexible, easy to strip, solder and cut; stable connection by simply soldering the wires
- MULTI-PURPOSE Ideal for wiring low voltage electronics; Suitable for LED strip, lighting, household appliances, motor cables, digital ranges and gauges
Product information
Technical Details
Additional Information
| ASIN | B0DJS44K9V |
|---|
What's in the box?
Power supply
Product description
Specification
Nominal voltage: 300 V.
Nominal temperature: 80 °C.
Conductor material: tinned copper braid.
Material of insulation PVC.
Cross section 3 x 0.5 mm².
Load current: 6 A.
Waterproof
The electronic cable is equipped with high-quality PVC insulation, which is waterproof and ensures the safety of use as much as possible.
Rated voltage: Please make sure the rated voltage of the electronic line meets the requirements of the device used.
Rated Current: Choose a suitable electronic line that ensures that its rated current does not fall below the power requirements of the device.
Line cross section: the larger the cross section, the higher the current carrying capacity. Choose the appropriate cross section based on the specific application scenario.
