Deep Anti-Glare Design:Professional recessed optical structure with deep reflector cup reduces glare effectively while ensuring high visual comfort — ideal for commercial and hospitality applications.
Full Spectrum Lighting:Advanced LED technology provides a continuous light spectrum with CRI>97, delivering accurate color rendering and natural illumination close to daylight.
5CCT Adjustable:Built-in switch allows easy color temperature selection (2700K / 3000K / 3500K / 4000K / 5000K) to match various interior lighting scenes.
High Efficiency & Flicker-Free:Stable 90–140V driver with precise current control ensures smooth, flicker-free lighting and up to 90% energy saving compared with traditional halogen fixtures.
Durable & Elegant Build:High-quality aluminum body with white powder-coated housing for a clean modern look and efficient heat dissipation, ensuring 50,000h lifespan.
Easy Installation:Integrated spring clips for quick ceiling mounting; suitable for 2–4 inch cut-outs (varies by wattage); compatible with standard recessed can setups.
Order & Logistics
Lead Time: Ships within 7-15 business days
Packing: Protective cardboard box with individual foam compartments
Shipping Note: This series enjoys our Free Shipping Policy for orders over $399. Most items in this series are stocked in our local warehouses in the US, UK, and Germany for 3–7 day delivery. If an item is out of stock locally, it will ship from our headquarters warehouse: 9–18 days standard or 5–9 days express.
Key Specifications
Power: 7W / 9W / 12W
Voltage: 90–140V AC
Beam Angle: 24° narrow focus
Color Temperature: 5CCT Adjustable (2700K–5000K)
CRI: >95 Full Spectrum
Housing: White Aluminum Alloy
Dimming: Compatible with TRIAC dimmers (10–100%)
Mounting Type: Recessed ceiling mount
Lifespan: 50,000 hours
Technical Specifications
Item
Specification

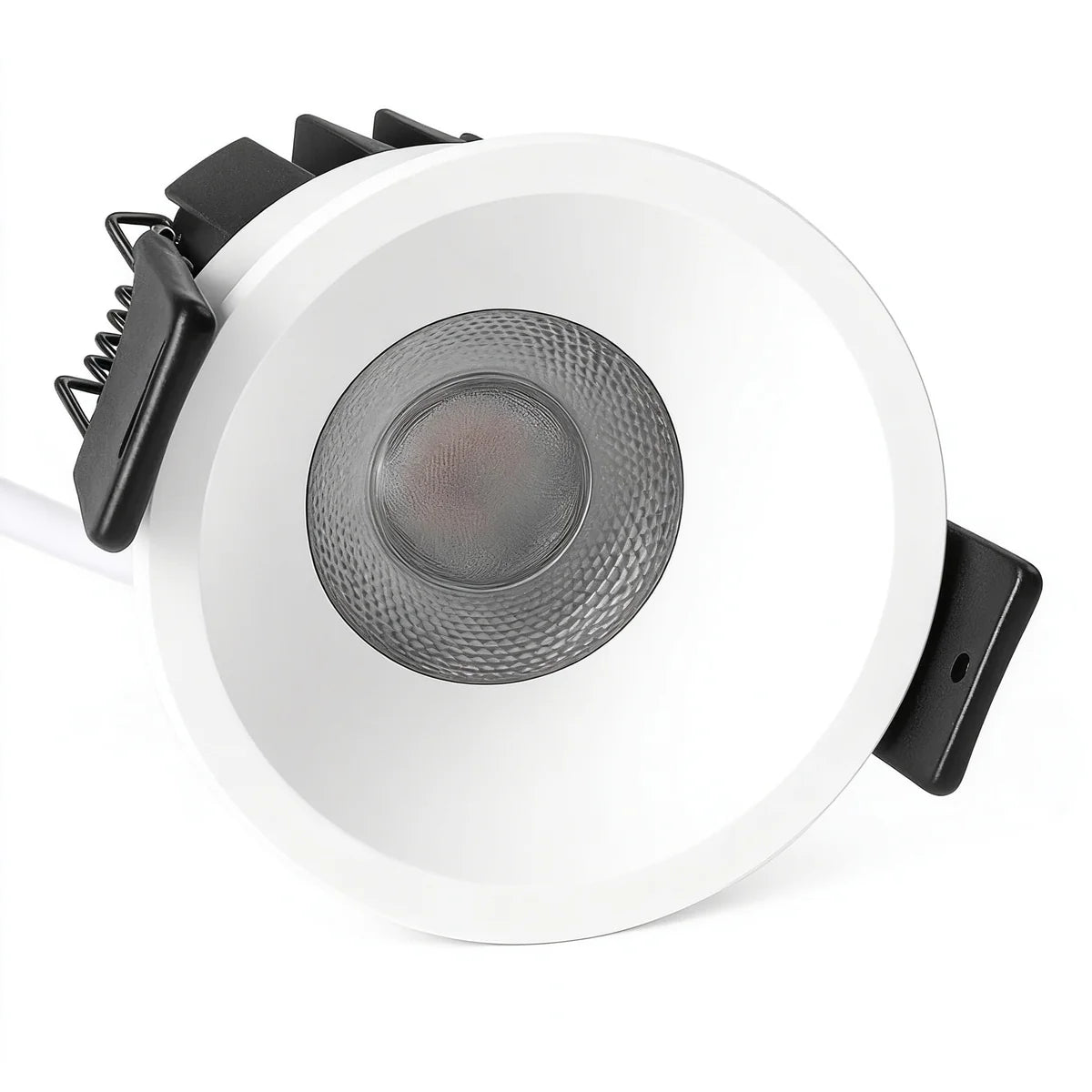

Product Name
PRO-1A Series LED Downlight
Model Options
TD071-55 (7W) / TD071-65 (9W) / TD071-75 (12W)
Power Options
7W / 9W / 12W
Housing Color
White (Top) + Black (Bottom)
Optical Structure
Deep anti-glare design; slanted reflector cup with angled inner wall
Light Source Type
Full-spectrum COB, 5CCT Adjustable
Beam Angle
24°
Cutout Size
Ø 55 mm (7W) / Ø 65 mm (9W)/ Ø 75 mm (12W)
Product Size
D 62 × H 69 mm (7W) / D 72 × H 71 mm (9W) / D 80 × H 73.5 mm (12W)
Input Voltage
AC 90–140V
Dimmable
TRIAC dimmable
Color Temperature
5CCT selectable, 2700K–5000K
CRI
> 97
Light Efficacy
75 lm/W (7W / 9W) ; 70 lm/W (12W)

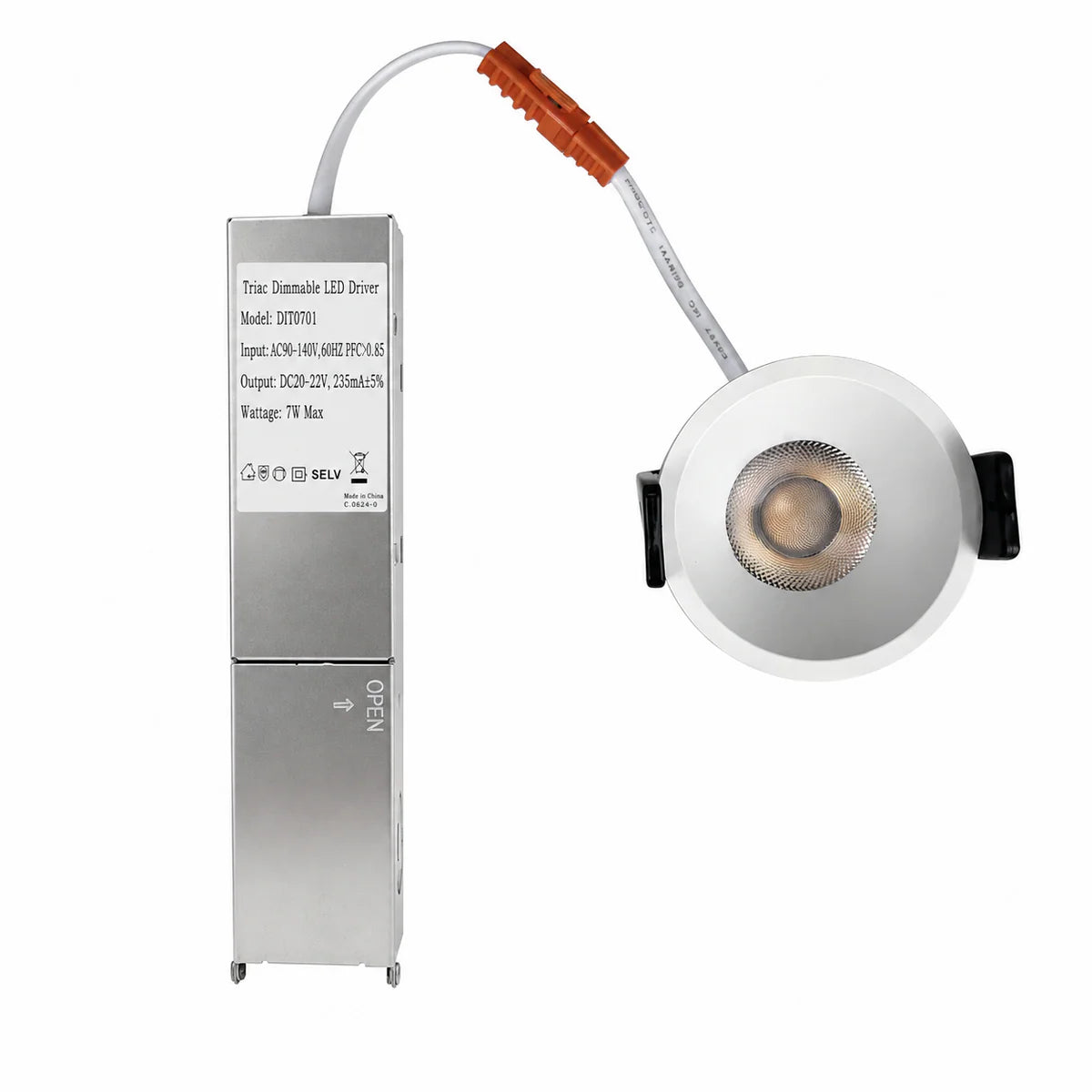

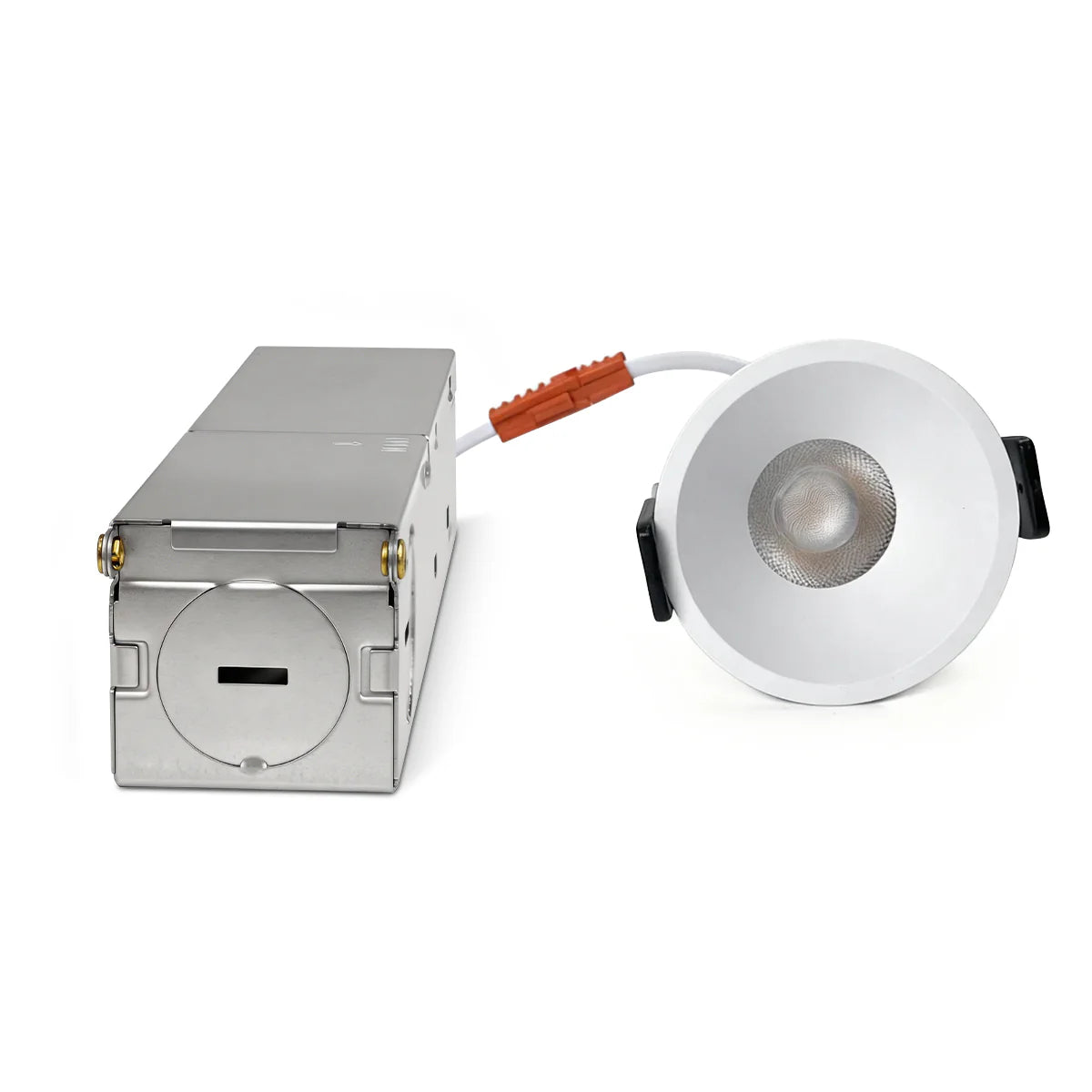

Driver / Power Supply
Metal housing driver; TRIAC dimmable; 5CCT DIP-switch driver
Flicker
Flicker-free
Blue Light
Low blue light
Installation Type
Recessed ceiling mount
Application
Accent lighting with deep anti-glare performance for residential and commercial interiors
Use Environment
Indoor use only
Usage Notes / Installation Tips
Ensure power supply is disconnected before installation or wiring adjustment
Confirm cut-out size and ceiling depth before mounting
Choose appropriate color temperature using the 5CCT switch before installation
Use with compatible TRIAC dimmers for optimal dimming performance
Recommended for dry and damp locations; avoid direct water exposure
Applications
Commercial: retail stores, showrooms, galleries, and offices
Hospitality: hotels, restaurants, cafes, and reception halls
Residential: living rooms, kitchens, hallways, and staircases
Architectural & Accent Lighting: focused illumination with glare control
