Package Included
| Version | Package Included |
|---|---|
| SMD2835 940nm 60 LEDs/m Non-Waterproof | 1 × 16.4 ft (5m × 1 Roll) IR LED Light Strip |
| SMD2835 940nm 60 LEDs/m IP65 Waterproof | 1 × 16.4 ft (5m × 1 Roll) IR LED Light Strip |
| SMD5050 940nm 60 LEDs/m Non-Waterproof | 1 × 16.4 ft (5m × 1 Roll) IR LED Light Strip |
| SMD5050 940nm 60 LEDs/m IP65 Waterproof | 1 × 16.4 ft (5m × 1 Roll) IR LED Light Strip |
About this item

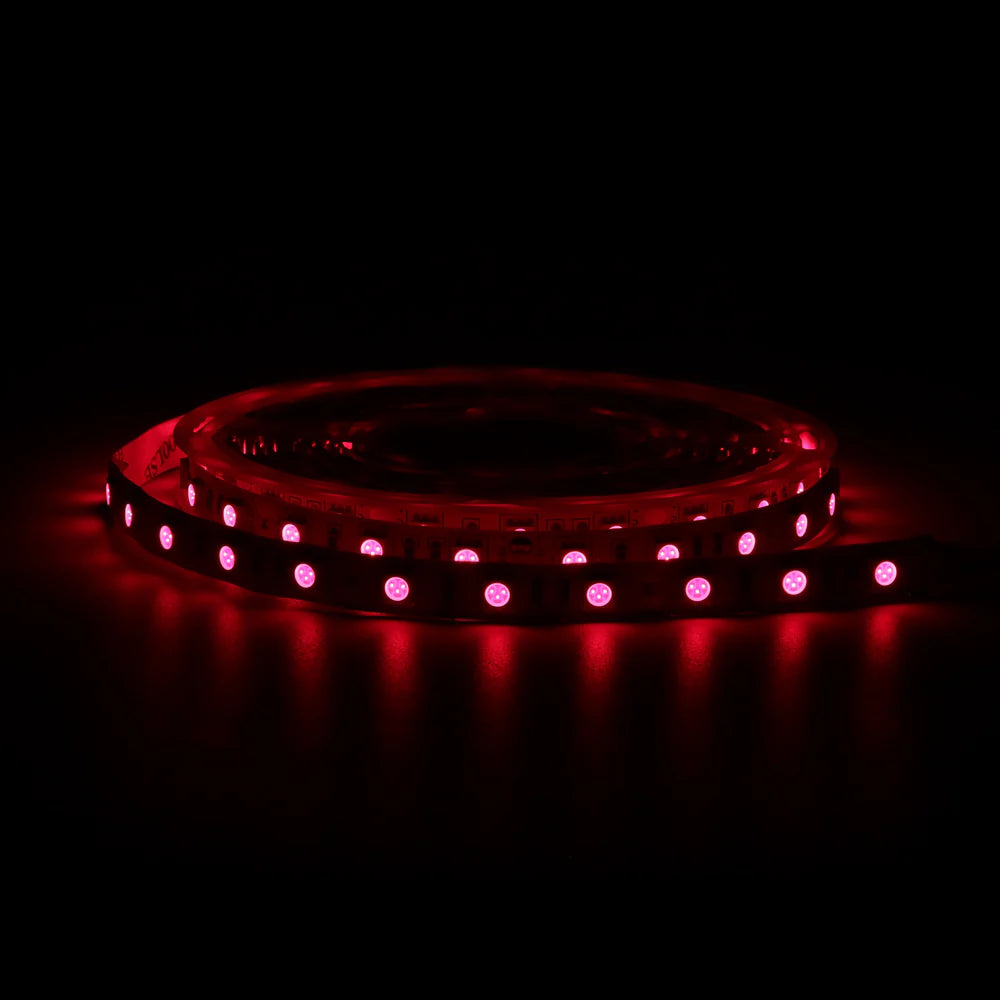

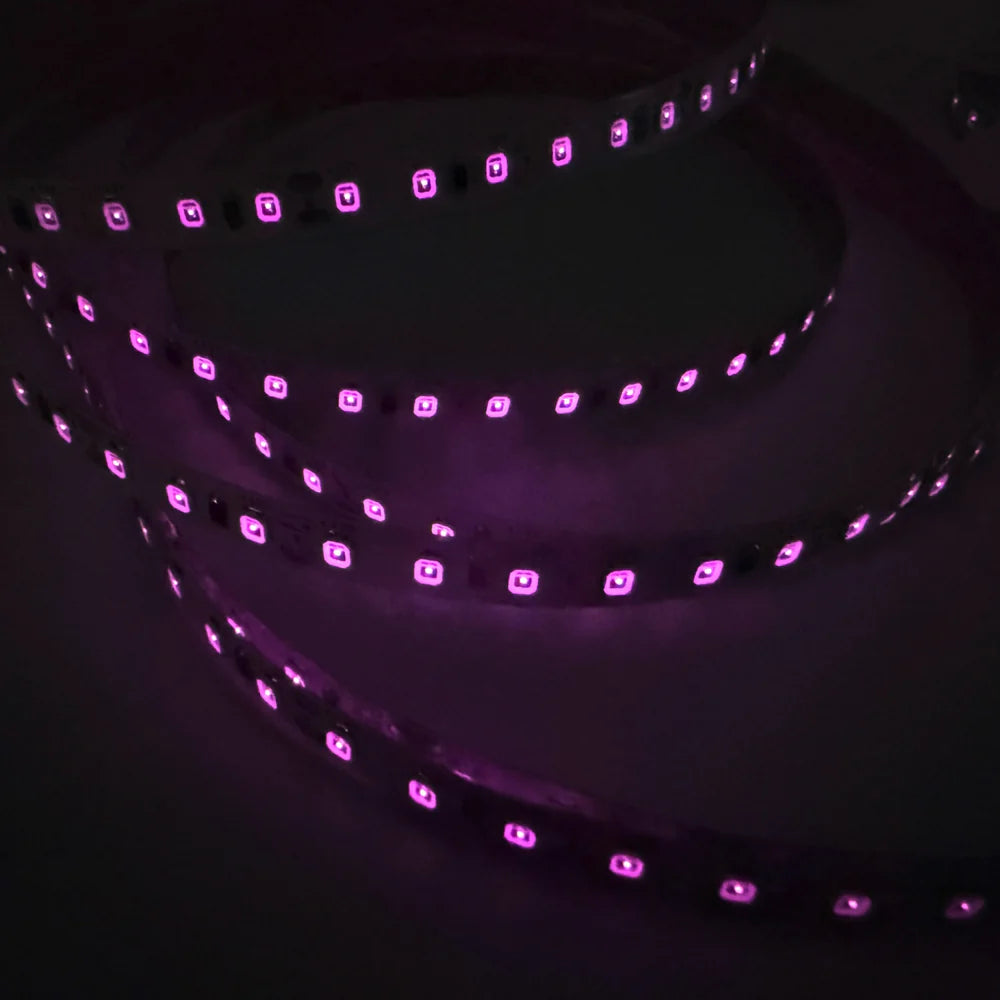

- Available in SMD2835 and SMD5050 infrared LED versions with a 940nm wavelength.
- Features 60 LEDs/m density for reliable infrared illumination applications.
- Operates on DC 12V with a 120° beam angle.
- Available in Non-Waterproof and IP65 Waterproof versions.
- Dimmable with compatible LED dimmers.

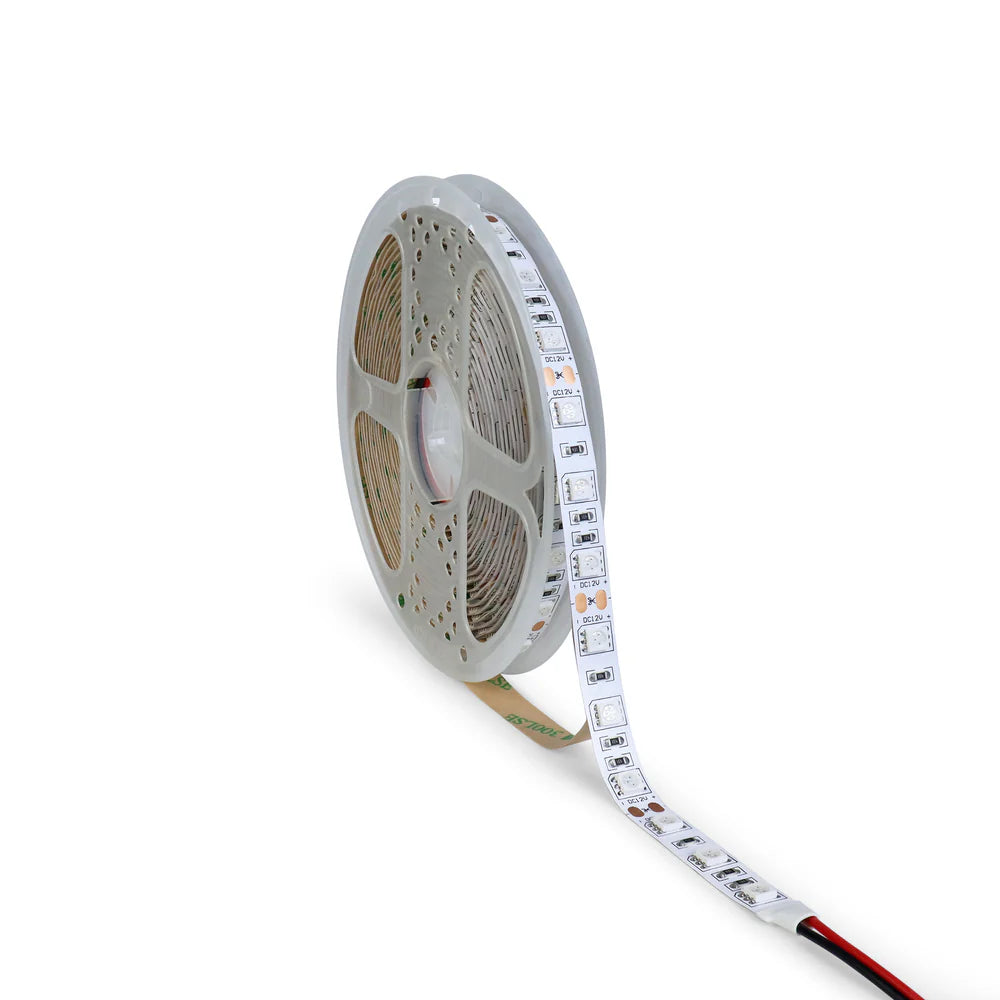

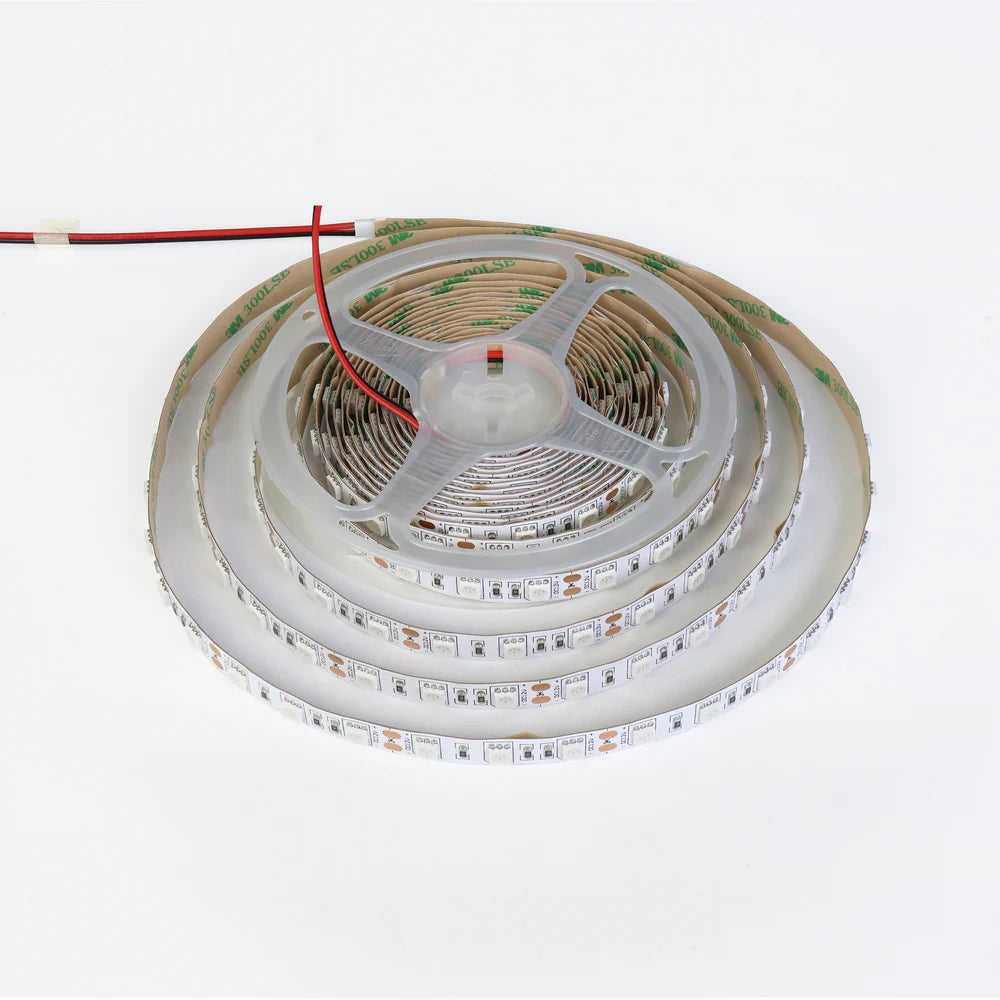

- Supplied in a 5m (16.4 ft) roll.

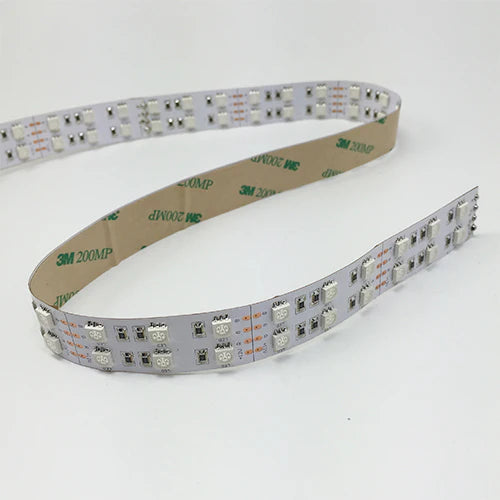

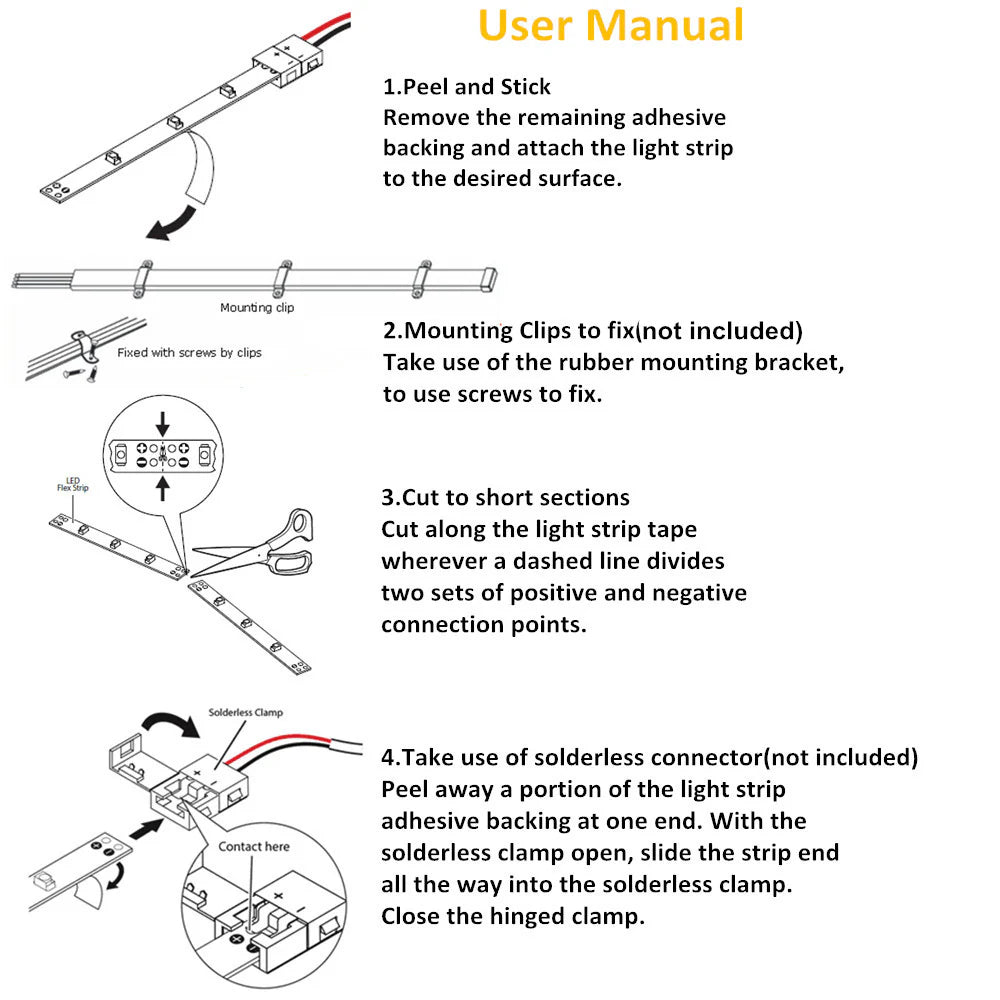

- Features self-adhesive backing for convenient installation.

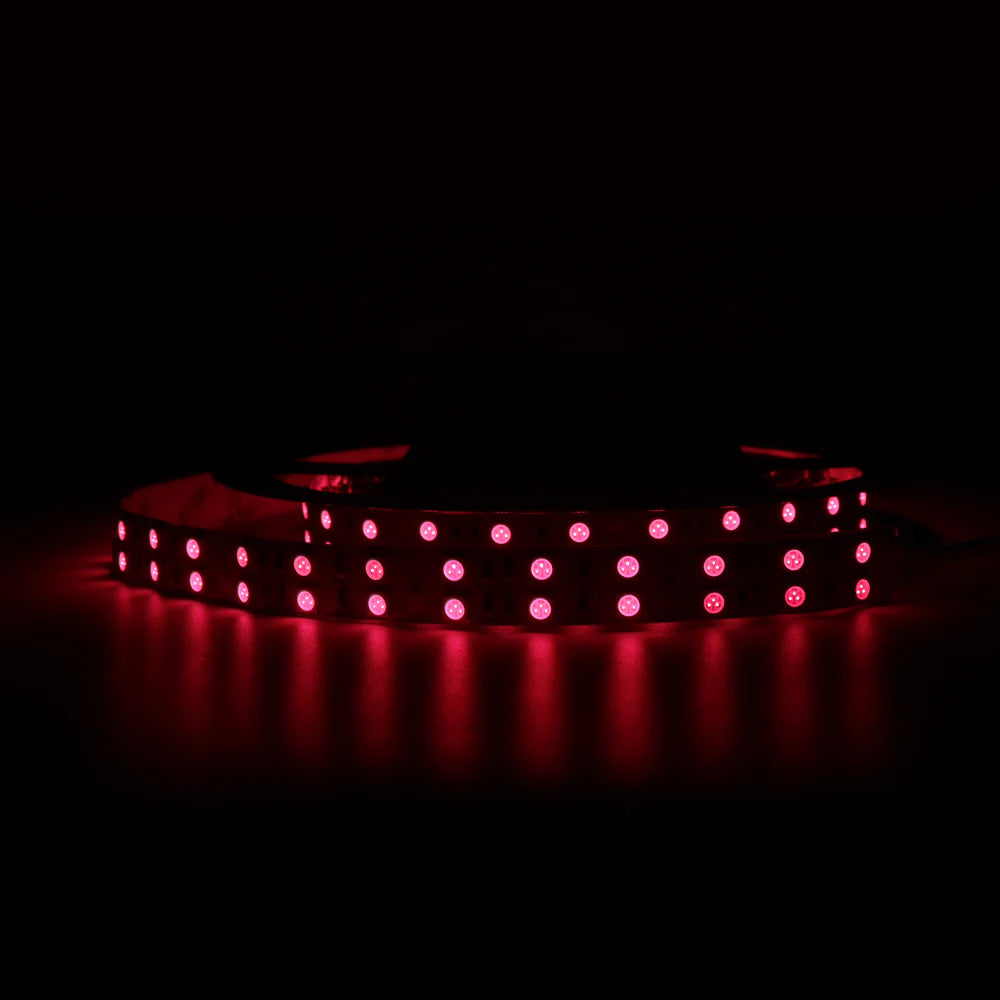

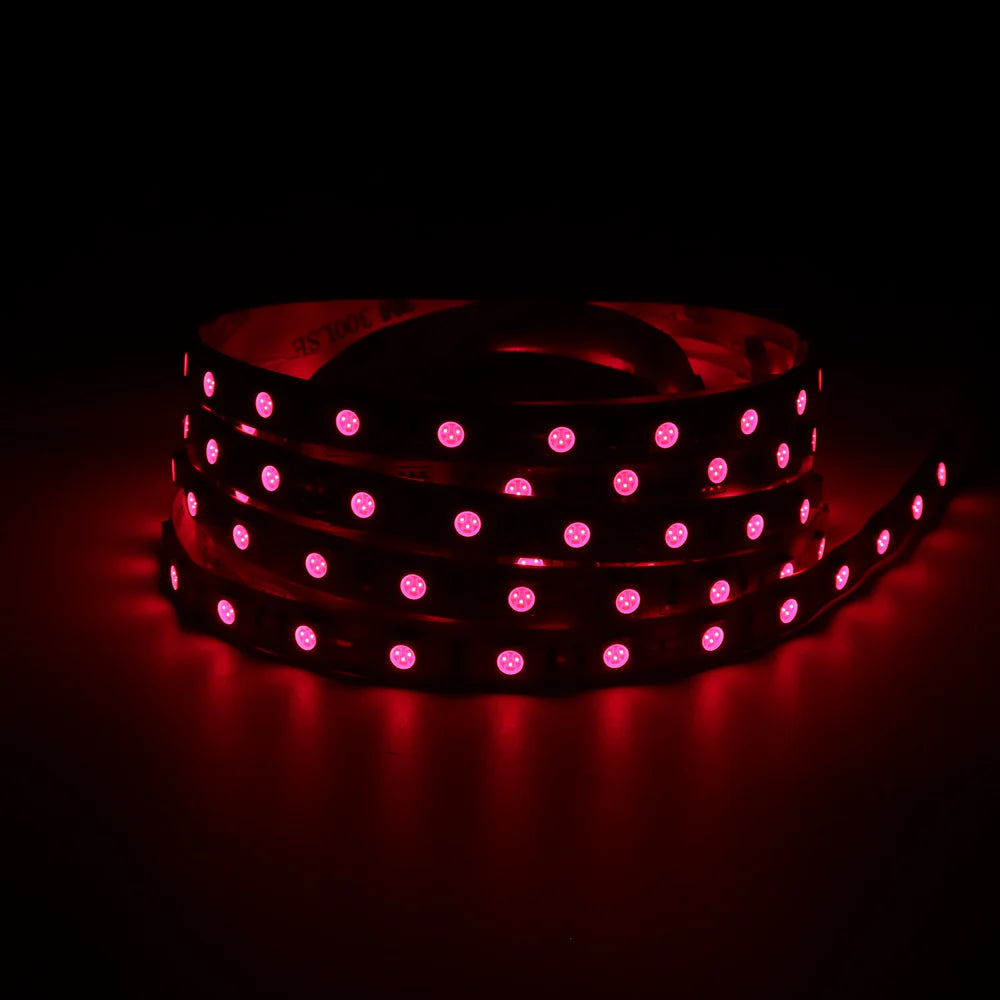

- Emits invisible infrared light suitable for surveillance systems, industrial inspection, medical devices, and specialized lighting applications.
Order & Logistics
- Lead Time: Ships within 1–3 business days, occasionally 3–6 business days.
- Packing: Cardboard box.
- Shipping: Ships from local warehouse in 3–7 days if available, or from headquarters warehouse in 9–18 days by standard shipping or 5–9 days by express shipping.
Technical Specification
| Specification | SMD2835 60 LEDs/m | SMD5050 60 LEDs/m |
|---|---|---|
| Wavelength | 940nm | 940nm |
| Light Color | Infrared | Infrared (Invisible) |
| Strip Model | SDM2835-300 | SDM5050-300 |
| LED Type | SMD2835 | SMD5050 Tri-Chip |
| LED Density | 60 LEDs/m | 60 LEDs/m |
| Input Voltage | 12V DC | 12V DC |
| Power Consumption | <5W/m | <12W/m |
| Beam Angle | 120° | 120° |

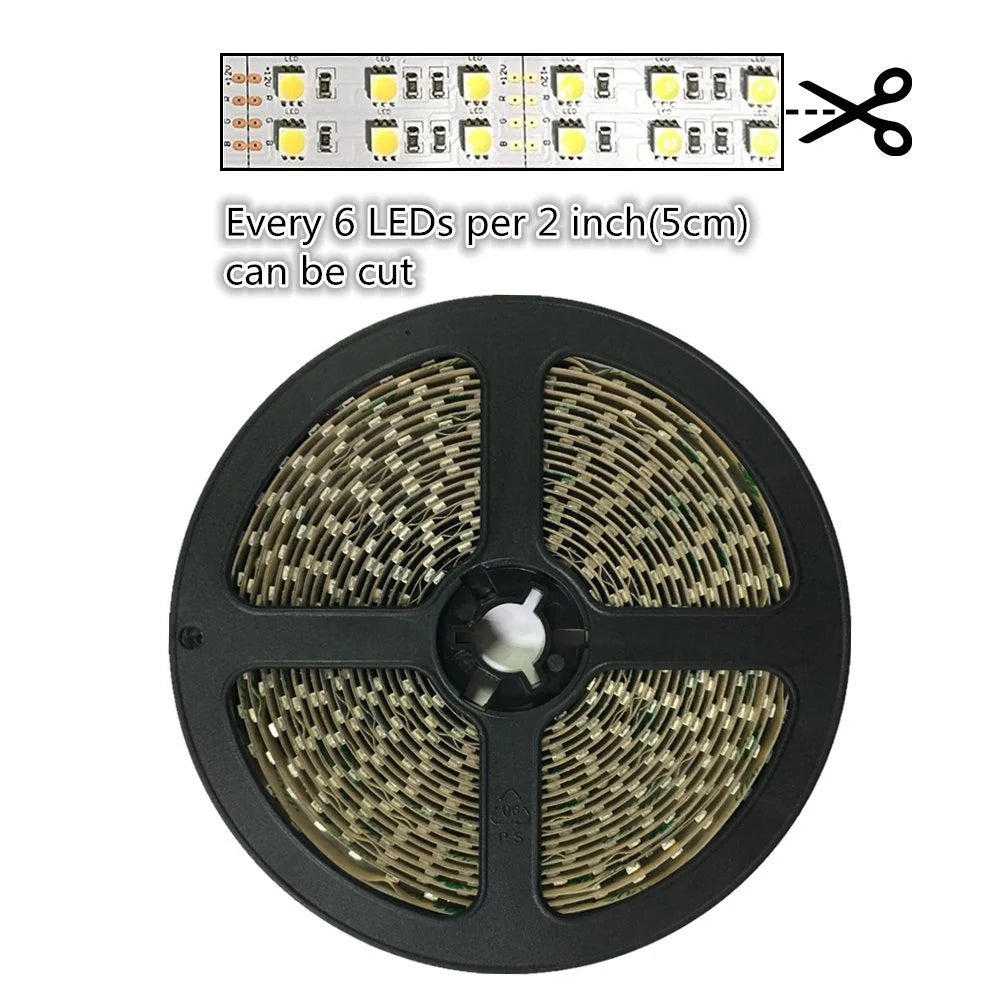

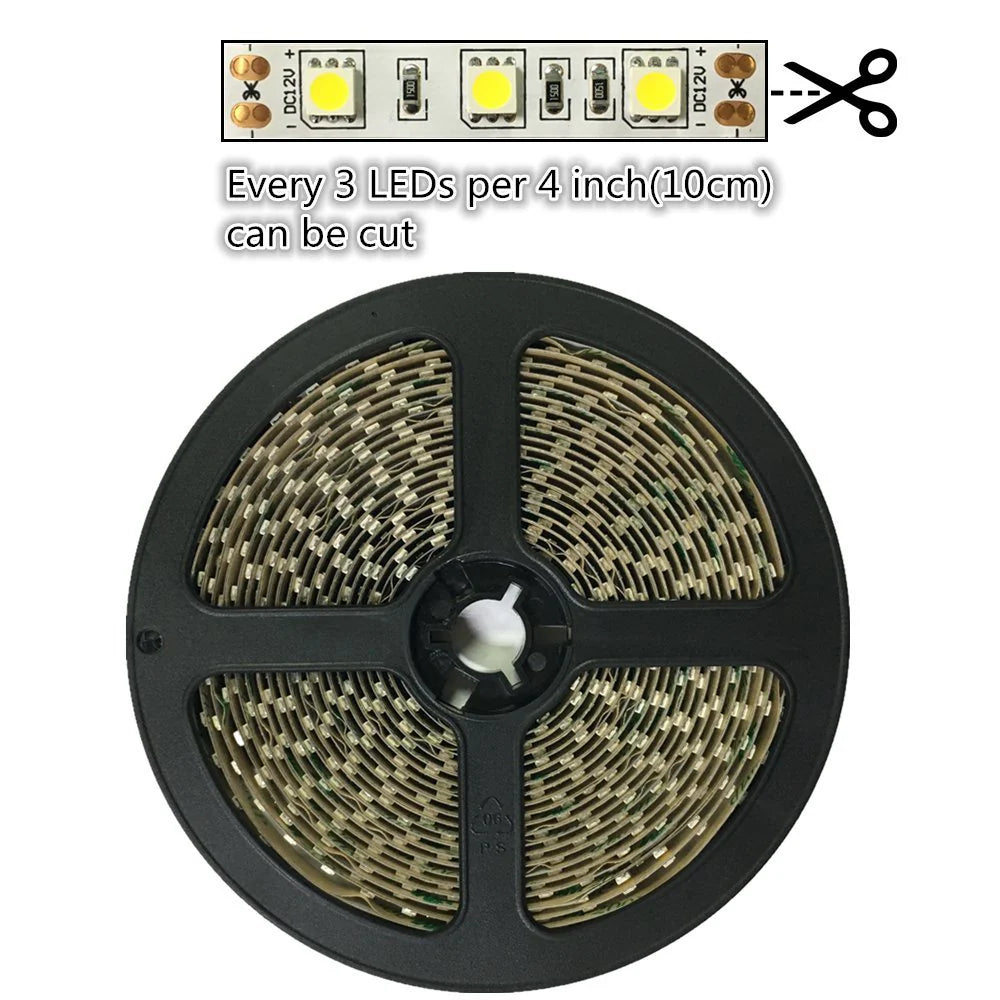

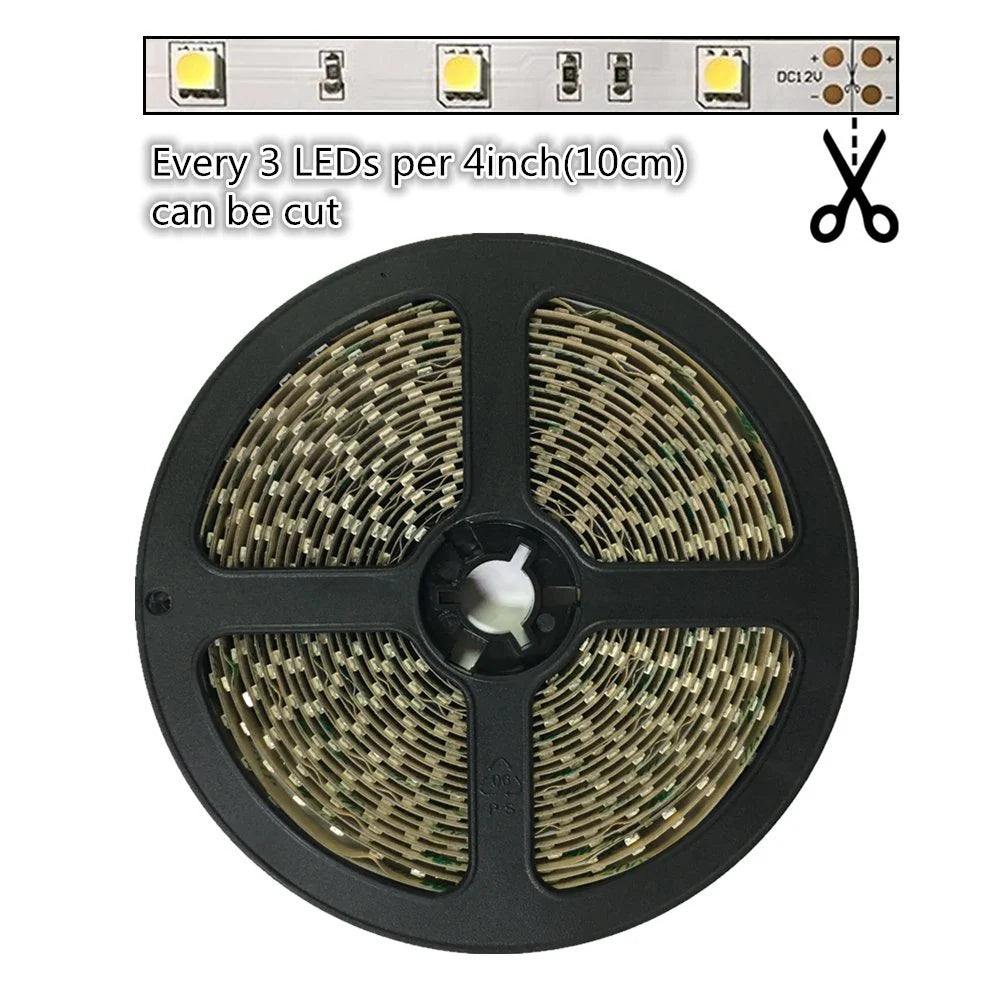

| Cuttable Section | 3 LEDs / 2" | 3 LEDs / 2" |
| Strip Length | 5m (16.4 ft) | 5m (16.4 ft) |
| Strip Size (W×H) | 8 × 2 mm | 10 × 2 mm |
| PCB Color | White | White |
| Waterproof Options | Non-Waterproof, IP65 | Non-Waterproof, IP65 |
| Dimmable | Yes (Requires Compatible Dimmer) | Yes (Requires Compatible Dimmer) |
Applications
- Medical and Health Applications
- Industrial and Inspection Lighting
- Security and Surveillance Systems
- Machine Vision Systems
- Plant Growth Supplemental Lighting
- Stage Lighting and Ambient Illumination
