Package Included
| Version | Package Included |
|---|---|
| SMD5050 850nm 30 LEDs/m Non-Waterproof | 1 × 16.4 ft (5m × 1 Roll) IR LED Light Strip |
| SMD5050 850nm 30 LEDs/m IP65 Waterproof | 1 × 16.4 ft (5m × 1 Roll) IR LED Light Strip |
About this item
- Uses SMD5050 infrared LEDs with an 850nm wavelength.
- Features 30 LEDs/m density for infrared illumination applications.
- Operates on DC 12V with a 120° beam angle.
- Provides up to <6W/m power consumption.
- Cuttable every 3 LEDs / 4" for flexible installation and customization.
- Supplied in a 5m (16.4 ft) roll.
- Built with a 10 × 2 mm flexible white PCB.

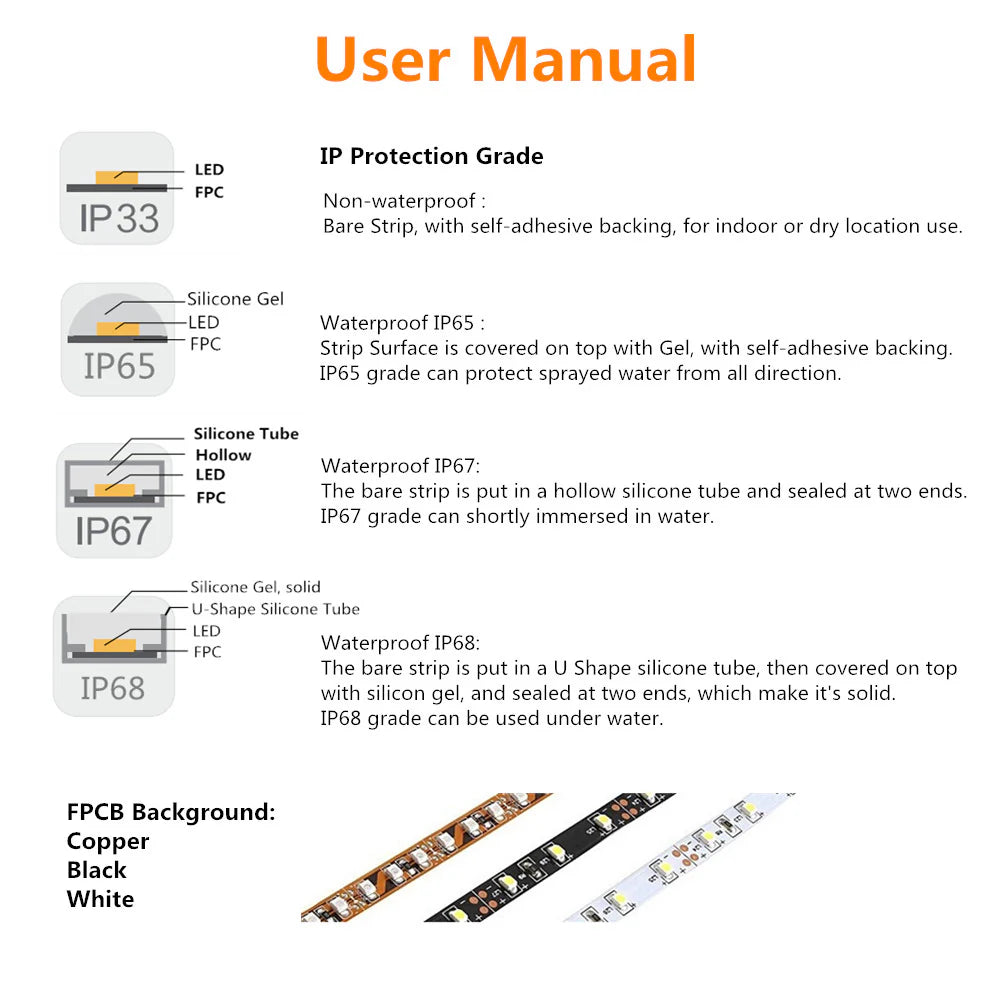

- Available in Non-Waterproof and IP65 Waterproof versions.
- Dimmable with compatible LED dimmers.
- Features self-adhesive backing for easy installation.
- Emits invisible infrared light suitable for medical, industrial, and plant growth applications.
Order & Logistics
- Lead Time: Ships within 1–3 business days, occasionally 3–6 business days.
- Packing: Cardboard box.
- Shipping: Ships from local warehouse in 3–7 days if available, or from headquarters warehouse in 9–18 days by standard shipping or 5–9 days by express shipping.
Technical Specification
| Specification | SMD5050 30 LEDs/m |
|---|---|
| Wavelength | 850nm |
| Light Color | Infrared (Invisible) |
| Strip Model | SDM5050-150 |
| LED Type | SMD5050 Tri-Chip |
| LED Density | 30 LEDs/m |
| Input Voltage | 12V DC |
| Power Consumption | <6W/m |
| Beam Angle | 120° |
| Cuttable Section | 3 LEDs / 4" |
| Strip Length | 5m (16.4 ft) |
| Strip Size (W×H) | 10 × 2 mm |
| PCB Color | White |
| Waterproof Options | Non-Waterproof, IP65 |
| Dimmable | Yes (Requires Compatible Dimmer) |
Applications
- Medical and Health Applications
- Industrial and Inspection Lighting
- Plant Growth Supplemental Lighting
- Security and Monitoring Systems
- Stage Lighting
- Ambient Illumination
