Package Included
| Version | Package Included |
|---|---|
| SMD2835 850nm 240 LEDs/m Non-Waterproof | 1 × 16.4 ft (5m × 1 Roll) IR LED Light Strip |
| SMD2835 850nm 240 LEDs/m IP65 Waterproof | 1 × 16.4 ft (5m × 1 Roll) IR LED Light Strip |
About this item
- Uses SMD2835 infrared LEDs with an 850nm wavelength.

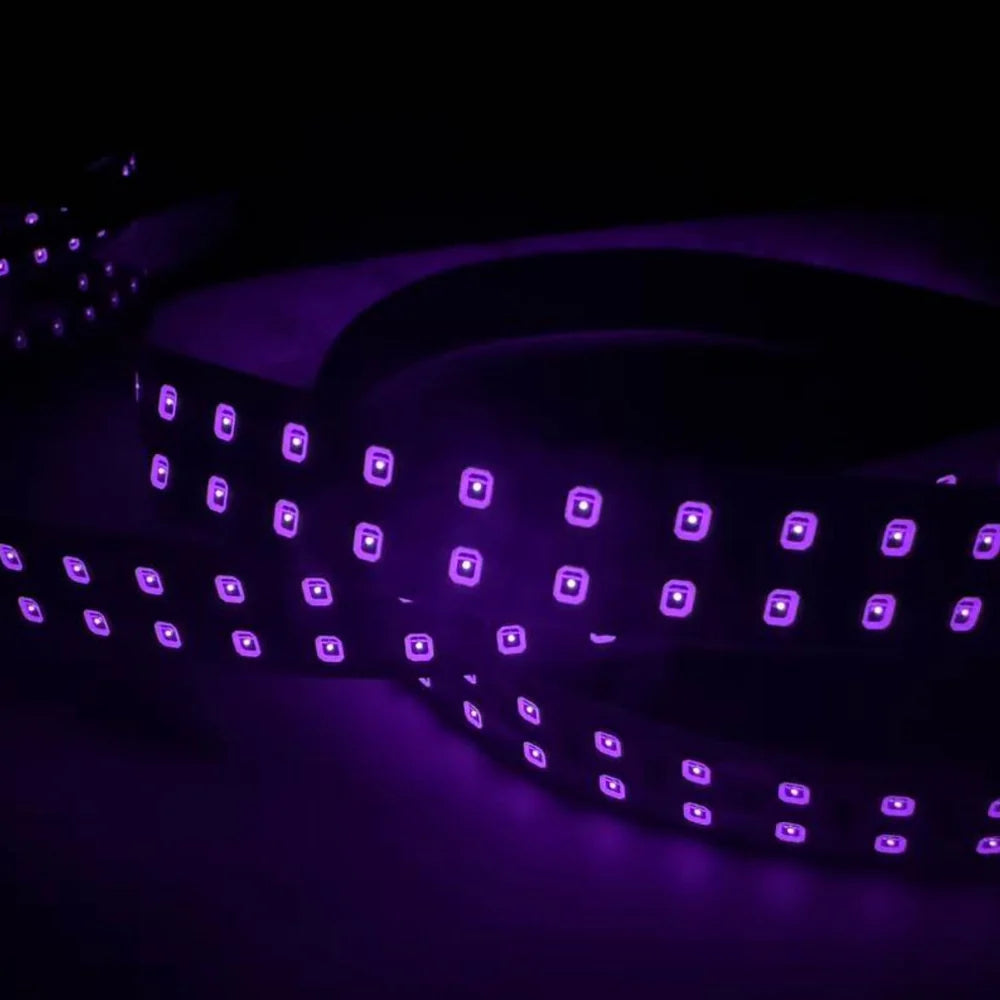

- Features a high-density 240 LEDs/m dual-row design for enhanced infrared output.
- Operates on DC 12V with a 120° beam angle.
- Available in Non-Waterproof and IP65 Waterproof versions.
- Dimmable with compatible LED dimmers.
- Supplied in a 5m (16.4 ft) roll.

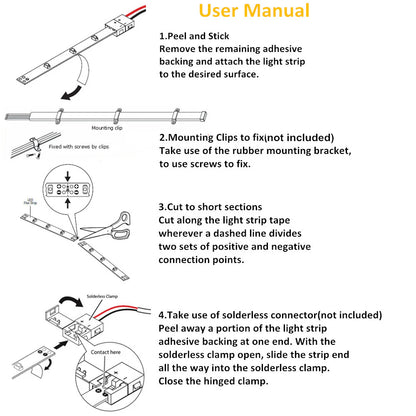

- Features self-adhesive backing for convenient installation.

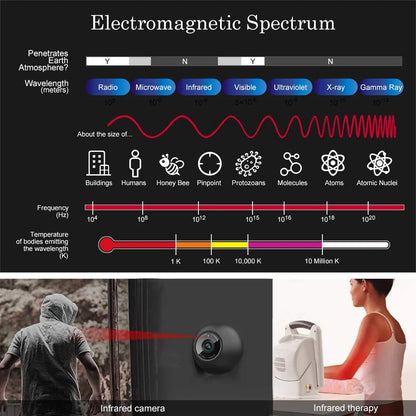

- Emits invisible infrared light suitable for medical, industrial, monitoring, and plant growth applications.
Order & Logistics
- Lead Time: Ships within 1–3 business days, occasionally 3–6 business days.
- Packing: Cardboard box.
- Shipping: Ships from local warehouse in 3–7 days if available, or from headquarters warehouse in 9–18 days by standard shipping or 5–9 days by express shipping.
Technical Specification
| Specification | SMD2835 240 LEDs/m |
|---|---|
| Wavelength | 850nm |
| Light Color | Infrared |
| Strip Model | SDM2835-1200 |
| LED Type | SMD2835 |
| LED Density | 240 LEDs/m |
| Input Voltage | 12V DC |
| Power Consumption | <18W/m |
| Beam Angle | 120° |
| Cuttable Section | 6 LEDs / 1" |
| Strip Length | 5m (16.4 ft) |

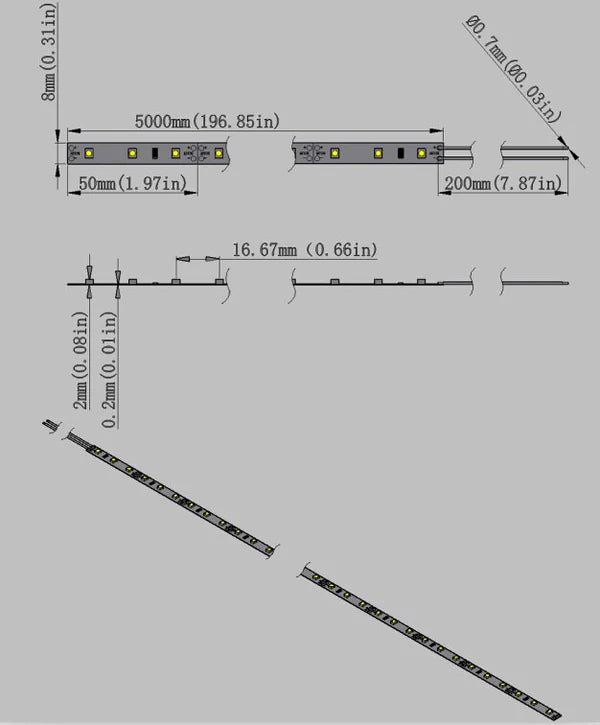

| Strip Size (W×H) | 15 × 2 mm |
| PCB Color | White |
| Waterproof Options | Non-Waterproof, IP65 |
| Dimmable | Yes (Requires Compatible Dimmer) |
Applications
- Medical and Health Applications
- Industrial and Inspection Lighting
- Plant Growth Supplemental Lighting
- Security and Monitoring Systems
- Stage Lighting
- Ambient Illumination
