Package Included
| Version | Package Included |
|---|---|
| SMD5050 730–735nm 30 LEDs/m Non-Waterproof | 1 × 16.4 ft (5m × 1 Roll) IR LED Light Strip |
| SMD5050 730–735nm 30 LEDs/m IP65 Waterproof | 1 × 16.4 ft (5m × 1 Roll) IR LED Light Strip |
About this item
- Uses SMD5050 far red LEDs with a 730–735nm wavelength.
- Features 30 LEDs/m density for efficient far red illumination.
- Operates on DC 12V with a 120° beam angle.
- Provides up to <6W/m power consumption.

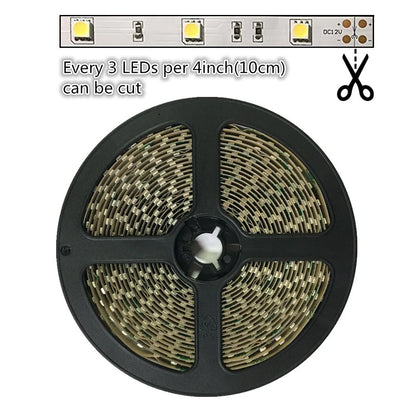

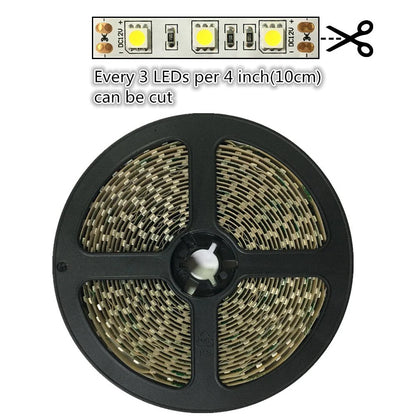

- Cuttable every 3 LEDs / 4" for flexible installation and customization.

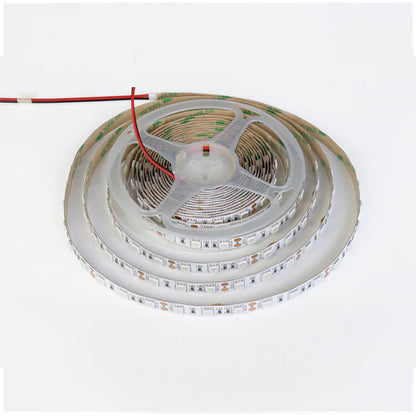

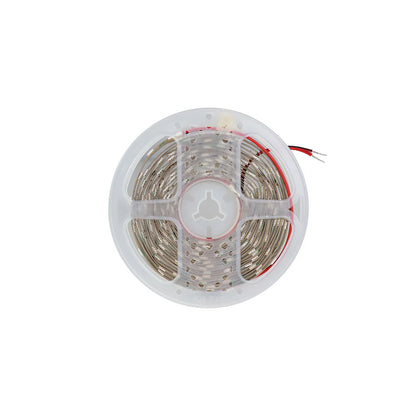

- Supplied in a 5 meter (16.4 ft) roll.
- Built with a 10 × 2 mm flexible white PCB.
- Available in Non-Waterproof and IP65 Waterproof versions.
- Dimmable with compatible LED dimmers.

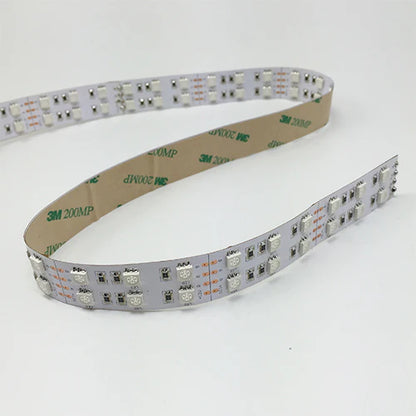

- Features self-adhesive backing for convenient installation.

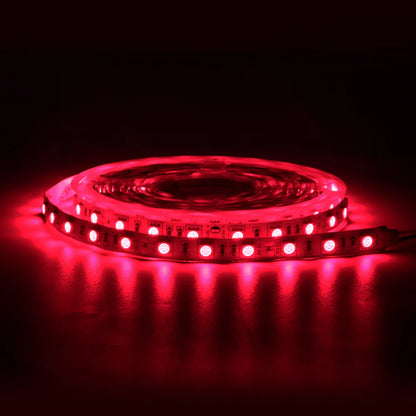

- Emits high-power far red light suitable for plant growth and photoperiod control applications.
Order & Logistics
- Lead Time: Ships within 1–3 business days, occasionally 3–6 business days.
- Packing: Cardboard box.
- Shipping: Ships from local warehouse in 3–7 days if available, or from headquarters warehouse in 9–18 days by standard shipping or 5–9 days by express shipping.
Technical Specification
| Specification | SMD5050 30 LEDs/m |
|---|---|
| Wavelength | 730–735nm |
| Color | Deep Red |
| Strip Model | SDM5050-150 |
| LED Type | SMD5050 Tri-Chip |
| LED Density | 30 LEDs/m |
| Input Voltage | 12V DC |
| Power Consumption | <6W/m |
| Beam Angle | 120° |
| Cuttable Section | 3 LEDs / 4" |
| Strip Length | 5m (16.4 ft) |

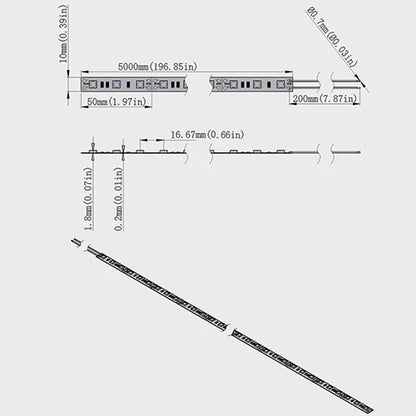

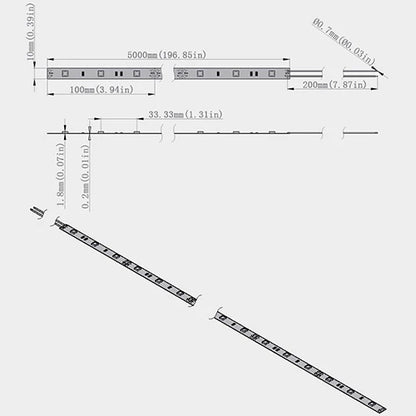

| Strip Size (W×H) | 10 × 2 mm |
| PCB Color | White |
| Waterproof Options | Non-Waterproof, IP65 |
| Dimmable | Yes (Requires Compatible Dimmer) |
Type of LED & Different Waterproof IP Grade
- Non-Waterproof: Bare strip with self-adhesive backing, suitable for indoor and dry use.

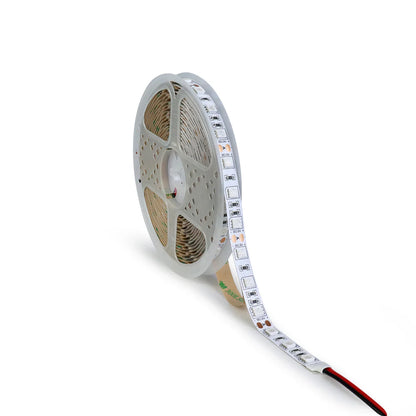

- IP65 Waterproof: Surface covered with protective gel, suitable for areas exposed to sprayed water.
Installation Tips
- Always disconnect power supply before cutting or connecting LED light strips.
- Do not crimp strip tape or bend strips to a radius less than 15mm.
- Do not connect LED strips directly to 120V AC power.
- Apply power to test LED strips before mounting.
How to Power / Control the Strip
- Choose transformer wattage based on the total power consumption of the LED strips.
- Select a transformer with a higher wattage rating than the total strip load for improved reliability.
- Using a higher wattage transformer will not damage the strips and helps extend service life.
- The strip can be controlled using a wall switch or compatible dimmer.
- Multiple strip runs can be controlled using amplifiers and additional power supplies where required.
Applications
- Flowering Stimulation for Plants
- Photoperiod Control in Horticulture
- Industrial and Inspection Lighting
- Stage Lighting
- Ambient Illumination
