How to Choose High CRI Architectural Downlights for Home and Light Commercial Projects

Choosing the right recessed downlight is not only about wattage. For architectural lighting, the more important questions are usually: what voltage system are you using, what color temperature do you need, how much glare control is required, and what size fixture fits the ceiling opening?

This collection is built around two product families: EZ-US and EZ-EU. Both are high CRI architectural downlights with deep anti-glare design, 24° beam angle, and CRI>95 color performance. The main difference is voltage and color temperature selection logic.

Start with Voltage: EZ-US or EZ-EU

The first step is choosing the correct voltage version.

For North American projects using 100–130V AC, EZ-US models are the correct choice. These products include 5CCT Adjustable functionality, which allows users or installers to select the preferred color temperature during installation. This is especially useful when the final lighting tone has not been fully decided before purchase.

For 200–240V AC installations, EZ-EU models are the correct choice. These models use fixed color temperature options such as 3000K, 4000K, and 5000K, making them more suitable for projects where the lighting specification is confirmed before ordering.

Choose the Reflector Type Based on Lighting Effect

Reflector design has a major impact on the final appearance of a downlight. In this collection, the main reflector options are angled reflector, curved reflector, and black reflector.

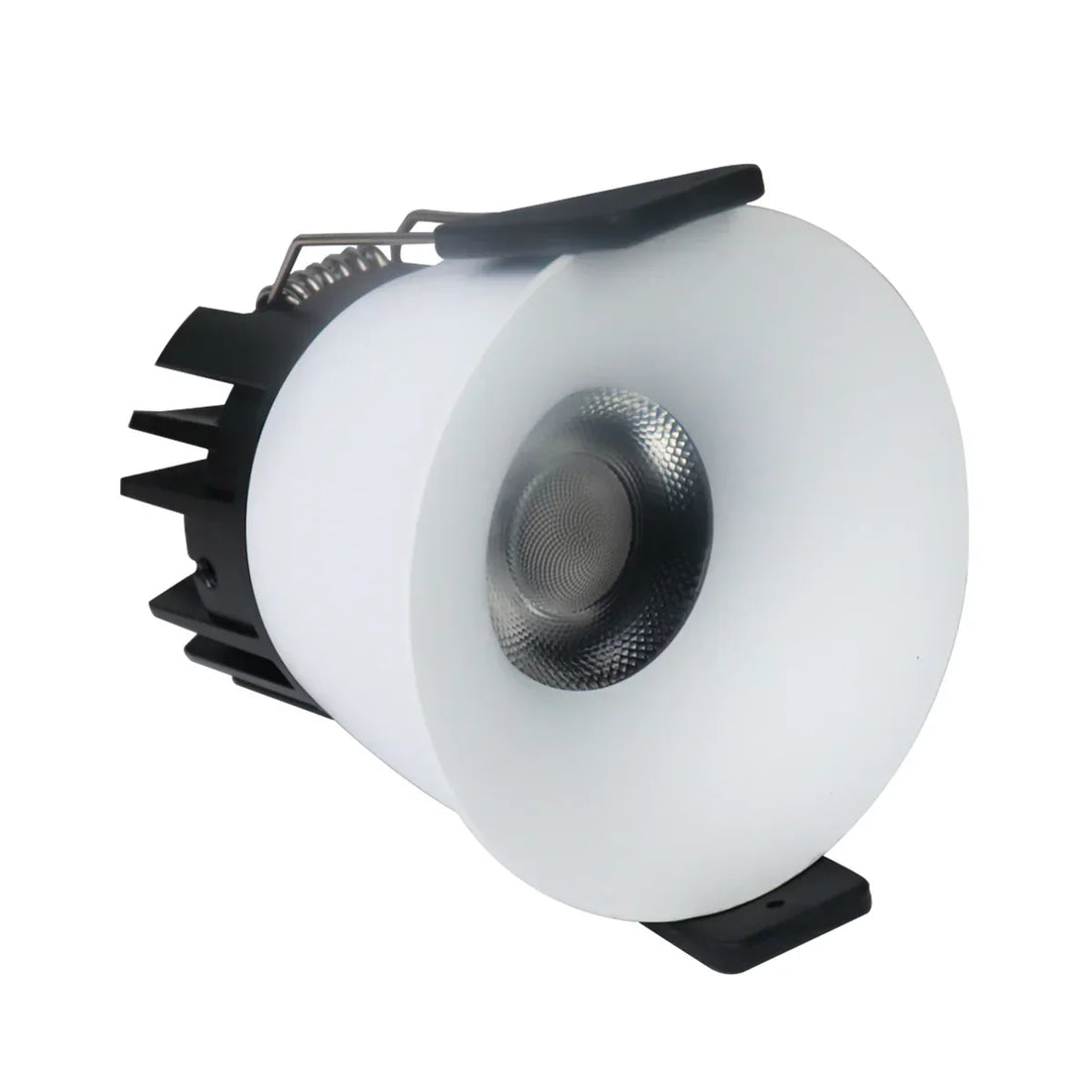

Angled reflector models are useful when the lighting needs to feel slightly more directional or focused. For example, the EZ-US Series Angled Reflector 7W 2.2" Deep Anti-Glare Recessed LED Downlight is a practical option for smaller 100–130V projects, while the EZ-EU Series Angled Reflector 7W 2.2" Deep Anti-Glare Recessed LED Downlight serves a similar role for 200–240V installations.

For medium-size spaces, the EZ-US Series Angled Reflector 9W 2.6" Deep Anti-Glare Recessed LED Downlight and EZ-EU Series Angled Reflector 9W 2.6" Deep Anti-Glare Recessed LED Downlight provide a balanced option between compact size and usable brightness.

For larger areas or stronger illumination, 12W angled reflector models such as the EZ-US Series Angled Reflector 12W 3" Deep Anti-Glare Recessed LED Downlight and EZ-EU Series Angled Reflector 12W 3" Deep Anti-Glare Recessed LED Downlight are better suited.

Curved Reflectors for Softer Architectural Appearance

Curved reflector models are a good choice when the project requires a cleaner architectural ceiling appearance with comfortable glare control. They are commonly used in residential interiors, hospitality spaces, corridors, offices, and retail environments where the fixture should feel refined rather than visually harsh.

For compact installations, the EZ-US Series Curved Reflector 7W 2.2" Deep Anti-Glare Recessed LED Downlight and EZ-EU Series Curved Reflector 7W 2.2" Deep Anti-Glare Recessed LED Downlight are suitable choices.

For balanced general lighting, the EZ-US Series Curved Reflector 9W 2.6" Deep Anti-Glare Recessed LED Downlight and EZ-EU Series Curved Reflector 9W 2.6" Deep Anti-Glare Recessed LED Downlight offer a practical middle range.

For larger ceilings or brighter lighting requirements, the EZ-US Series Curved Reflector 12W 3" Deep Anti-Glare Recessed LED Downlight and EZ-EU Series Curved Reflector 12W 3" Deep Anti-Glare Recessed LED Downlight are more appropriate.

Black Reflectors for Stronger Glare Control and Visual Contrast

Black reflector models are often selected when designers want a more controlled visual effect. The darker reflector helps reduce the visible brightness of the fixture aperture and creates a more focused architectural look.

For smaller spaces or accent lighting, the EZ-US Series Black Reflector 5W 2.2" Deep Anti-Glare Recessed LED Downlight and EZ-EU Series Black Reflector 5W 2.2" Deep Anti-Glare Recessed LED Downlight are suitable options.

For stronger output with a black reflector design, the EZ-US Series Black Reflector 9W 3" Deep Anti-Glare Recessed LED Downlight and EZ-EU Series Black Reflector 9W 3" Deep Anti-Glare Recessed LED Downlight are better suited for larger rooms, retail spaces, or applications requiring stronger illumination.

How to Choose Wattage and Size

In this series, wattage and size are closely connected. The 2.2-inch models are compact and suitable for smaller rooms, accent areas, corridors, and projects where a clean ceiling appearance is important. The 2.6-inch models provide a balanced option for general lighting. The 3-inch models are better suited for larger areas or spaces requiring higher light output.

As a simple rule, 5W and 7W models work well for lower-output or accent applications, 9W models are suitable for balanced general lighting, and 12W models are better for stronger illumination needs.

Final Recommendation

If you are working on a 100–130V project and want maximum flexibility, choose EZ-US models with 5CCT Adjustable functionality. If you are working on a 200–240V project with predefined color temperature requirements, choose EZ-EU models.

For a brighter and more directional effect, choose angled reflector models. For a softer architectural appearance, choose curved reflector models. For stronger glare control and a cleaner ceiling aperture, choose black reflector models.

By selecting the correct voltage, reflector type, wattage, and size, you can build a high CRI recessed lighting system that delivers comfortable visual performance, accurate color rendering, and a professional architectural finish.
