| Brand | inShareplus |
| Power Source | Corded Electric |
| Current Rating | 25 Amps |
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
| Brand Name | inShareplus |
|---|---|
| UPC | 744702368906 |
| Manufacturer | inShareplus |
| Power Source | Corded Electric |
|---|---|
| Current Rating | 25 Amps |
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
| Specification Met | Ip67 |
|---|
About this item

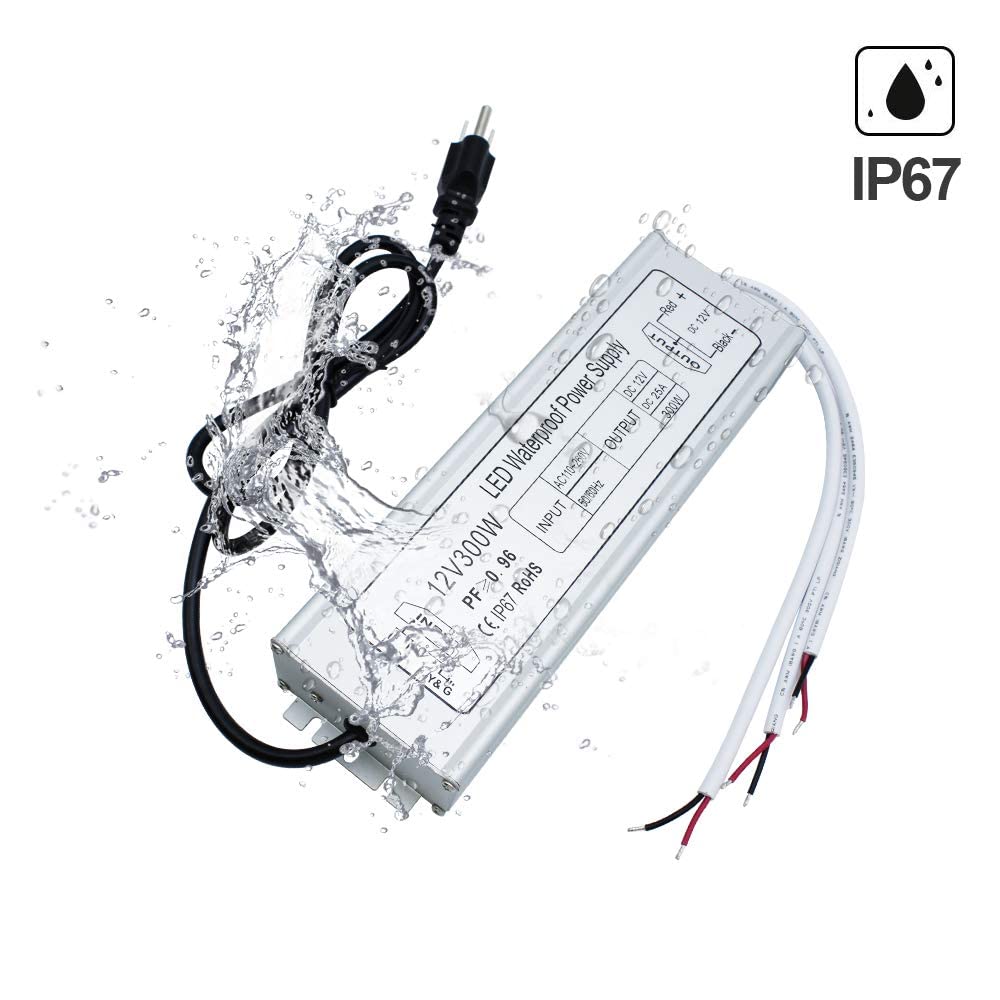

- 12V power supply features a sturdy aluminum alloy shell for heat dissipation and long-term stability. Sealed IP67 waterproof, it withstands harsh conditions, providing reliable power in environments with moisture, humidity, or water exposure
- Input: 110-260V AC 50/60HZ, Output: 12V DC 25A 300W. Suggestion:Use no more than 80% of the power supply's capacity; ensure good ventilation to avoid temporary shutdown due to overtemperature ; the driver will function again once it cools down
- Converts 110V AC to 12V DC with 3 outputs of 100W each, totaling 300W. Ideal for 12V DC LEDs (≤300W). Ideal for outdoor lighting, industrial settings, and events; ensures reliable and safe power for smooth operation in challenging conditions
- Automatic protection for: short circuit, overload, over voltage, over current, high temperature; type: Hiccup mode, auto-recovery after fault condition is removed. They can operate at temperatures of -20℃~+60℃, 20%~90%RH (non condensing)
- Our seller support team always stand behind our products in any way, so please find us for replacement if you have any quality problems
Product details
- Package Dimensions : 10.43 x 4.25 x 2.48 inches; 2.78 Pounds
- Date First Available : July 19, 2019
- Manufacturer : inShareplus
- ASIN : B07VFTM3VP
- Country of Origin : China
Product Description

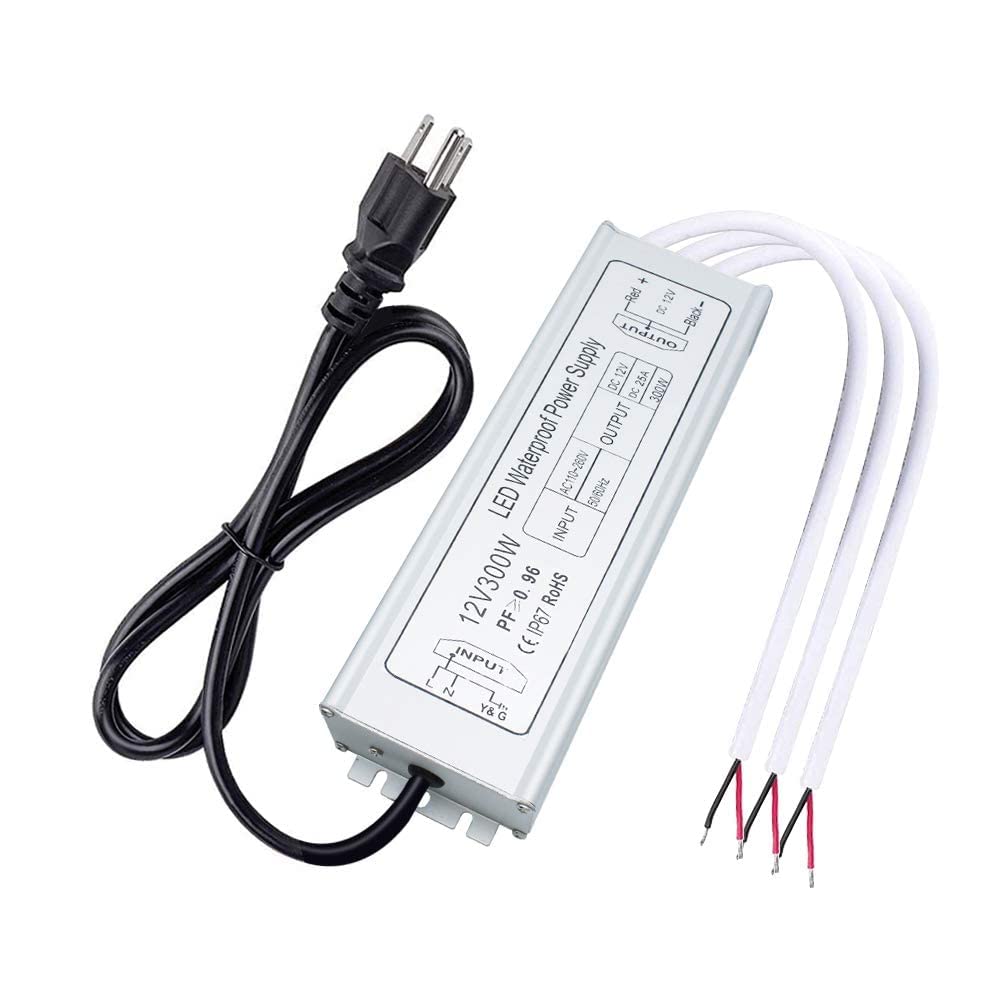

12V 300W IP67 Waterproof Power Supply Suitable for 12V LED projects, computer projects, outdoor use,LED strip lights
12V 300W Waterproof Power Supply
InShareplus 12V 25A 300W waterproof power supply is constant voltage power supply; Compatible with LED light bars, surveillance cameras, LED display lights; Indoor and outdoor lamps; Advertising signs; Wireless routing; etc
Please note that
- The total wattage of outdoor lights or other items shall not exceed the maximum wattage of the power supply (300W)
- LED waterproof power driver cannot be dimmable, and cannot be used together with dimmer and constant current lamp
- Average power score - There are three output lines, each with the same power (100W)

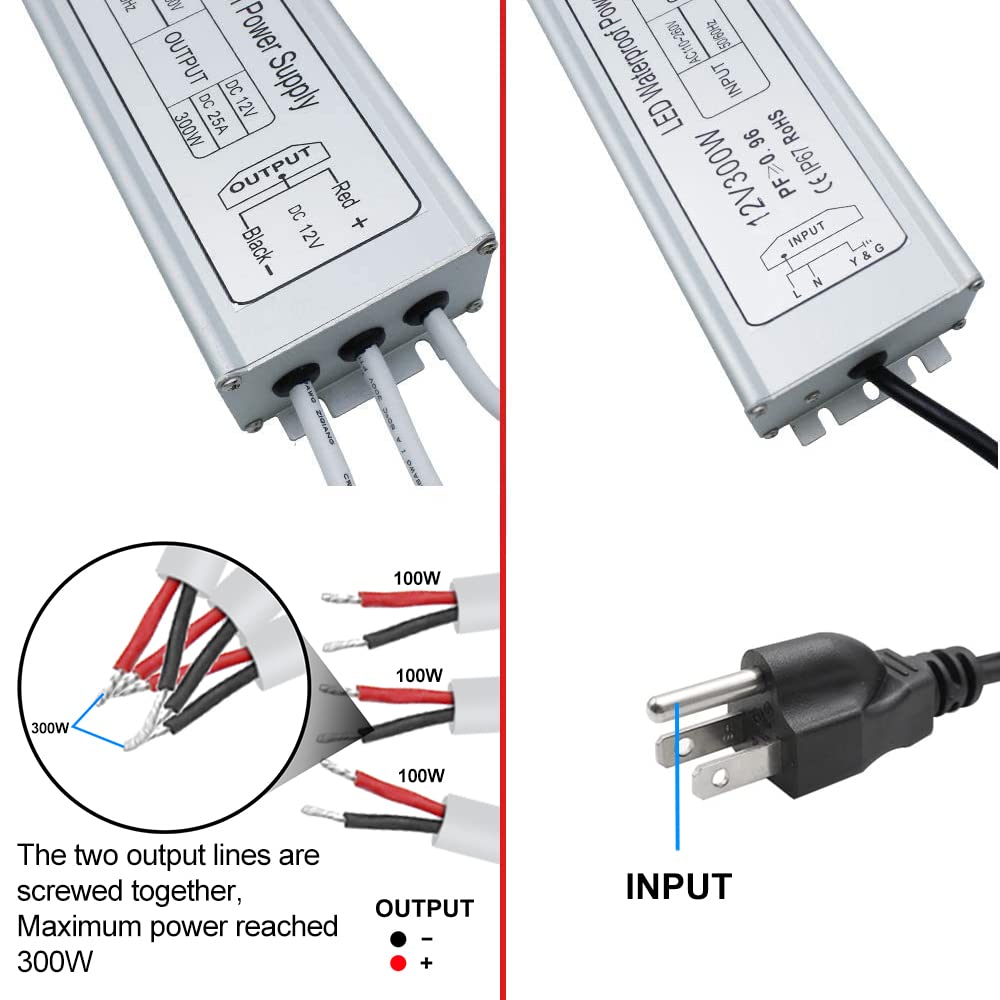

- The output lines of the same power supply can be used in parallel, and the positive and negative poles of the three output lines can be connected accordingly (red line to red line, black line to black line). There are three wires on the output end, each with a red wire and a black wire. The maximum output power of each wire is 100W. If you want to use an output higher than 100W, you need to connect the three wires together by twisting the red wire with the other red wire, and the black wire with the other black wire. The red wire is the live wire, and the black wire is the neutral wire. Please note that in order to prevent the power supply from working at full load, keep the power usage around 80%.
(Please pay attention to safety)
Waterproof IP67

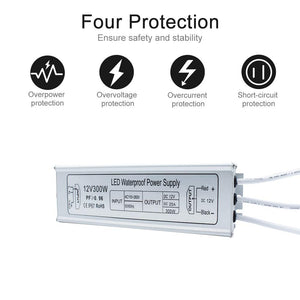

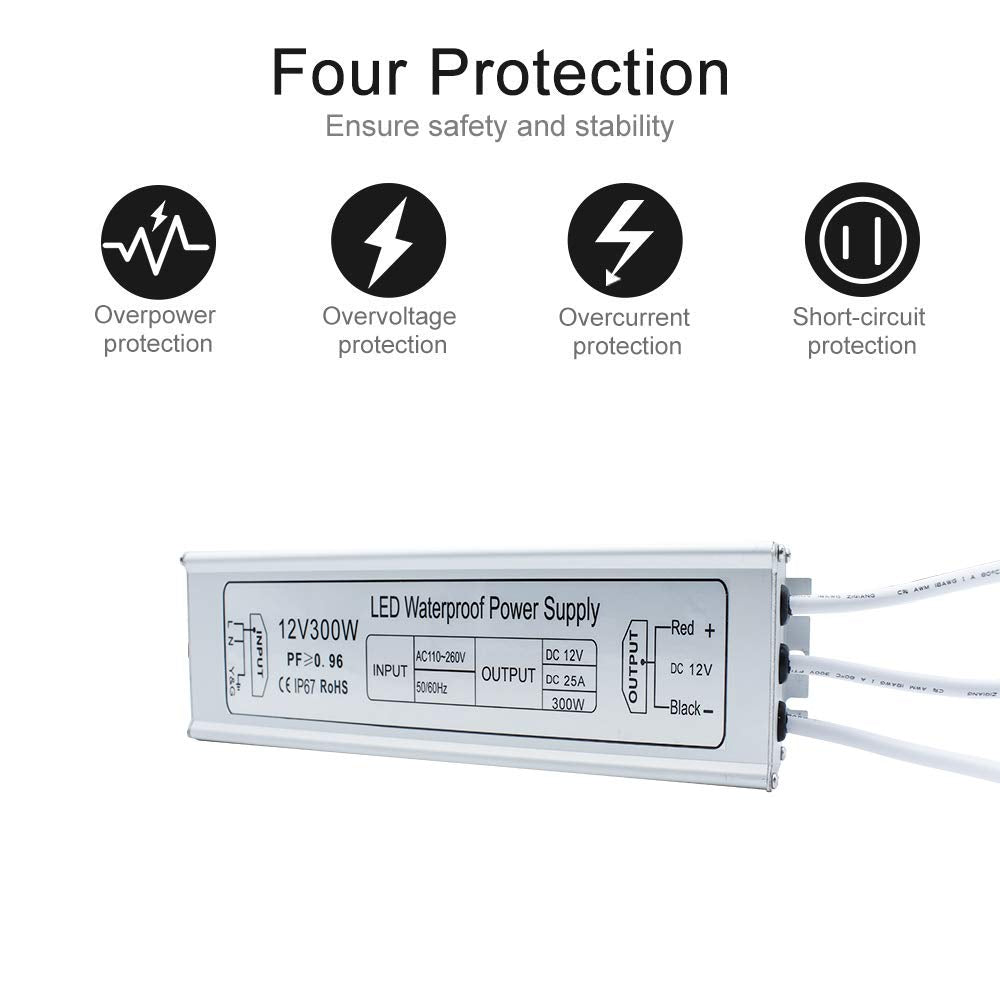

- Protection function: short circuit, overload, overvoltage, over temperature, over-current automatic protection;
- Protection type: Hiccup mode, automatic recovery after troubleshooting;
- Aluminum alloy metal shell, easy to dissipate heat and ensure stability;

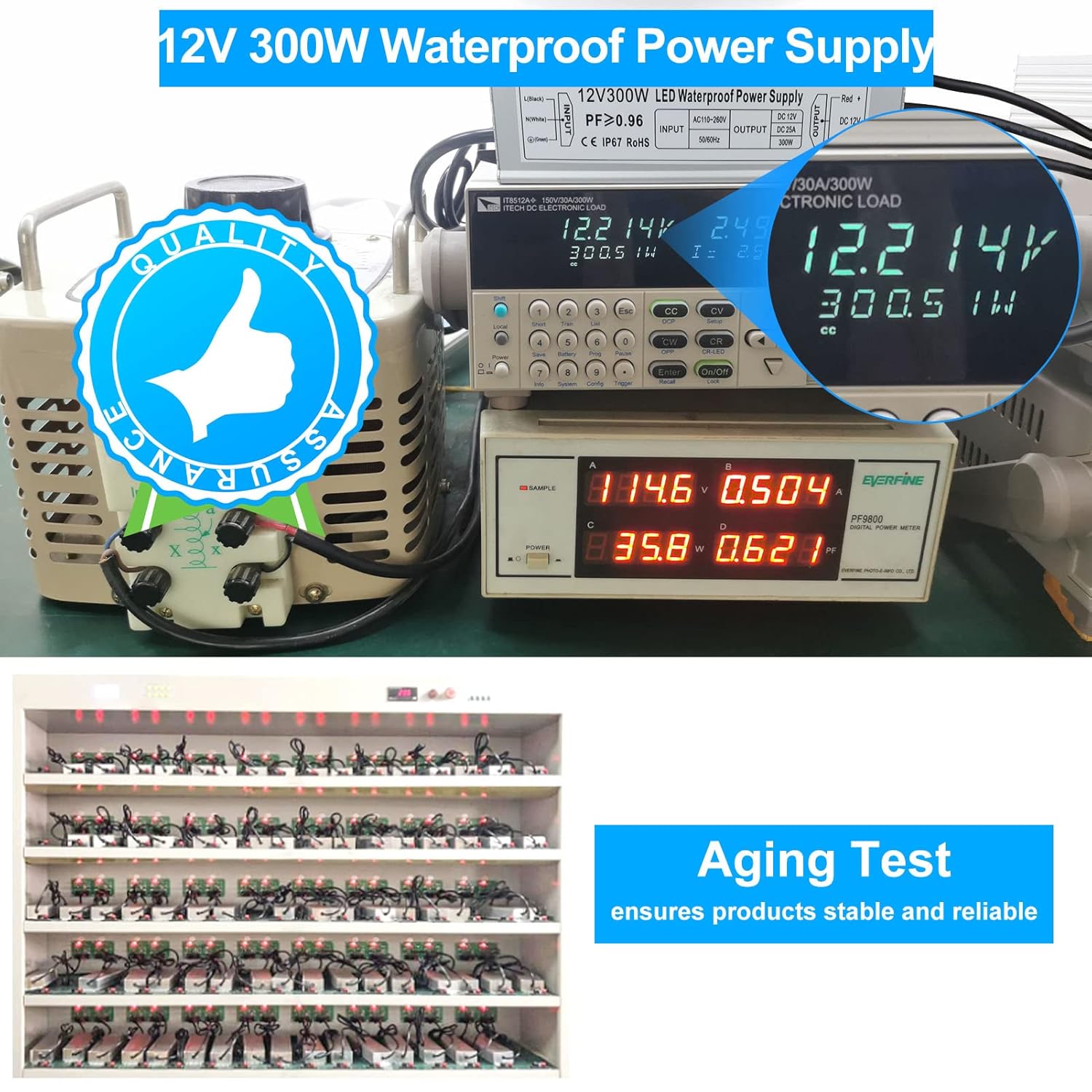

- 100% full load aging test. Small size, light weight, working efficiency up to about 86%
- Natural air convection cooling, IP67 fully sealed package
Specifications
- Input voltage range: 110-260V AC 50/60HZ
- Output power: 300W
- Output: 12V DC 25AW
- Waterproof: IP67
- Work efficiency: 86%
- Operating temperature: - 20~+60 ℃ 20%~90% RH (non condensing)
Wide application

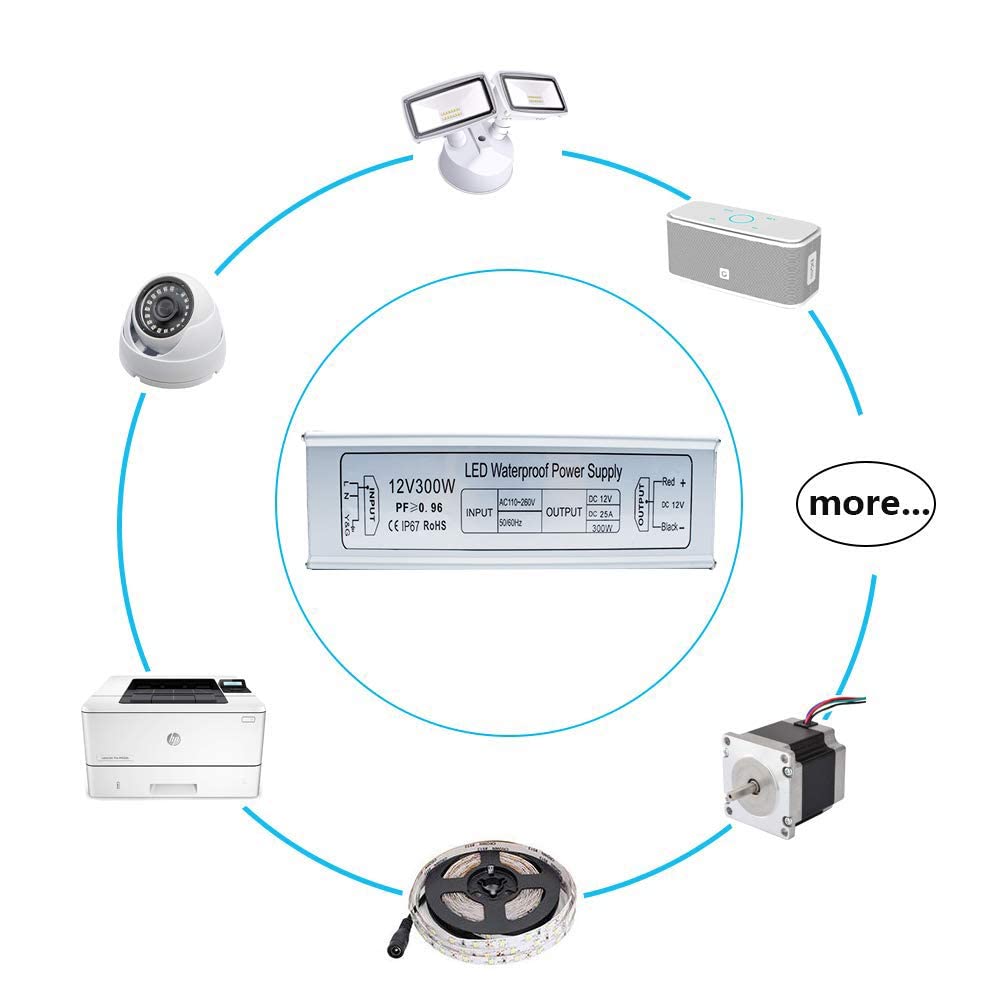

12V power supply suitable for LED light strip; Security camera; Computer project; Outdoor lamp; Interior lamps; Industrial use; LED display lights and any other 12V DC LED lights
Warm Tips!
- Do not disassemble or modify the LED light source !
- Keep children away from high-voltage power supply !
- Please use it under the guidance of professional electricians !
- Please make sure to place the power supply in a well-ventilated environment to efficiently lower its operating temperature. Otherwise, there's a possibility of triggering the over-temperature protection, causing the power supply to temporarily shut down. Once the temperature has cooled down, you can resume using it.
