| Brand | inShareplus |
| Power Source | DC |
| Current Rating | 25 Amps |
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
About this item
- [ Durable and Reliable ] 12V power supply features a sturdy aluminum alloy shell for heat dissipation and long-term stability. With IP67 waterproofing, it withstands harsh conditions and provides safe, reliable power in environments with moisture or humidity
- [ Powerful Output ] Input: 110-260V AC 50/60Hz, Output: 12V DC 25A 300W with three 100W outputs. All wires combined reach 300W. Ac 110v to dc 12v converter use should not exceed 80% of the power for optimal performance
- [Automatic Protection ] Automatic protection for short circuit, overload, over voltage, over current, and high temperature; type: Hiccup mode, auto-recovery after fault condition is removed. Operate at temperatures of -20℃ to +60℃, 20%-90% RH(non condensing)
- [ Wide Range ] 12v power supply perfect for 12V DC LED lights (≤300W). Whether it is indoor or outdoor events, led driver ensure reliable and safe electrical power, enabling the smooth operation of equipment even in challenging conditions
- [ Problem Solving] Our inShareplus seller support team always stands behind our 12v led power supply, so please find us for replacement if you have any quality problems
Product details
- Package Dimensions : 10.94 x 4.06 x 2.24 inches; 2.71 Pounds
- Item model number : IP67 12V 300W
- Date First Available : February 23, 2023
- Manufacturer : inShareplus
- ASIN : B0BWM4NSR4
- Country of Origin : China
| Brand Name | inShareplus |
|---|---|
| Model | IP67 12V 300W |
| Manufacturer | inShareplus |
| Power Source | DC |
|---|---|
| Current Rating | 25 Amps |
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
| Specification Met | Ip67 |
|---|
Product Description

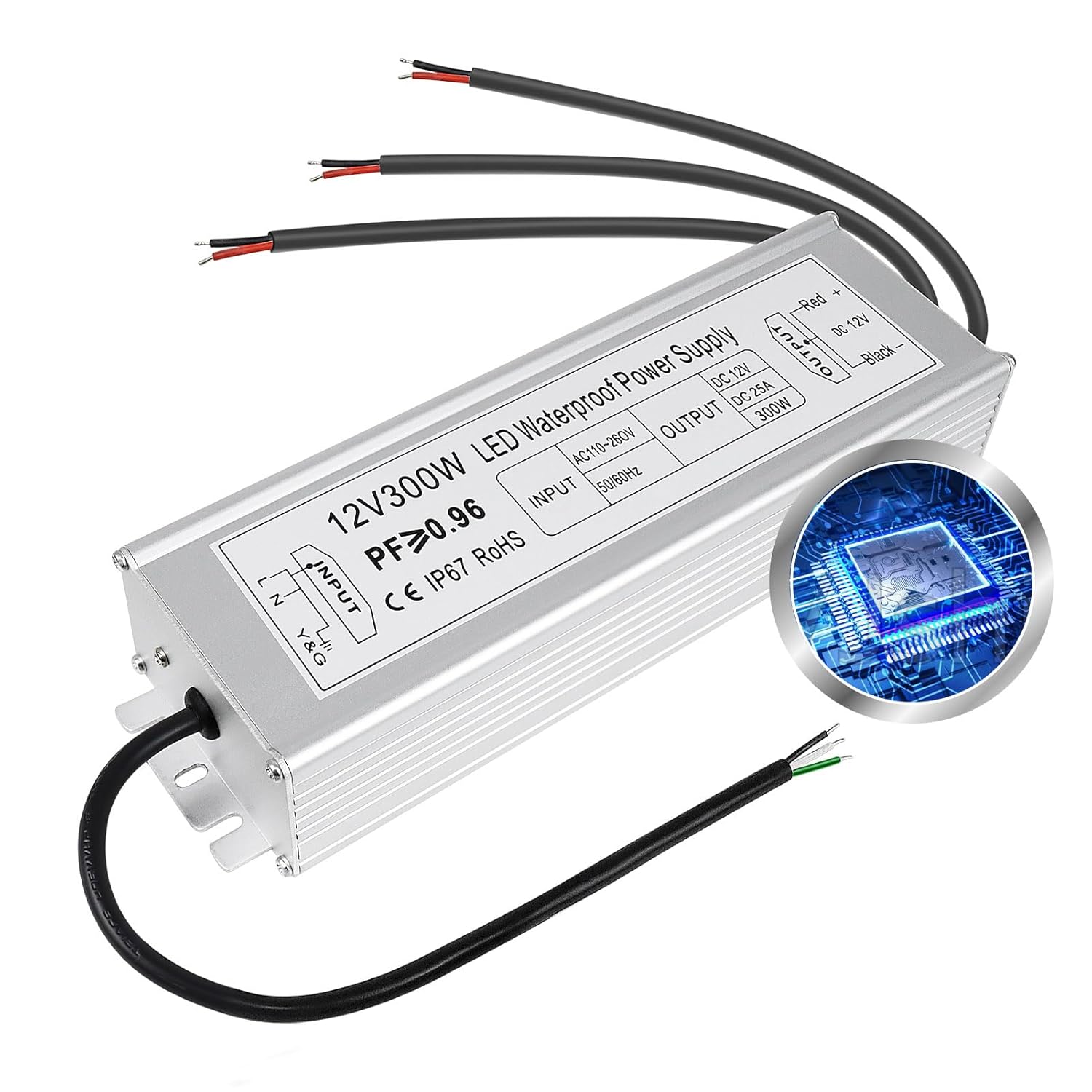

12V 300W Waterproof Power Supply
InShareplus 12V 25A 300W waterproof dc power supply is constant voltage power supply; Compatible with LED light bars, surveillance cameras, LED display lights; Indoor and outdoor lamps; Advertising signs; Wireless routing etc
- The total wattage of outdoor lights or other items shall not exceed the maximum wattage of the power supply (300W)
- 12V LED waterproof power driver cannot be dimmable, and cannot be used together with dimmer and constant current lamp
- Average power score - Line 18 is used for power supply; There are three output lines, each with the same power (100W)

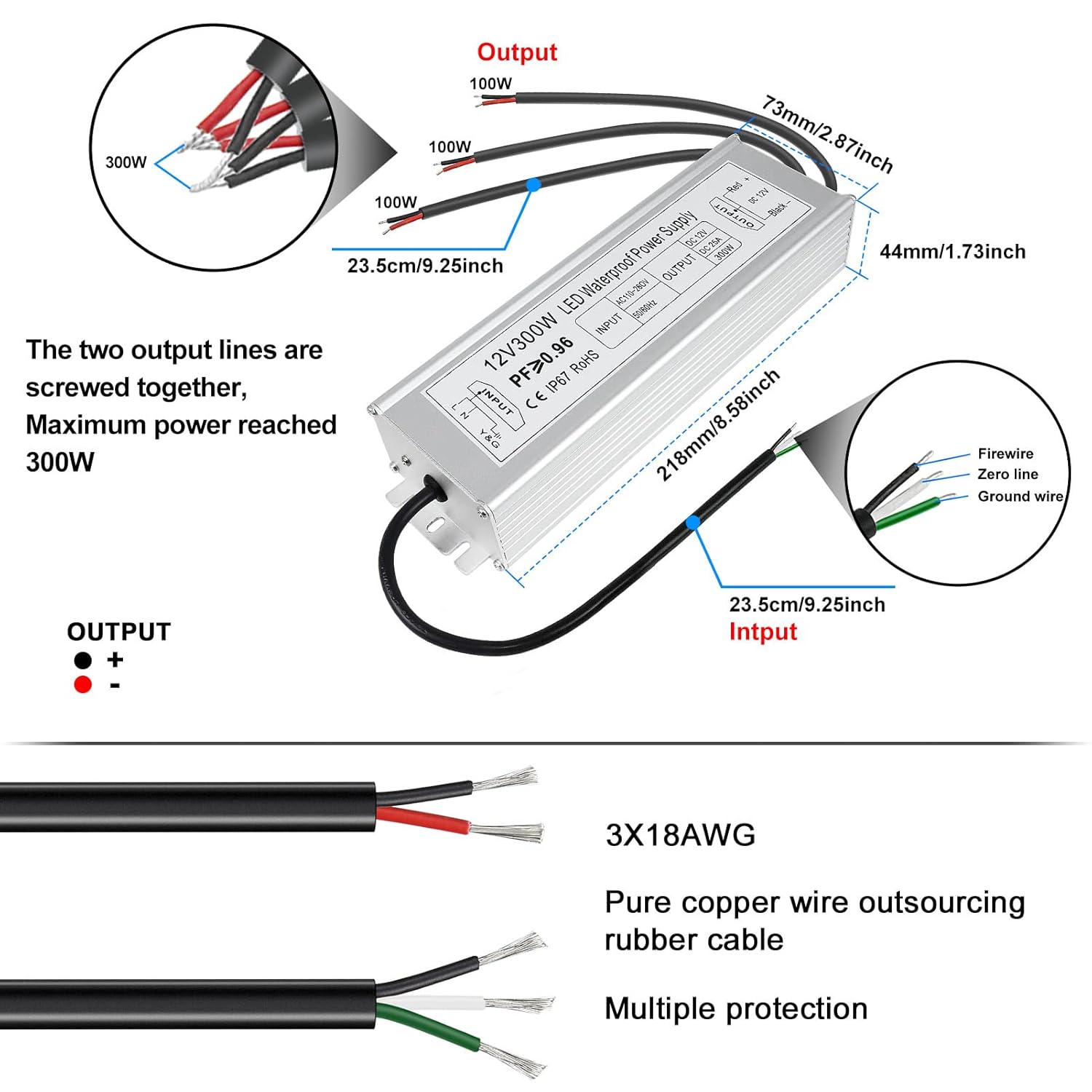

- The output lines of the same power supply can be used in parallel, and the positive and negative poles of the three output lines can be connected accordingly (red line to red line, black line to black line). There are three wires on the output end, each with a red wire and a black wire. The maximum output power of each wire is 100W. If you want to use an output higher than 100W, you need to connect the three wires together by twisting the red wire with the other red wire, and the black wire with the other black wire. The red wire is the live wire, and the black wire is the neutral wire. Please note that in order to prevent the power supply from working at full load, keep the power usage around 80%.
12V 25A 300W Waterproof DC Power Supply Suitable for 12V LED projects, computer projects, outdoor use,LED strip lights

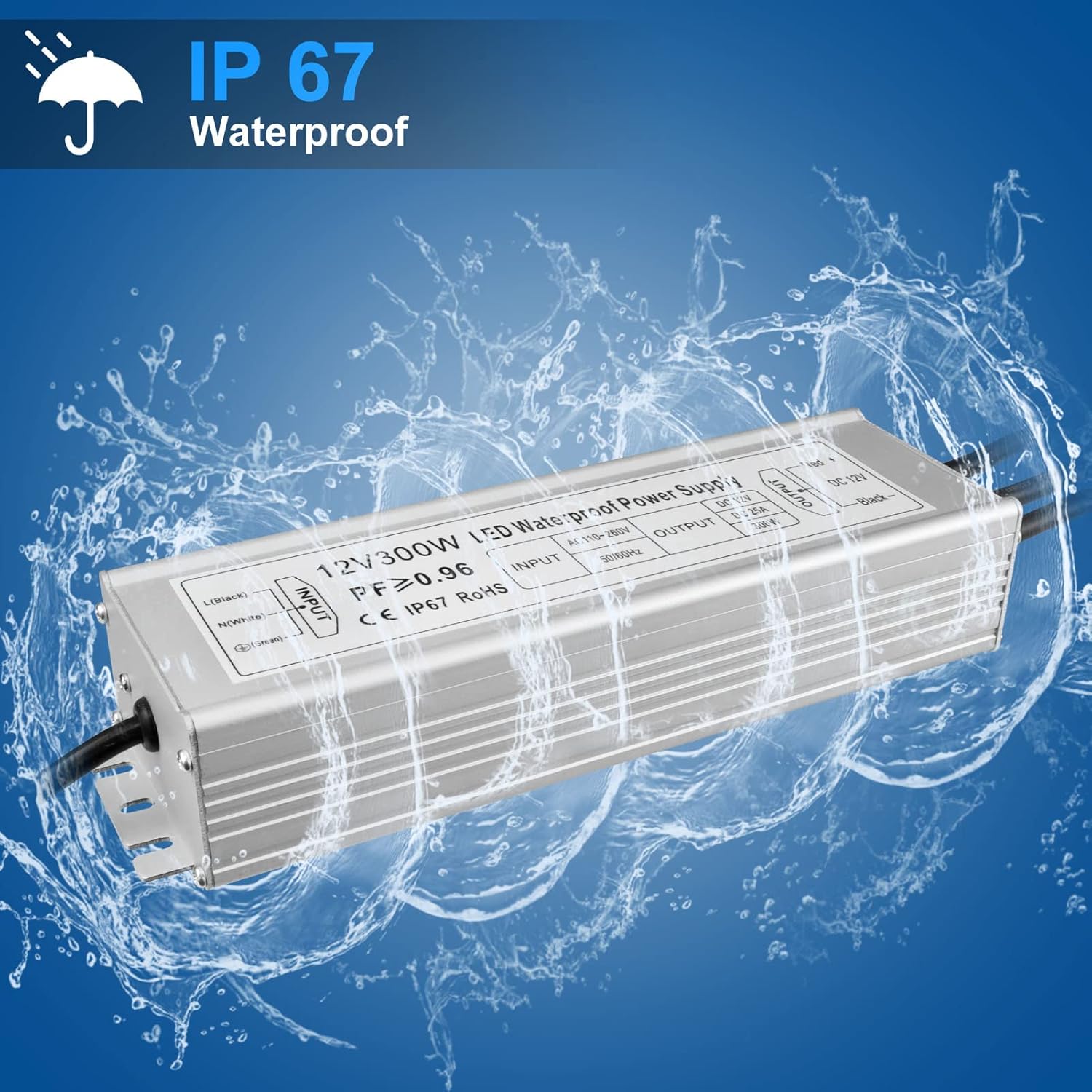

Waterproof IP67

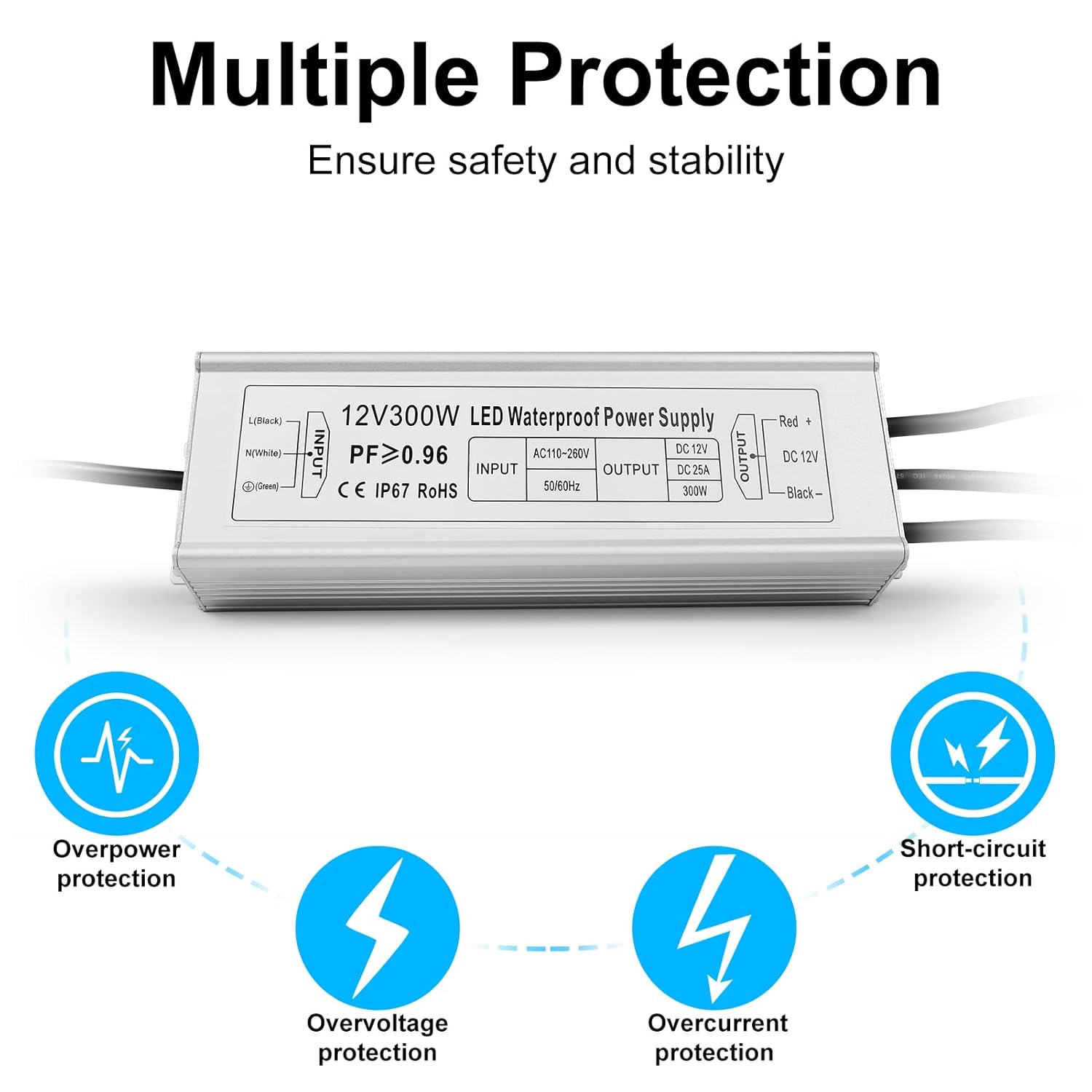

- Protection function: short circuit, overload, overvoltage, over temperature, over-current automatic protection;
- Protection type: Hiccup mode, automatic recovery after troubleshooting;
- Aluminum alloy metal shell, easy to dissipate heat and ensure stability;

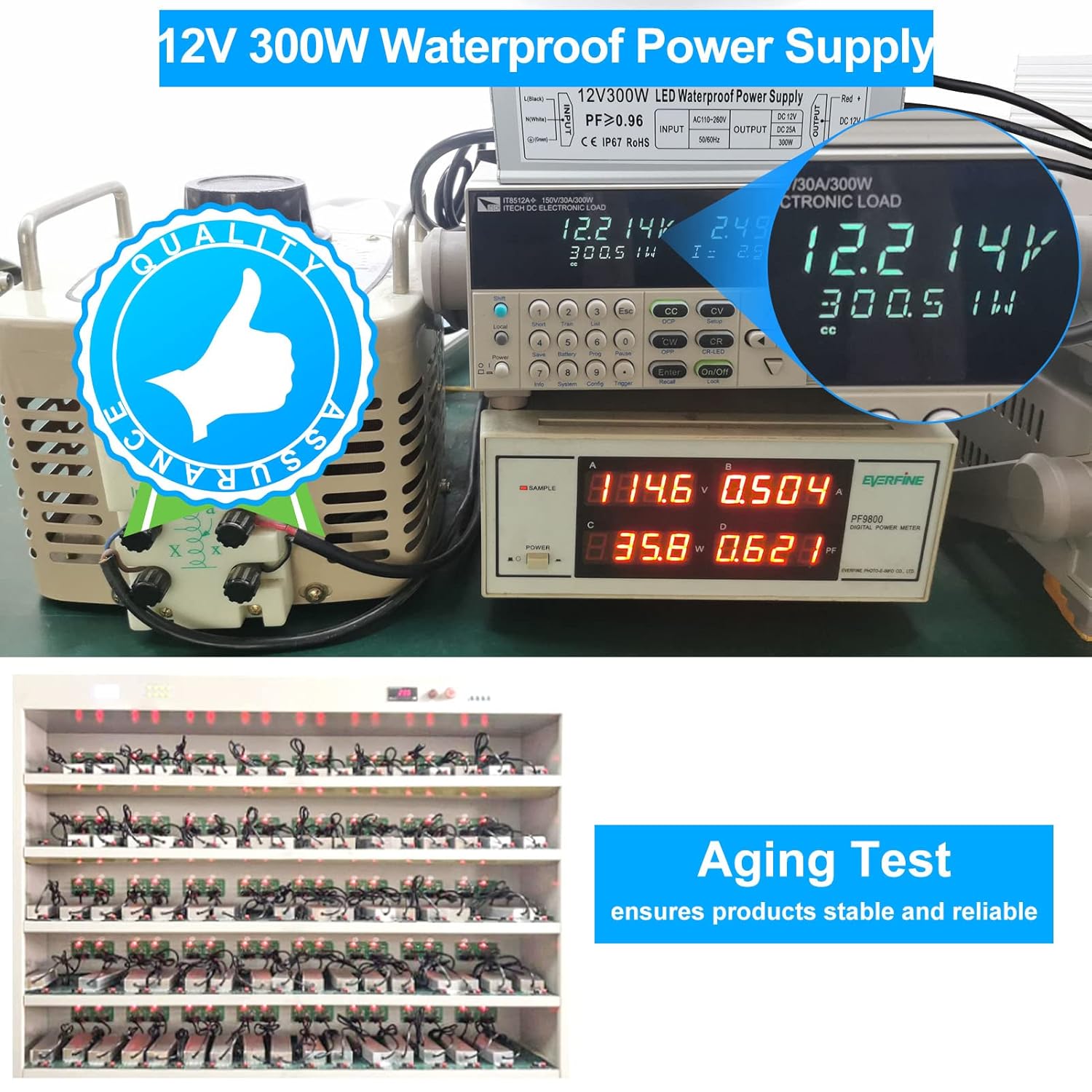

- 100% full load aging test. Small size, light weight, working efficiency up to about 86%
- Natural air convection cooling, IP67 fully sealed package
Specifications
- Input voltage range: 110-260V AC 50/60HZ
- Output power: 300W
- utput: 12V DC 25AW
- waterproof: IP67
- Work efficiency: 86%
- Operating temperature: - 20~+60 ℃ 20%~90% RH (non condensing)
Wide application
Suitable for LED light strip; Security camera; Computer project; Outdoor lamp; Interior lamps; Industrial use; LED display lights and any other 12V DC LED lights
Warm Tips !
Do not disassemble or modify the LED light source !
Keep children away from high-voltage power supply !
Please use it under the guidance of professional electricians !
What's in the box
NO
