How to Choose the Right 5-in-1 Dimmable LED Power Supply

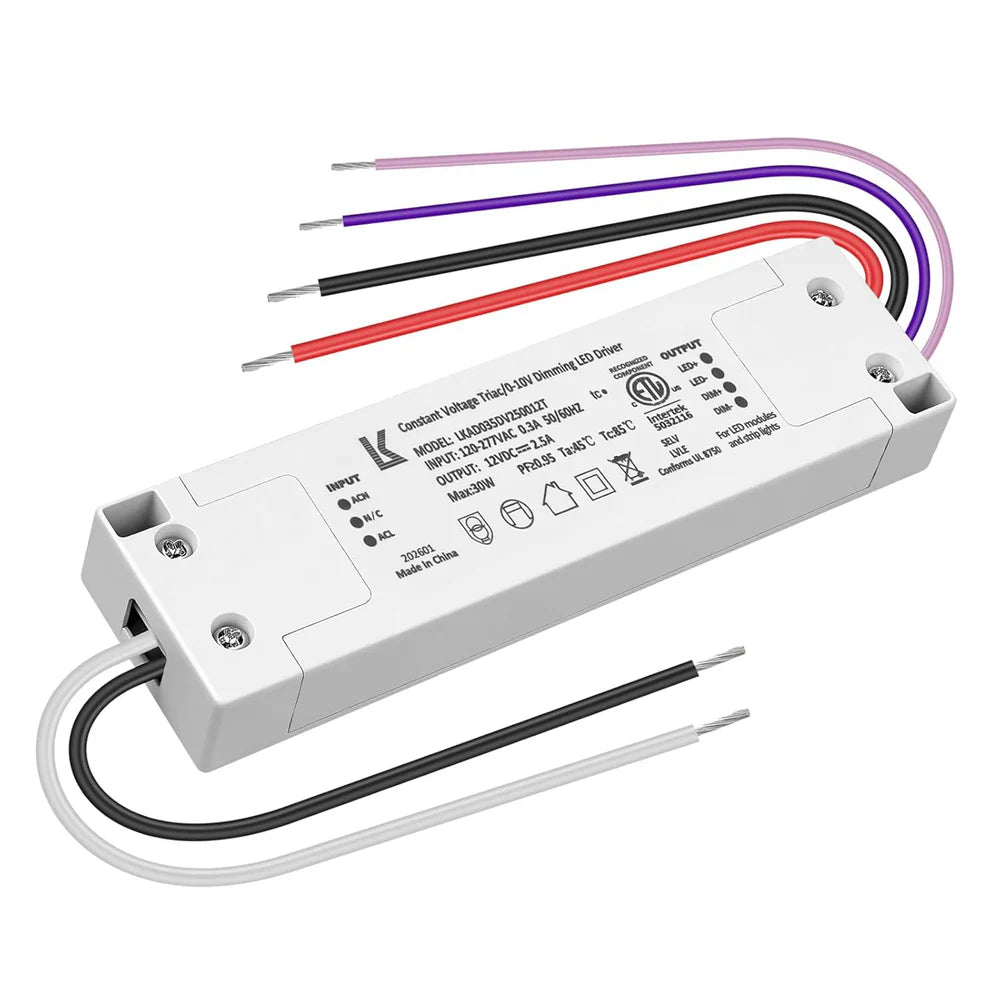

Selecting the right dimmable LED power supply is essential for achieving reliable performance, smooth dimming, and long-term stability in LED lighting systems. Whether you are installing LED strip lights in a residential project or designing a commercial lighting system, understanding voltage, wattage, and dimming compatibility can help ensure the best results.

Understanding 5-in-1 Dimming Technology

Traditional LED drivers are often limited to a single dimming protocol. A 5-in-1 dimmable LED power supply combines multiple dimming methods into one unit, supporting:

  • Triac Dimming
  • ELV Dimming
  • MLV Dimming
  • 0-10V Dimming
  • 1-10V Dimming
  • PWM Dimming

This allows installers and designers to use the same driver across different projects and dimming systems without requiring multiple driver models.

Step 1: Choose the Correct Output Voltage

The first step is selecting the correct output voltage.

12V DC Models

  • Suitable for 12V LED strip lights and low-voltage lighting fixtures.
  • Commonly used for residential lighting and decorative lighting installations.

24V DC Models

  • Suitable for 24V LED strip lights and larger lighting systems.
  • Preferred for longer cable runs and projects requiring improved voltage stability.

Always match the driver output voltage to the voltage requirements of the LED fixtures.

Step 2: Calculate the Required Wattage

To determine the correct driver size:

  1. Calculate the total wattage of all connected LED fixtures.
  2. Add approximately 20% spare capacity.

Example:

  • Total LED Load: 80W
  • Recommended Driver: 100W
  • Total LED Load: 160W
  • Recommended Driver: 200W
  • Total LED Load: 240W
  • Recommended Driver: 300W

This helps improve efficiency and allows room for future expansion.

Step 3: Match the Dimming System

One of the biggest advantages of a 5-in-1 driver is dimming flexibility.

For residential projects, Triac, ELV, and MLV dimming are commonly used with wall dimmers.

For commercial and architectural projects, 0-10V and 1-10V dimming are frequently used with centralized lighting control systems.

PWM dimming is often selected when precise LED brightness control is required.

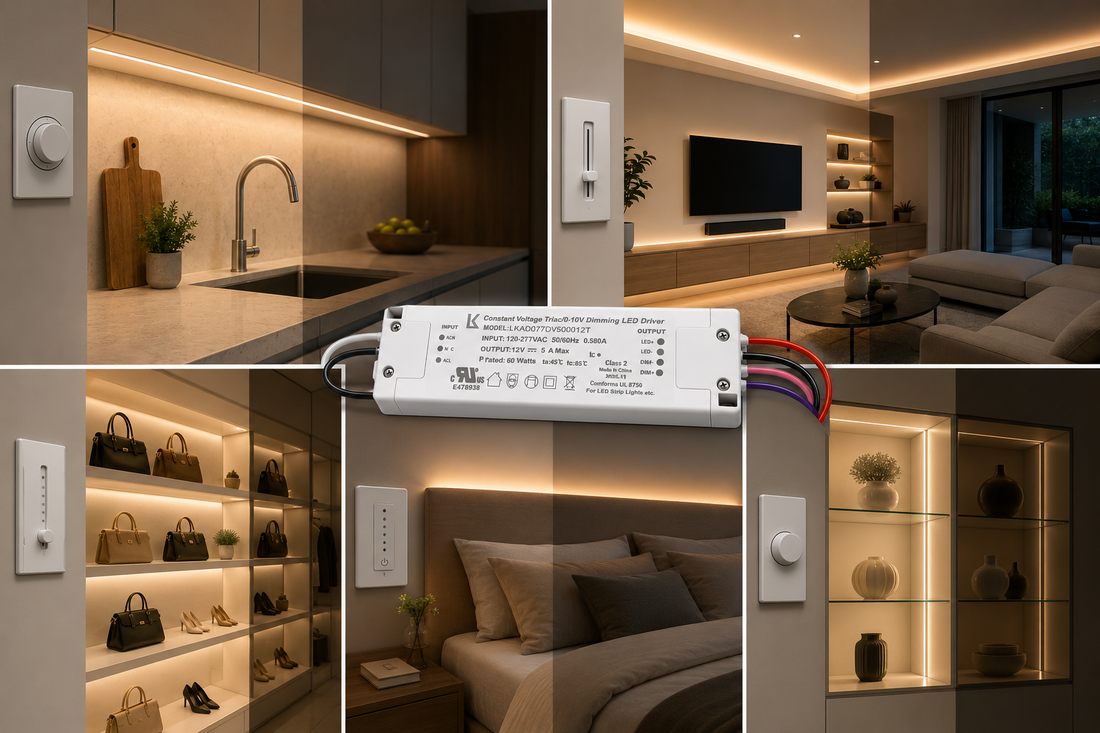

Step 4: Consider the Application

Different projects typically require different driver capacities.

60W–100W Models

  • Cabinet lighting
  • Under-cabinet lighting
  • Residential LED strips
  • Decorative lighting

200W–300W Models

  • Cove lighting
  • Architectural lighting
  • Hospitality lighting
  • Commercial LED strip systems
  • Large-scale indoor lighting projects

Final Thoughts

A properly selected 5-in-1 dimmable LED power supply improves lighting performance, dimming quality, and system reliability. By matching the correct voltage, wattage, and dimming protocol to your project requirements, you can create an efficient and flexible LED lighting system that performs reliably for years to come.
