How I Choose Infrared LED Strip Lights for Machine Vision, Night Vision, and Research Projects
Share
When customers first start looking for infrared LED strip lights, the most common question is usually simple:
"Which wavelength should I choose?"
Many people assume that all infrared LED strips are basically the same. In reality, wavelength selection has a major impact on performance, visibility, camera sensitivity, sensing accuracy, and overall system effectiveness.
Over the years, I've seen customers choose 940nm strips for CCTV projects only to discover their cameras perform much better at 850nm. I've also seen buyers purchase 660nm products expecting invisible infrared illumination, only to find that the LEDs produce a clearly visible deep red glow.
The good news is that selecting the right infrared LED strip becomes much easier once you understand how different wavelengths are actually used.
Understanding What Different Infrared Wavelengths Do
The first step is identifying the purpose of your project.
Although all products in this collection belong to the infrared LED category, the practical differences between 635nm, 660–670nm, 730–735nm, 810nm, 850nm, and 940nm are significant.
For applications where visible red illumination is required, 635nm is usually the preferred option. Unlike traditional infrared wavelengths, 635nm produces a bright red output that can be seen clearly by the human eye. It is often used for display systems, indicators, signage, and specialty lighting projects where visibility is important.
Products such as 635nm 60 LEDs/m DC12V IR LED Light Strip and SMD5050 635nm DC12V IR Rigid LED Light Strip are commonly used for display borders, indicator systems, signage illumination, and light box integration.
For plant cultivation projects, however, most users immediately move into the deep-red and far-red wavelength ranges.

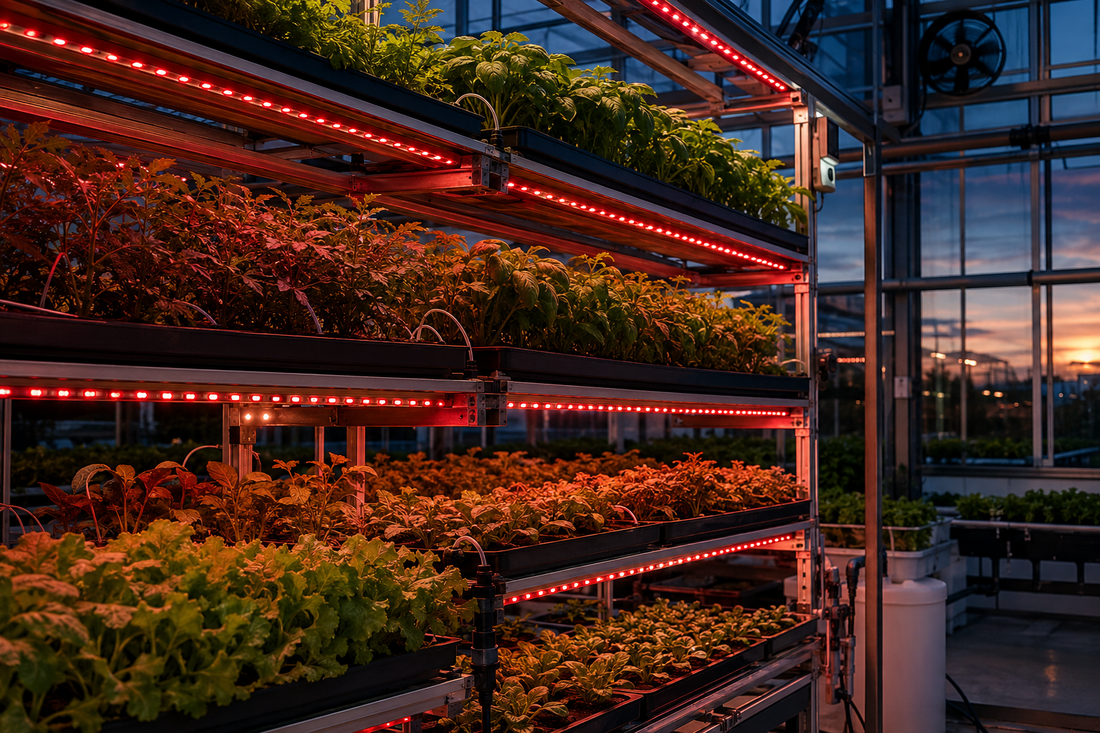

Why 660nm and 730nm Are Widely Used in Horticultural Lighting
When discussing horticultural lighting, 660nm and 730nm are often considered the most important supplemental wavelengths.
The 660–670nm 120 LEDs/m DC12V IR LED Light Strip produces deep-red light that closely aligns with chlorophyll absorption peaks, making it ideal for indoor cultivation, greenhouse systems, vertical farms, and supplemental plant lighting projects.
Many growers also integrate far-red wavelengths such as the 730–735nm 120 LEDs/m DC12V IR LED Light Strip to influence flowering cycles and photoperiod responses.
For fixed grow racks and commercial installations, rigid products such as the SMD5050 660–670nm DC12V IR Rigid LED Light Strip and SMD5050 730–735nm DC12V IR Rigid LED Light Strip provide better structural stability and easier integration into professional systems.
Why 810nm Is Popular in Machine Vision and Industrial Imaging
Machine vision systems have very different requirements compared to horticultural lighting.
Visible light often introduces unwanted reflections, inconsistent image quality, and environmental interference. Near-infrared illumination helps improve image consistency while remaining largely invisible to operators.
This is one reason why 810nm has become a popular wavelength for machine vision and optical sensing applications.
The 810nm 120 LEDs/m DC12V IR LED Light Strip is frequently selected for imaging systems and NIR inspection projects, while the SMD5050 810nm DC12V IR Rigid LED Light Strip is often integrated into machine vision equipment where precise positioning and long-term reliability are critical.
850nm vs 940nm: Which Infrared Wavelength Is Better for Security Systems?
This is probably the most common question among surveillance customers.
The answer depends on whether maximum camera performance or maximum invisibility is the priority.
Most CCTV cameras and night vision systems are optimized for 850nm illumination. Although 850nm LEDs produce a faint visible red glow when viewed directly, they typically deliver stronger infrared output and better camera sensitivity.
Products such as the 850nm 120 LEDs/m DC12V IR LED Light Strip and the SMD5050 850nm DC12V IR Rigid LED Light Strip are widely used in CCTV systems, security monitoring projects, perimeter protection installations, and outdoor surveillance applications.
However, some environments require infrared illumination that is almost completely invisible.
In those situations, 940nm becomes the preferred solution. The output is nearly invisible to the human eye, making products such as the 940nm 120 LEDs/m DC12V IR LED Light Strip and the SMD2835 940nm DC12V IR Rigid LED Light Strip commonly used in face recognition systems, gesture sensing devices, smart sensors, and invisible monitoring applications.
Flexible vs. Rigid Infrared LED Strips
After selecting the wavelength, the next decision is choosing between flexible and rigid strip structures.
Flexible infrared LED strips are generally better suited for curved surfaces, custom installations, prototype development, laboratory projects, and applications where installation flexibility is important.
Rigid infrared LED strips are designed for fixed installations where stability, heat dissipation, and long-term reliability are more important. They are commonly used in machine vision equipment, industrial inspection systems, security installations, and production environments.
In most professional applications, rigid strips offer superior structural stability and thermal performance, while flexible strips provide greater installation freedom.
Final Recommendations
If you're selecting an infrared LED strip for the first time, start by identifying the application rather than focusing on the strip structure.
- 635nm → Display systems and visible red indicators
- 660–670nm → Plant growth lighting
- 730–735nm → Flowering and photoperiod control
- 810nm → Machine vision and industrial imaging
- 850nm → CCTV and night vision systems
- 940nm → Face recognition and invisible infrared applications
Once the wavelength has been determined, choosing between flexible and rigid strip formats becomes much more straightforward.
In practice, selecting the correct wavelength has a far greater impact on system performance than selecting the strip format itself. Following this approach will help you avoid costly trial and error while finding the most effective infrared LED strip solution for your project.
