inShareplus 400W 12V Power Supply, AC 90-140V to DC 12 Volt 33.3A LED Driver, IP67 Waterproof Outdoor Low Voltage Transformer with Standard 3-Prong Plug for LED Light and Other 12V Products

About this item

• 12v power supply has a sturdy aluminum alloy metal shell, which facilitates heat dissipation and ensures stability, durability. Sealed and IP67 waterproof 12v dc transformer can provide reliable and safe electrical power in humidity, or water exposure
• Input: 90-140V AC 50/60HZ, Output: 12V DC 33.33A 400W. Aluminum alloy housing easy for heat dissipation; Suggestion: Used should not exceed 85% of the power of the 12 volt power supply
• Converts AC 110V to DC 12V, 2 output,each output is 200W, total is 400W, widely use for 12V products (≤400W). 12V LED driver ensure reliable and safe electrical power, enabling the smooth operation of equipment even in challenging conditions
• Automatic protection for: short circuit, overload, over voltage, over current, high temperature; type: Hiccup mode, auto-recovery after fault condition is removed. Operating at temperatures of -20℃ to +60℃, 20%-90%RH (non condensing)
• Our inShareplus seller support team always stand behind our 12v DC LED power supply in any way, so please contact us for replacement if you have any quality problems

Product details

Product Description

12V 400W Waterproof DC Led Power Supply Suitable for 12V LED projects, computer projects, outdoor use,LED strip lights

12V 400W dc Led Power Supply :

inShareplus 12V 33.33A 400W dc waterproof power supply is constant voltage power supply; Compatible with LED light bars, surveillance cameras, LED display lights; Indoor and outdoor lamps; Advertising signs; Wireless routing; Switch, etc



• Please note that:





1. The total wattage of outdoor lights or other items shall not exceed the maximum wattage of the power supply (400W)
2. 12v LED dc power supply cannot be dimmable, and cannot be used together with dimmer and constant current lamp
3. Average power score - Line 18 is used for power supply; There are two output lines, each with the same power (200W)
4. Please make sure to place the power supply in a well-ventilated environment to efficiently lower its operating temperature. Otherwise, there's a possibility of triggering the over-temperature protection, causing the power supply to temporarily shut down. Once the temperature has cooled down, you can resume using it.



Waterproof IP67

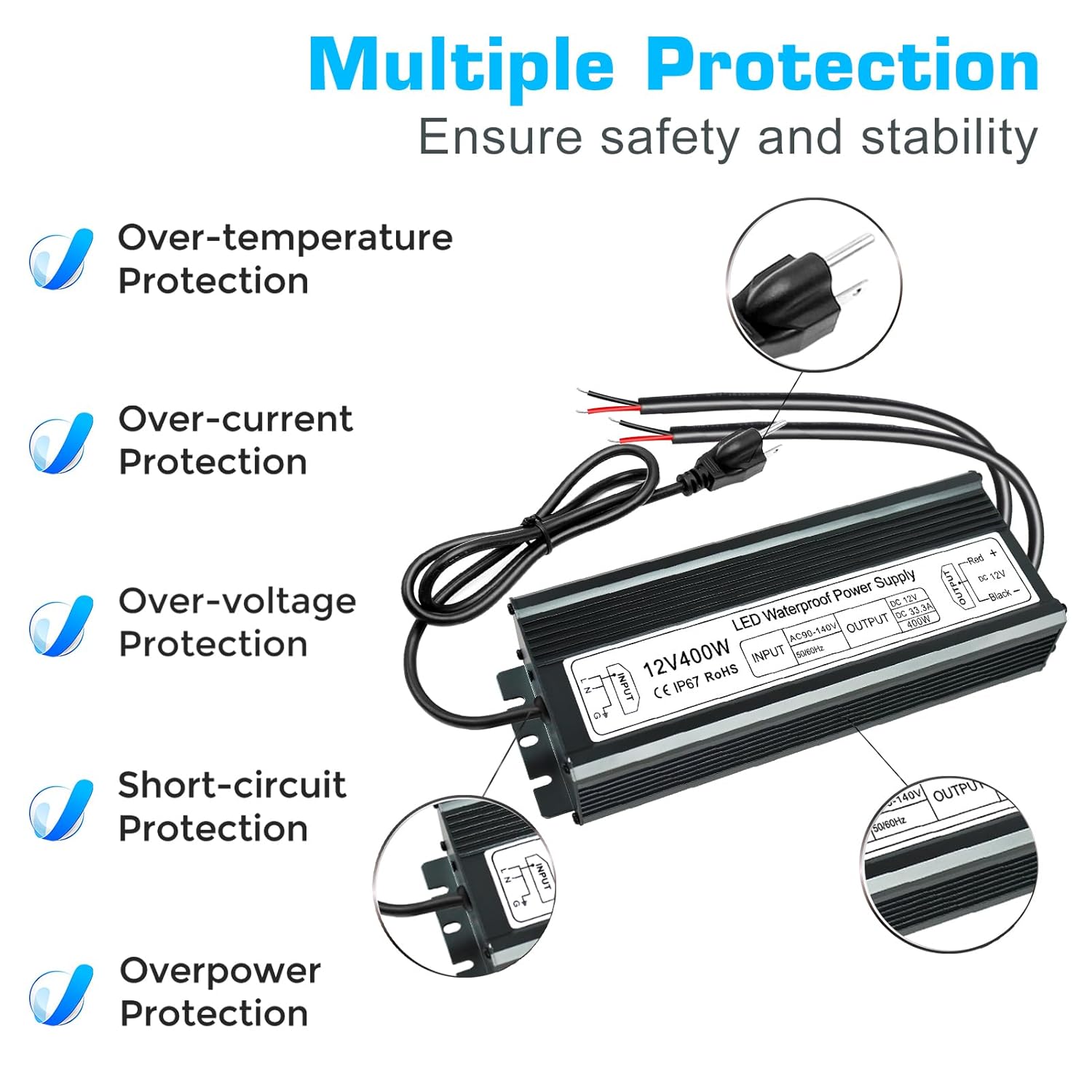

• Protection function: short circuit, overload, overvoltage, over temperature, over-current automatic protection;
• Protection type: Hiccup mode, automatic recovery after troubleshooting;
• Aluminum alloy metal shell, easy to dissipate heat and ensure stability;
• 100% full load aging test. Small size, light weight, working efficiency up to about 86%
• Natural air convection cooling, IP67 fully sealed package



Specifications



1. Input voltage range: 90-140V AC 50/60HZ
2. Output power: 400W
3. Output: 12V DC 33.33A
4. Waterproof: IP67
5. Work efficiency: 86%

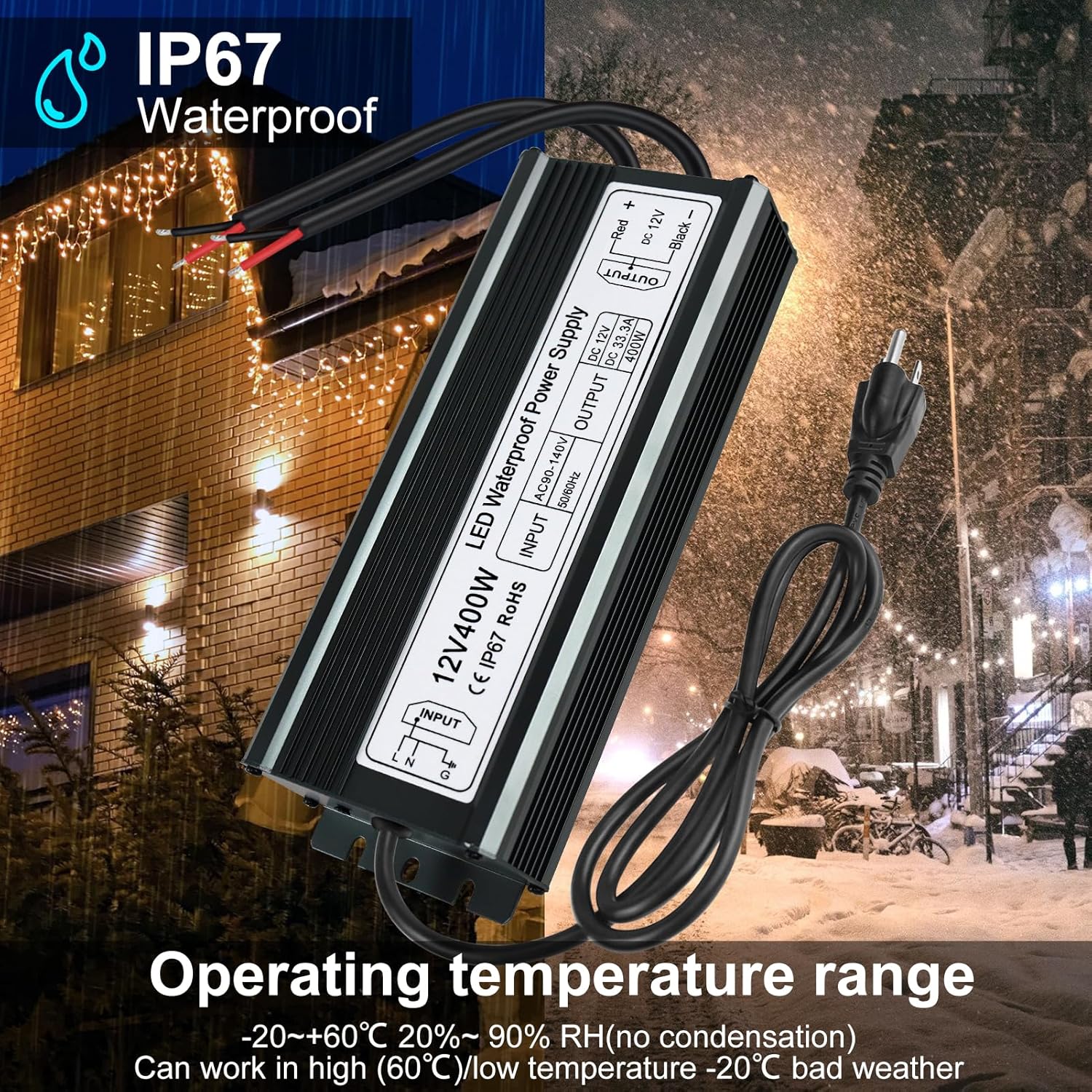

6. Operating temperature: - 20~+60 ℃ 20%~90% RH (non condensing)



Wide application

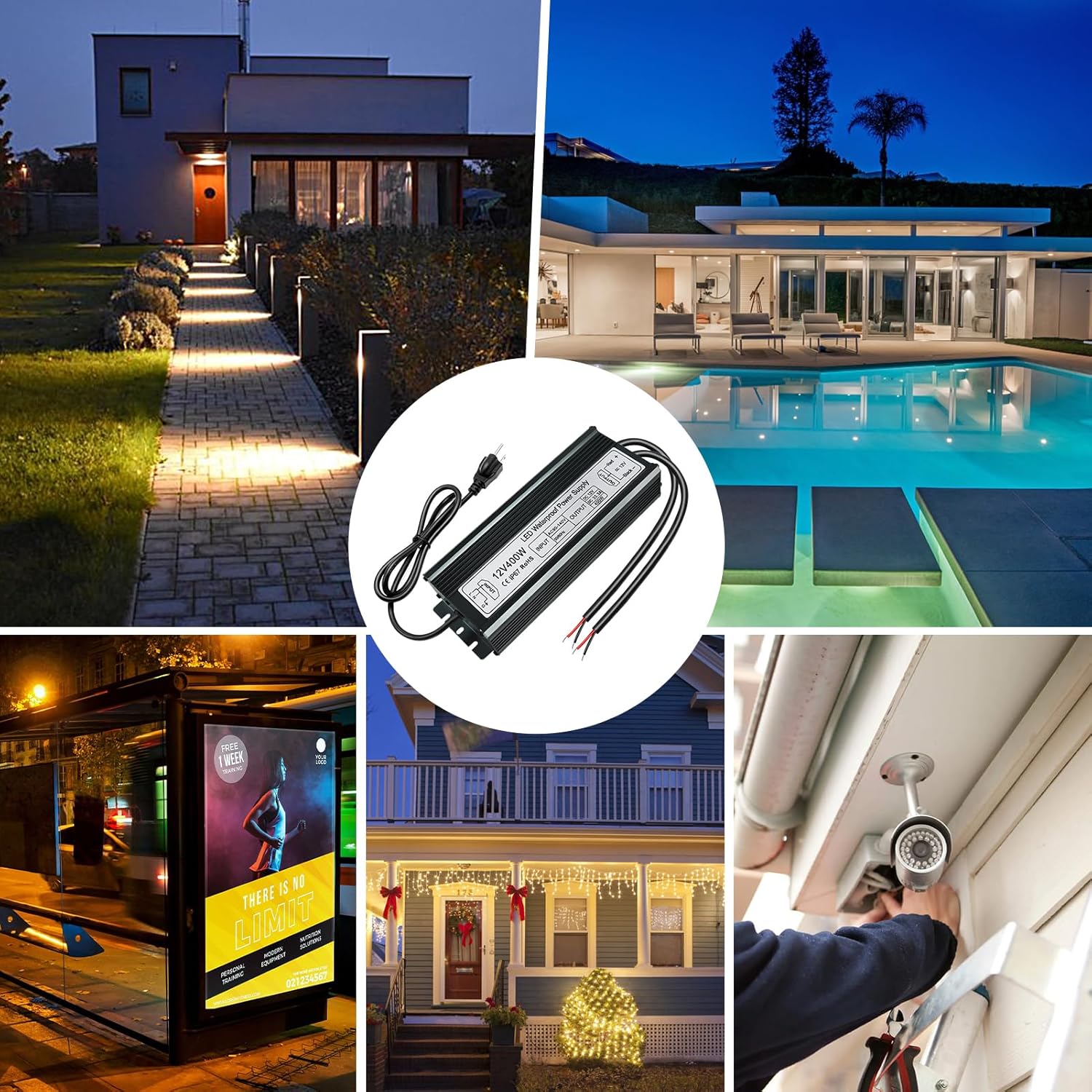

12 dc power supply suitable for LED light strip; Security camera; Computer project; Outdoor lamp; Interior lamps; Industrial use; LED display lights and any other 12V DC LED lights

What's in the box
