| Brand Name | inShareplus |
|---|---|
| Model | ISP-US-FSDY-24V-400W |
| UPC | 613965273305 |
| Manufacturer | inShareplus |
| Power Source | Corded Electric |
|---|---|
| Current Rating | 16.6 Amps |
| Maximum Frequency | 60 Hz |
| Minimum Frequency | 50 Hz |
| Specification Met | Ip67 |
|---|
About this item
- 24V power supply features a robust aluminum alloy shell for heat dissipation, stability, durability, and reliability. IP67 design withstands harsh conditions, ensuring safe, reliable power in environments with moisture, humidity, or water exposure
- Input: 90-140V AC 50/60HZ, Output: 24V DC 16.6A 400W. Suggestion: The power used should not exceed 80% of the power of the 24v dc power supply
- Converts 110V AC to 24V DC, 24v dc led driver widely use for LED strip lights and other 24V DC porducts(≤400W). IP67 waterproof power supply ensures reliable, safe power, maintaining smooth operation in challenging conditions
- Automatic
- protection: short circuit, overload, over voltage, over current, high temperature. type: Hiccup mode, auto-recovery after fault condition is removed. Operates at -20℃ to +60℃ and 20% to 90% RH (non-condensing) without performance impact. Ensures reliable operation and safety in demanding conditions
- inShareplus seller support team always stand behind our 24v transformer in any way, so please contact us for replacement if you have any quality problems
Product details

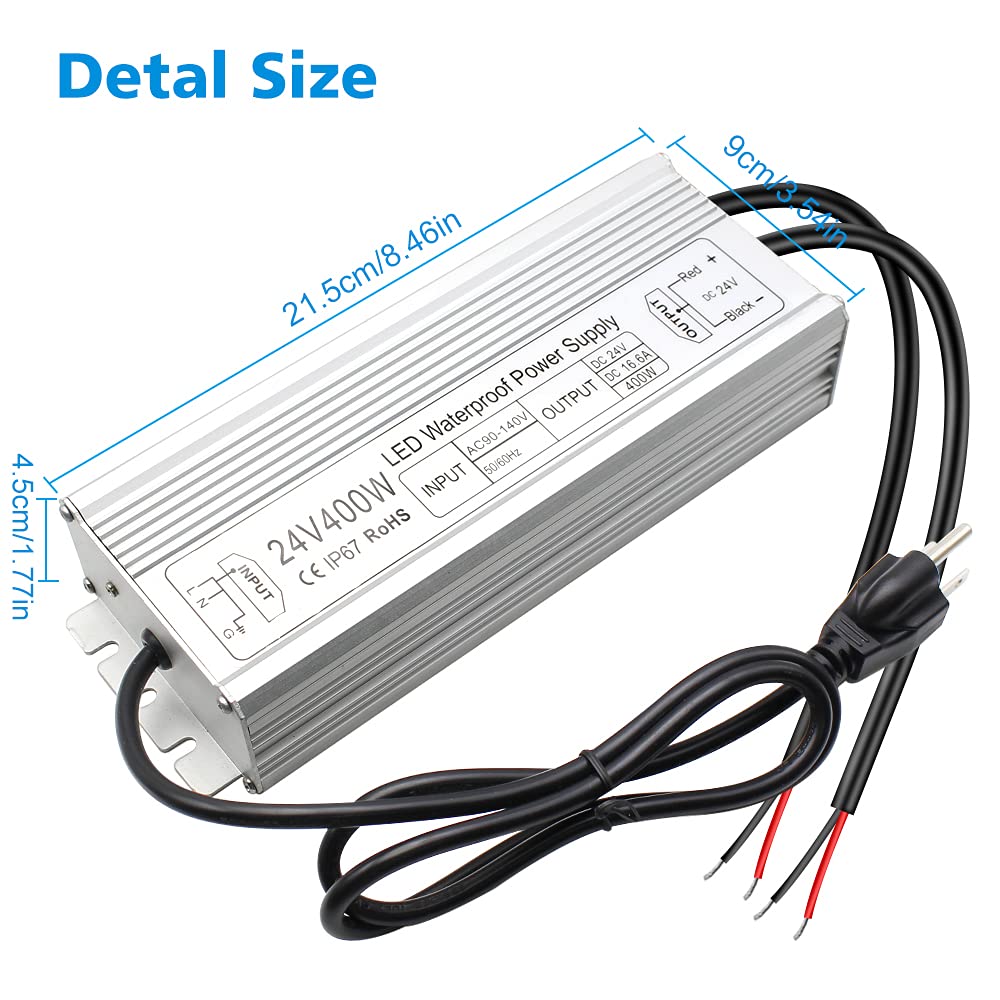

- Package Dimensions : 11.1 x 5.35 x 2.28 inches; 3.44 Pounds
- Item model number : ISP-US-FSDY-24V-400W
- Date First Available : April 22, 2021
- Manufacturer : inShareplus
- ASIN : B093628N9L
- Country of Origin : China
Product Description
24V 16.6A 400W Waterproof DC Led Power Supply Suitable for 24V LED projects, computer projects, outdoor use,LED strip lights

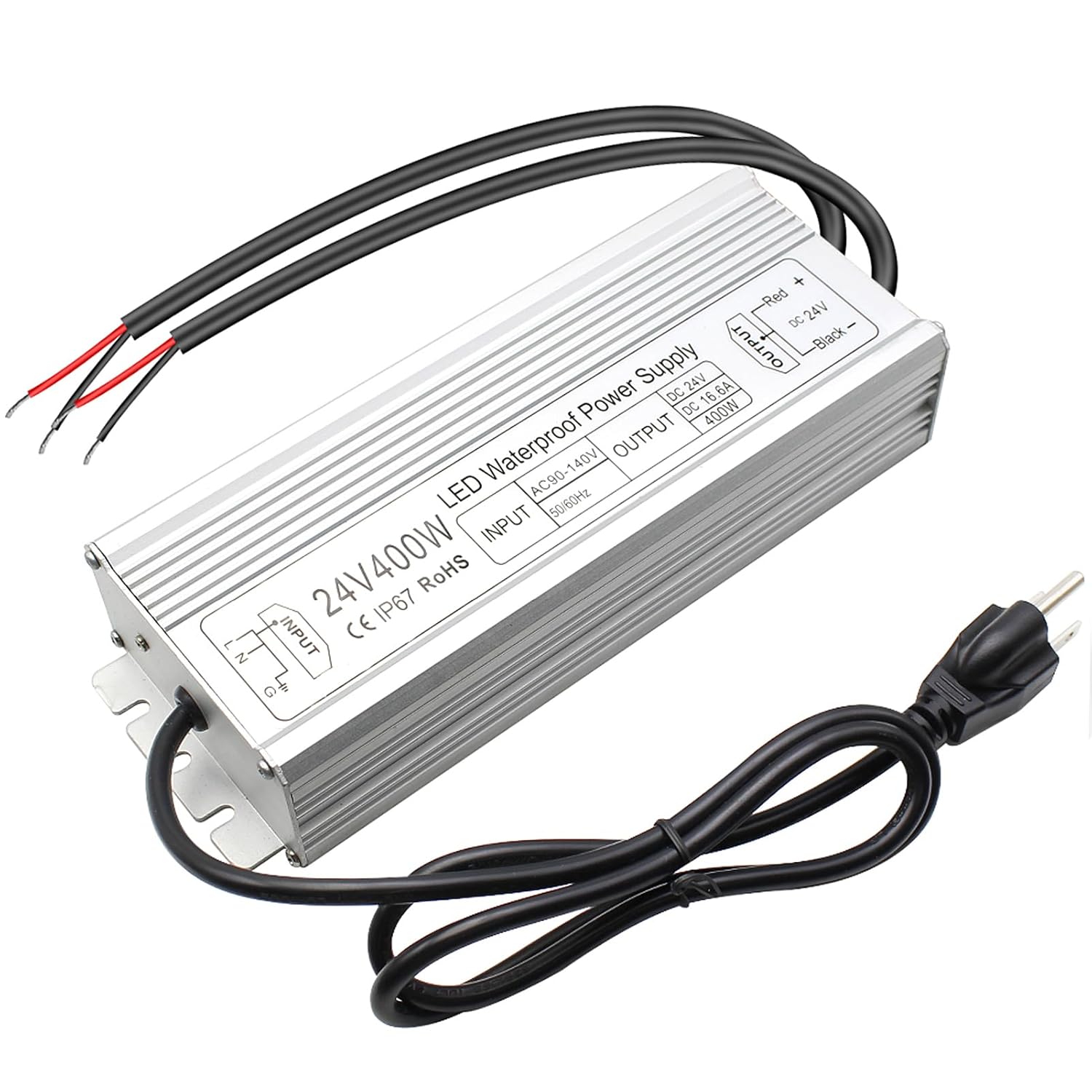

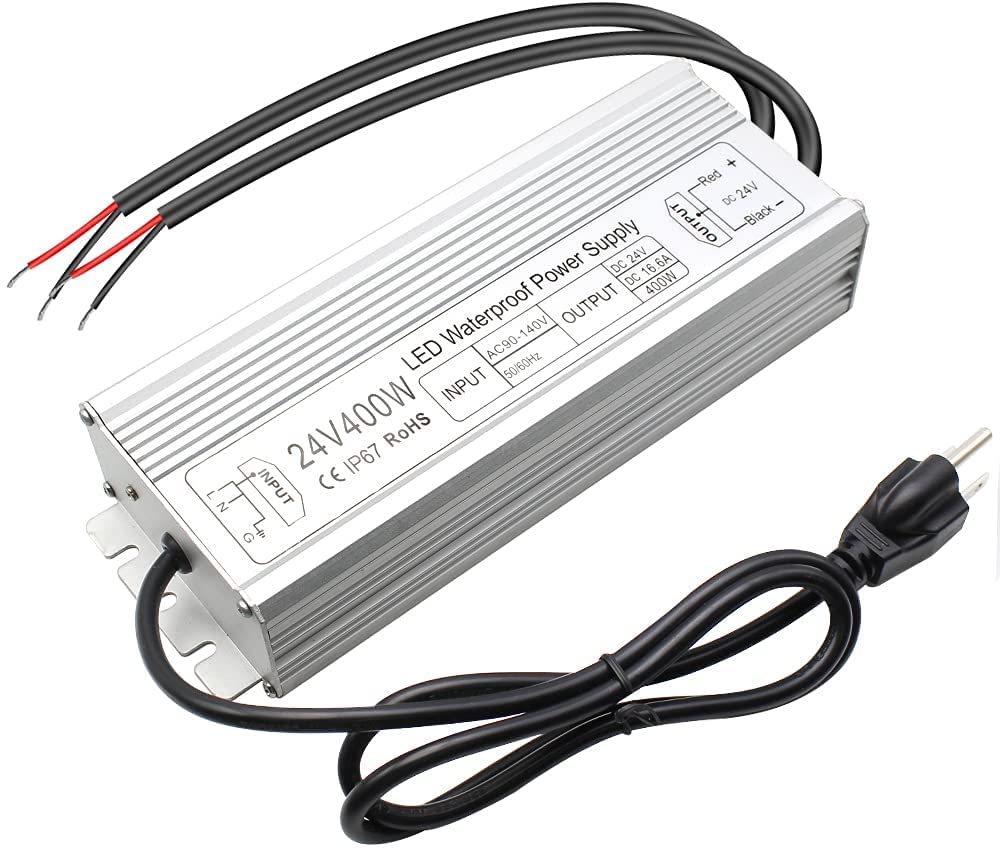

24V 400W Waterproof DC Power Supply

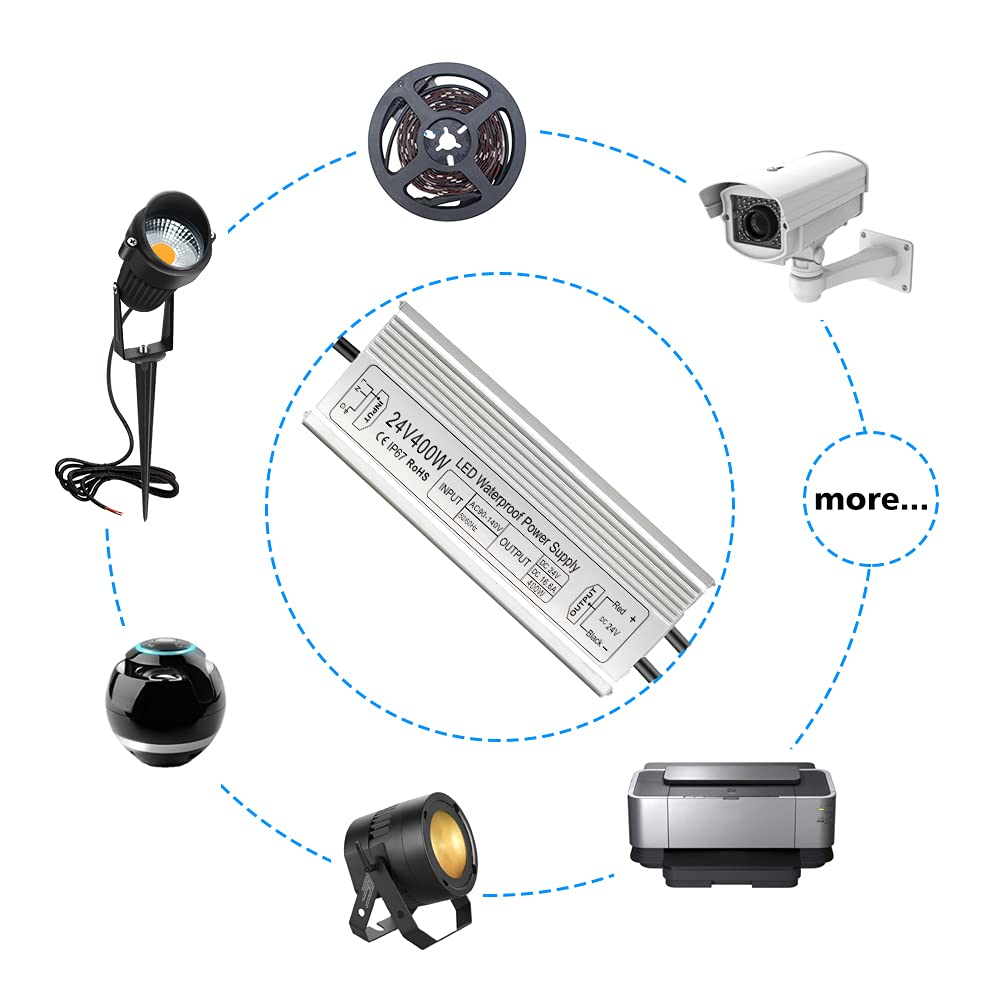

InShareplus 24 volt 16.6A 400W ac to dc power supply is constant voltage power supply; Compatible with LED light bars, surveillance cameras, LED display lights; Indoor and outdoor lamps; Advertising signs; Wireless routing etc
- The total wattage of outdoor lights or other items shall not exceed the maximum wattage of the power supply (400W)
- LED waterproof power driver cannot be dimmable, and cannot be used together with dimmer and constant current lamp

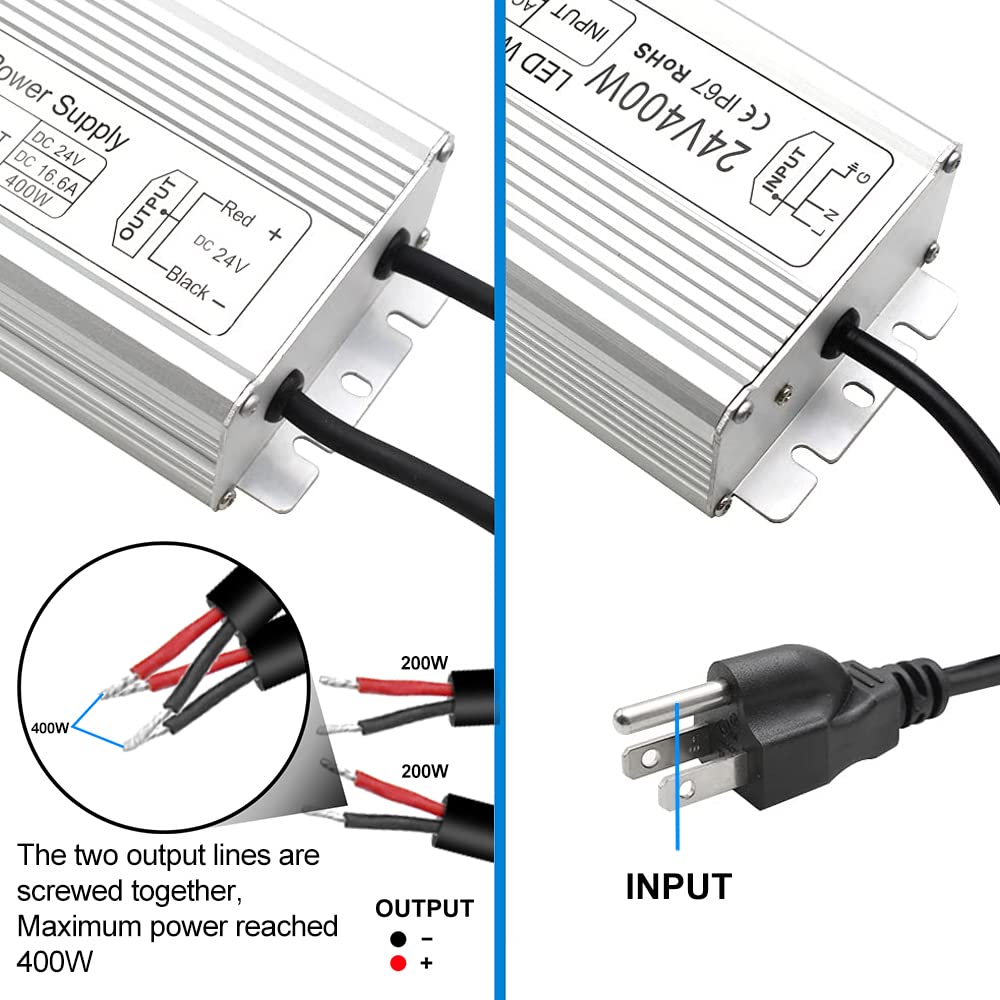

- Average power score - Line 18 is used for power supply; There are two output lines, each with the same power (200W)
- The output lines of the same power supply can be used in parallel, and the positive and negative poles of the two output lines can be connected correspondingly. （Please Be Safe）There are two wires on the output end, each with a red wire and a black wire. The maximum output power of each wire is 200W. If you want to use an output higher than 200W, you need to connect the two wires together by twisting the red wire with the other red wire, and the black wire with the other black wire. The red wire is the live wire, and the black wire is the neutral wire. Please note that in order to prevent the power supply from working at full load, keep the power usage around 80%.

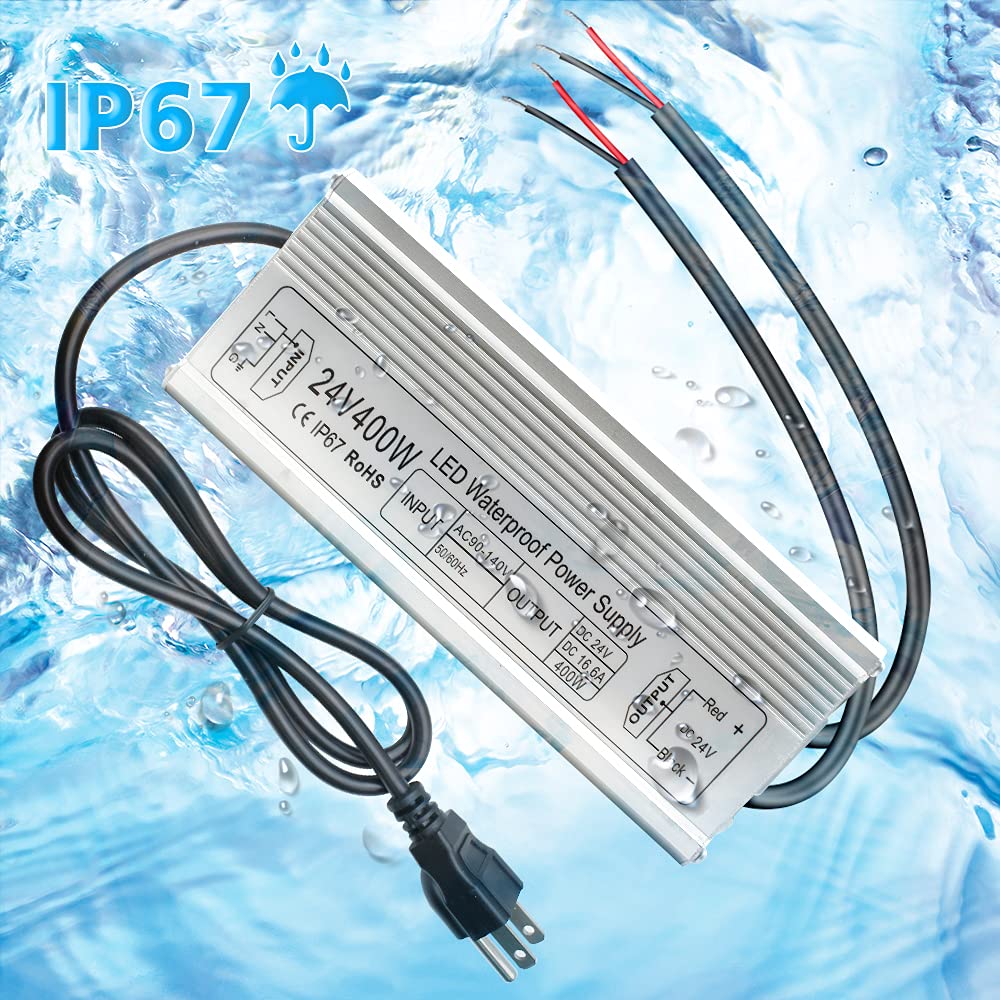

Waterproof IP67

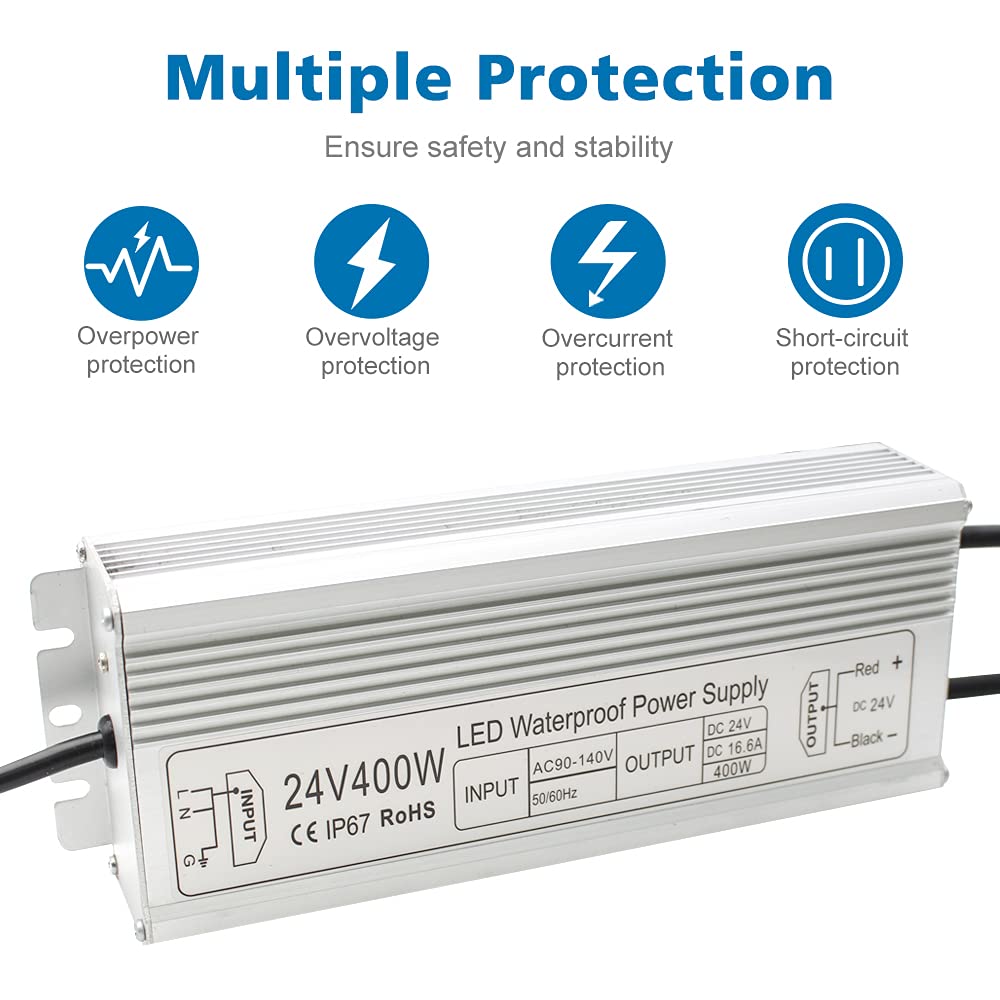

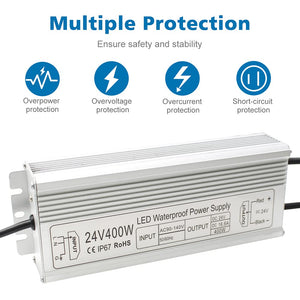

- Protection function: short circuit, overload, overvoltage, over temperature, over-current automatic protection;
- Protection type: Hiccup mode, automatic recovery after troubleshooting;
- Aluminum alloy metal shell, easy to dissipate heat and ensure stability;
- 100% full load aging test. Small size, light weight, working efficiency up to about 86%
- Natural air convection cooling, IP67 fully sealed package
Specifications
- Input voltage range: 90-140V AC 50/60HZ
- Output power: 400W
- Output: 24V DC 16.6AW
- Waterproof: IP67
- Work efficiency: 86%
- Operating temperature: - 20~+60 ℃ 20%~90% RH (non condensing)
Wide application
IP67 waterproof power supply 24v suitable for LED light strip; Security camera; Computer project; Outdoor lamp; Interior lamps; Industrial use; LED display lights and any other 24V DC LED lights
Warm Tips !
✔ Do not disassemble or modify the LED light source !
✔ Keep children away from high-voltage power supply !
✔ Please use it under the guidance of professional electricians !
✔ Please keep the environment well ventilated!
