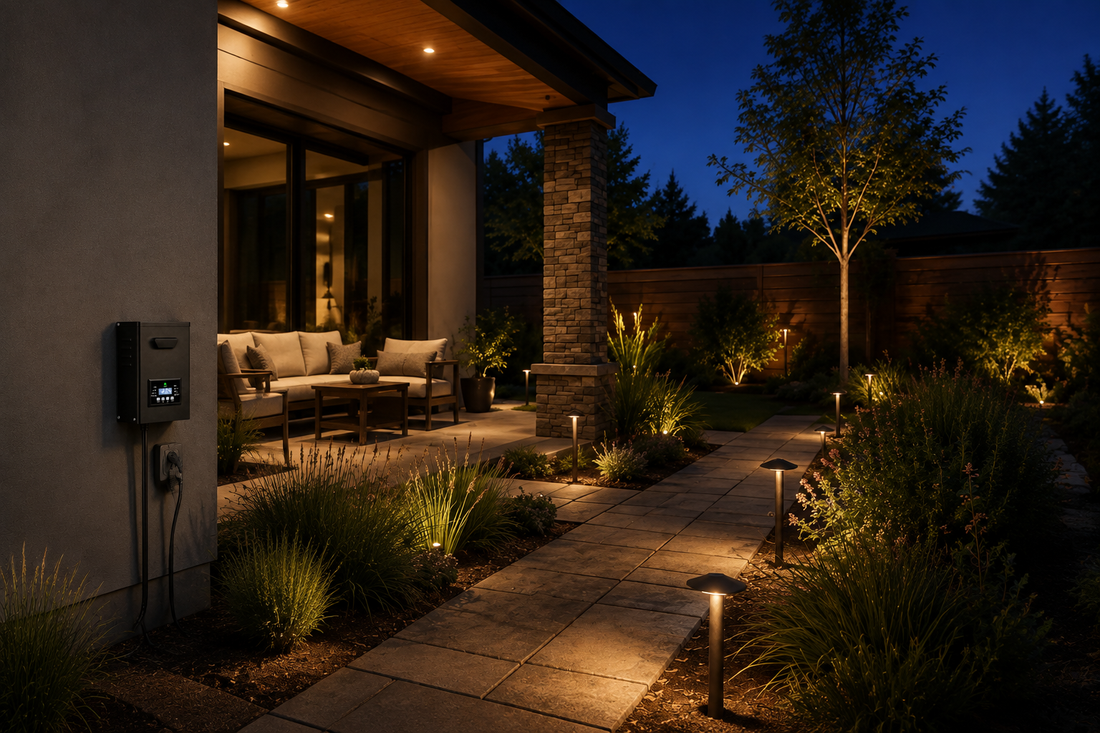

How to Choose the Right Low Voltage Landscape Lighting Transformer
Share
Landscape lighting transformers are the foundation of any low-voltage outdoor lighting system. Selecting the right transformer ensures reliable performance, proper voltage delivery, and long-term system stability. Whether you are illuminating pathways, gardens, patios, or commercial landscapes, understanding transformer capacity and control options is essential.
Step 1: Calculate Your Total Lighting Load
Start by adding the wattage of all lighting fixtures connected to the system. For example, if you install twenty 8W LED fixtures, the total load is 160W. Industry best practice recommends selecting a transformer with at least 20% additional capacity.
| Total Fixture Load | Recommended Transformer |
|---|---|
| Up to 120W | 150W Transformer |
| 120W–180W | 200W Transformer |
| 180W–250W | 300W Transformer |
| 250W–350W | 400W Transformer |
| 350W–450W | 500W Transformer |
| 450W–550W | 600W Transformer |
Step 2: Consider Cable Length and Voltage Drop
Longer wire runs can cause voltage loss, resulting in reduced brightness at distant fixtures. Transformers with multiple output voltage options such as 12V/14V AC or 12V/15V AC help compensate for voltage drop and maintain consistent lighting performance throughout the system.
Step 3: Decide Between Single Zone and Dual Zone Control
Single Zone transformers are ideal for standard residential installations where all fixtures operate together.
Dual Zone transformers provide separate control of two independent lighting circuits. This allows homeowners or contractors to create customized schedules for different landscape areas.
Common examples include:
- Front yard and backyard lighting
- Pathway lighting and accent lighting
- Residential and hospitality lighting zones
Step 4: Choose the Right Control Method
Modern landscape lighting transformers offer automated lighting control features.
Internal Photocell
- Built directly into the transformer.
- Simplifies installation.
- Automatically activates lighting at dusk.
External Photocell
- Mounted separately.
- Allows more flexible placement.
- Ideal when the transformer location receives limited natural light.
Combined timer and photocell functions provide efficient automated operation while reducing energy consumption.
Step 5: Match the Transformer to the Application
Small residential gardens and pathways typically perform well with 150W–250W transformers. Medium-sized outdoor lighting systems often benefit from 300W–400W models, while large estates, commercial properties, and hospitality projects generally require 500W–600W capacity with advanced control options.
Final Thoughts
Choosing the correct low-voltage landscape lighting transformer improves system reliability, lighting consistency, and future expansion flexibility. By considering wattage requirements, voltage compensation, zone control, and automation features, you can build an outdoor lighting system that delivers dependable performance for years to come.
